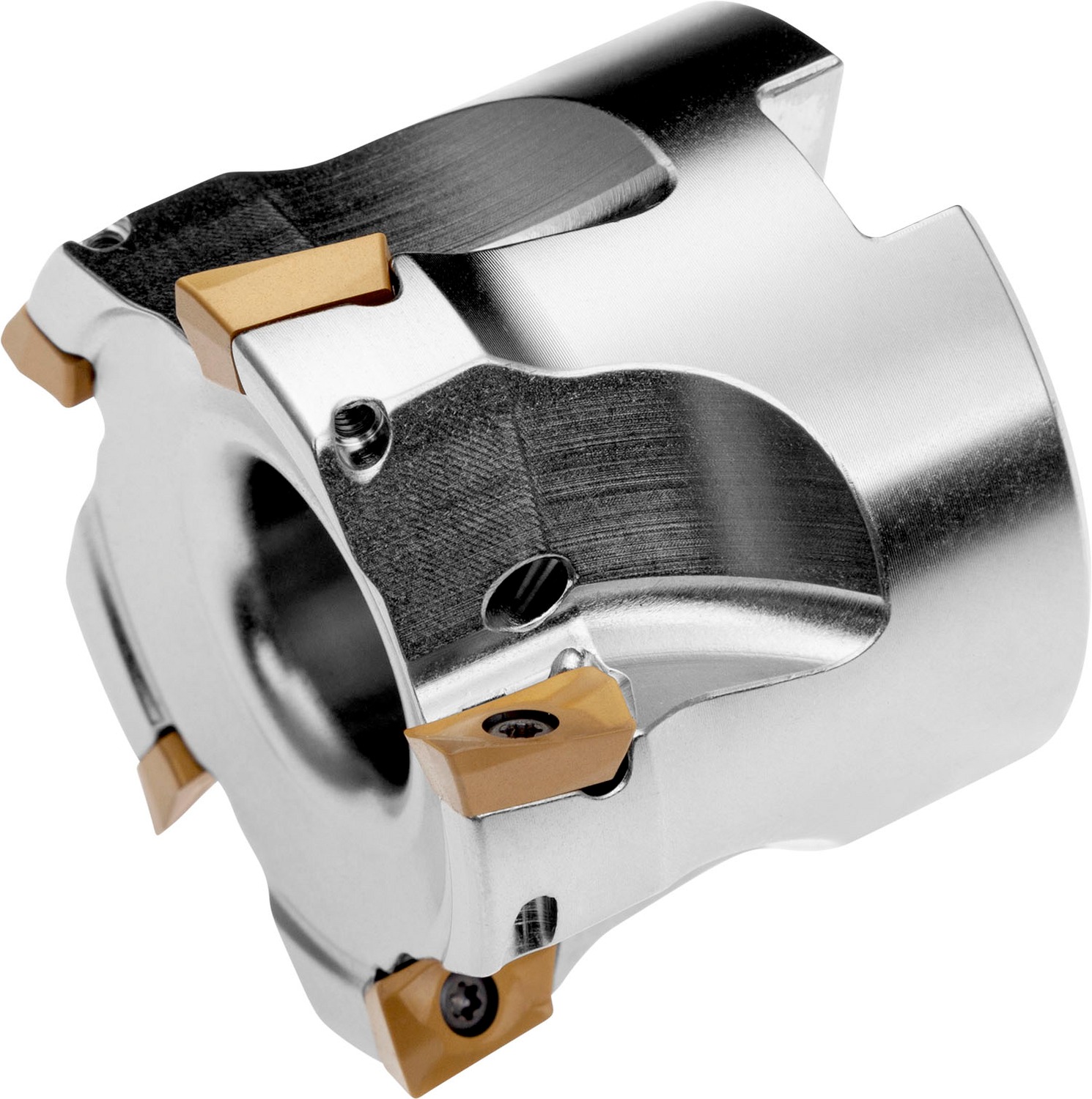

PRAMET 80A10R-S90AD11E-C Milling cutters with clamping by screw

Product Code: 80A10R-S90AD11E-C

$1,150.00$1,045.45 Ex. GST

Product Code: 80A10R-S90AD11E-C SKU 80A10R-S90AD11E-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with positve/negative geometry which utilises 10 of ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 80mm with 90° approach angle and 27mm connection bore according to DIN 8030-A, 50mm protrusion length, through coolant and differential pitch for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 9.0mm

Additional information

Weight 1.1165 kg
barcode
Additional Information

Description: Value
EAN number: 3603602955500
Product number (SAP): 86000552
Ordering code ANSI: 80A10R-S90AD11E-C
Product Line: FORCE AD
Gross weight – grams: 1043
Cutting diameter – millimeter (DC): 80 mm
Connection diameter – millimeter (DCON MS): 27 mm
Counterbore diameter connection bore – millimeter (DCCB): 38 mm
Functional length – millimeter (LF): 50 mm
Connection size code machine side (CZC MS): –
Keyway width – millimeter (KWW): 12.4 mm
Keyway depth – millimeter (KWD): 7 mm
Radial rake angle (GAMF): -6
Axial rake angle (GAMP): 12
Peripheral effective cutting edge count (ZEFP): 10
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 13500
Net weight – grams: 1042.5
Cutter Design: SAD11E
Insert index count (NOI): 10
ISO: 80A10R-S90AD11E-C

Brand

PRAMET
