PRAMET 80J2R190H50-SLSN134-C Milling cutters with clamping by screw

Product Code: 80J2R190H50-SLSN134-C

$4,475.35$4,068.50 Ex. GST

Product Code: 80J2R190H50-SLSN134-C SKU 80J2R190H50-SLSN134-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

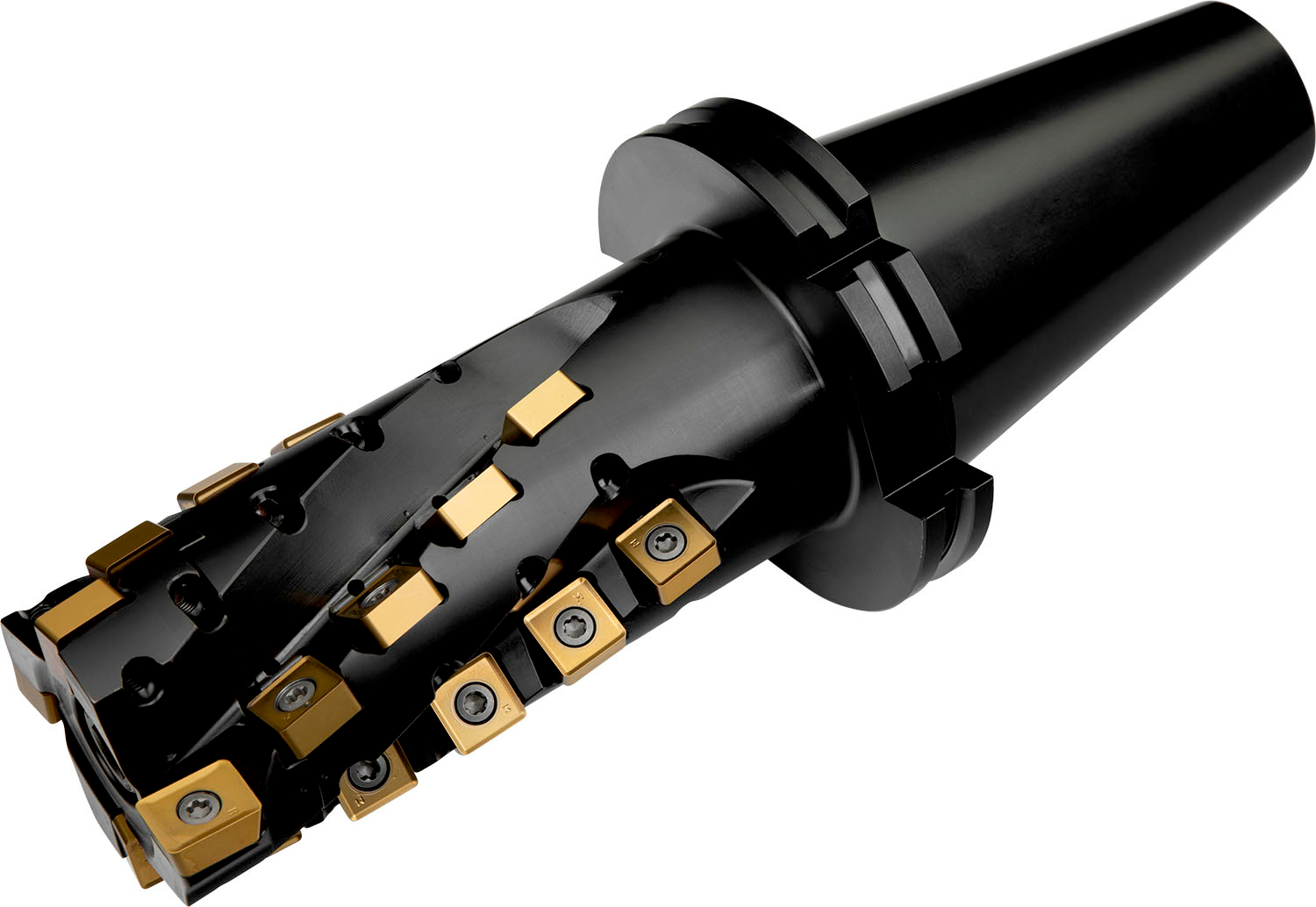

Shoulder mill with extended flute with double negative geometry which utilises 2 of LNET 1606.. and 26 SN.. 1305.. double-sided inserts, cutting diameter 80mm with 90° approach angle and SK 50 taper shank according to ISO/DIS 7388-1, 134mm functional and 292mm overall length, through coolant for deep shoulder milling and deep slot milling with a maximum depth of cut of 134mm

Additional information

Weight 4.345 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602957771
Product number (SAP): 86001795
Ordering code ANSI: 80J2R190H50-SLSN134-C
Product Line: ROUGH SN
Gross weight – grams: 7450
Cutting diameter – millimeter (DC): 80 mm
Overall length – millimeter (OAL): 292 mm
Depth of cut maximum – millimeter (APMX): 134 mm
Functional length – millimeter (LF): 190 mm
Radial rake angle (GAMF): -9
Axial rake angle (GAMP): -10
Connection size code machine side (CZC MS): 50
Flute count (NOF): 4
Number of inserts LN for helicall mills: 2
Number of SN inserts for helical cutters: 26
Rotational speed maximum (RPMX): 7500
Net weight – grams: 7450
Insert index count (NOI): 28
ISO: 80J2R190H50-SLSN134-C

Brand

PRAMET
