PRAMET 80J4R165G50-SAD16E108-C Milling cutters with clamping by screw

Product Code: 80J4R165G50-SAD16E108-C

$3,483.98$3,167.25 Ex. GST

Product Code: 80J4R165G50-SAD16E108-C SKU 80J4R165G50-SAD16E108-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

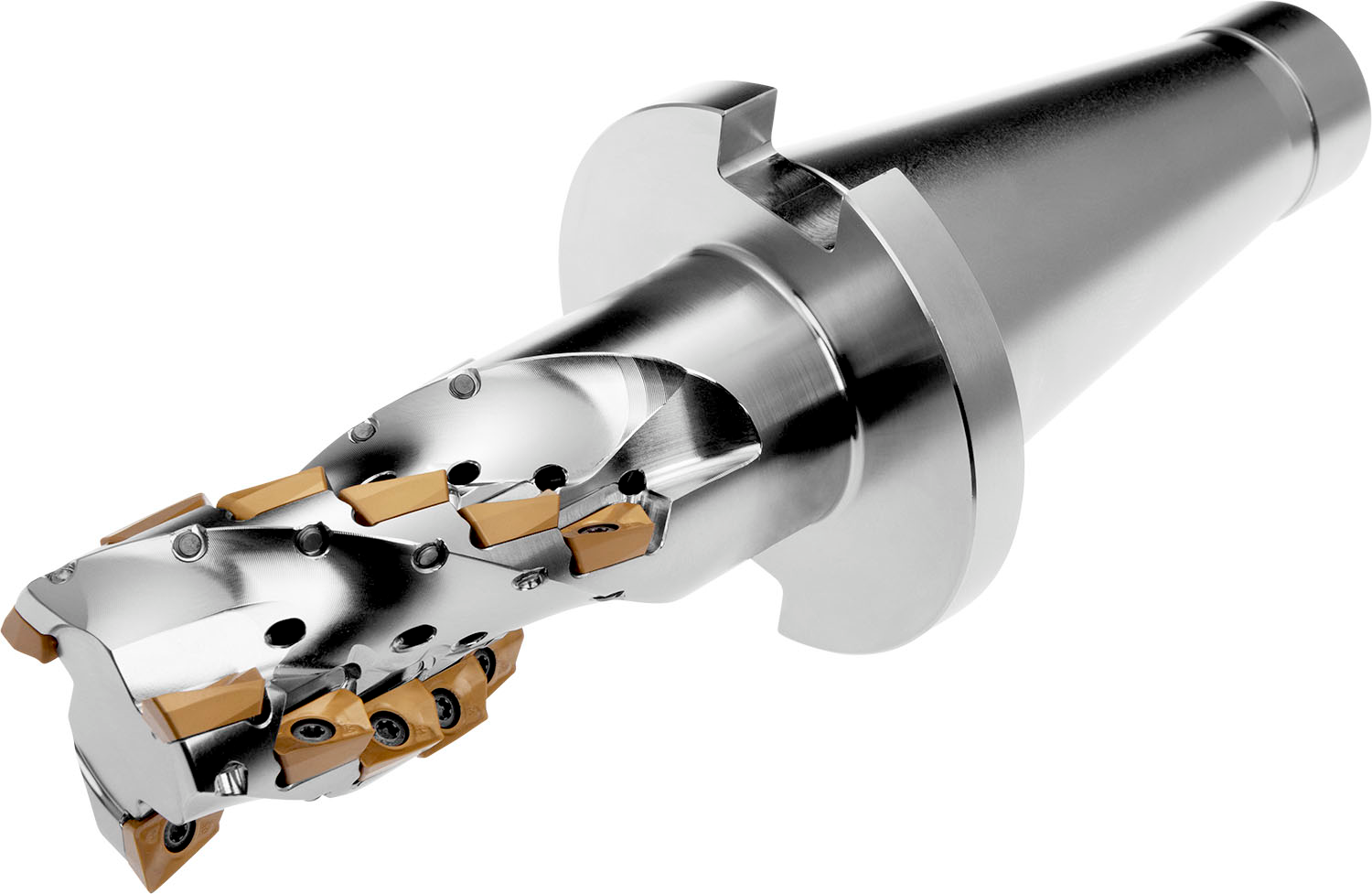

Shoulder mill with extended flute with positve/negative geometry which utilises 32 of ADMX 16 or ADEX 16 single-sided inserts, cutting diameter 80mm with 90° approach angle and SK 50 taper shank according to ISO 297, 108mm functional and 292mm overall length, through coolant and differential pitch for deep shoulder milling and deep slot milling with a maximum depth of cut of 108mm

Additional information

Weight 3.3825 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603603072152
Product number (SAP): 86020397
Ordering code ANSI: 80J4R165G50-SAD16E108-C
Product Line: FORCE AD
Gross weight – grams: 7514
Cutting diameter – millimeter (DC): 80 mm
Overall length – millimeter (OAL): 292 mm
Functional length – millimeter (LF): 165 mm
Depth of cut maximum – millimeter (APMX): 108 mm
Connection size code machine side (CZC MS): 50
Radial rake angle (GAMF): -6
Axial rake angle (GAMP): 12
Flute count (NOF): 4
Number of inserts (helical mills): 32
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 10400
Net weight – grams: 7514
Insert index count (NOI): 32
ISO: 80J4R165G50-SAD16E108-C

Brand

PRAMET
