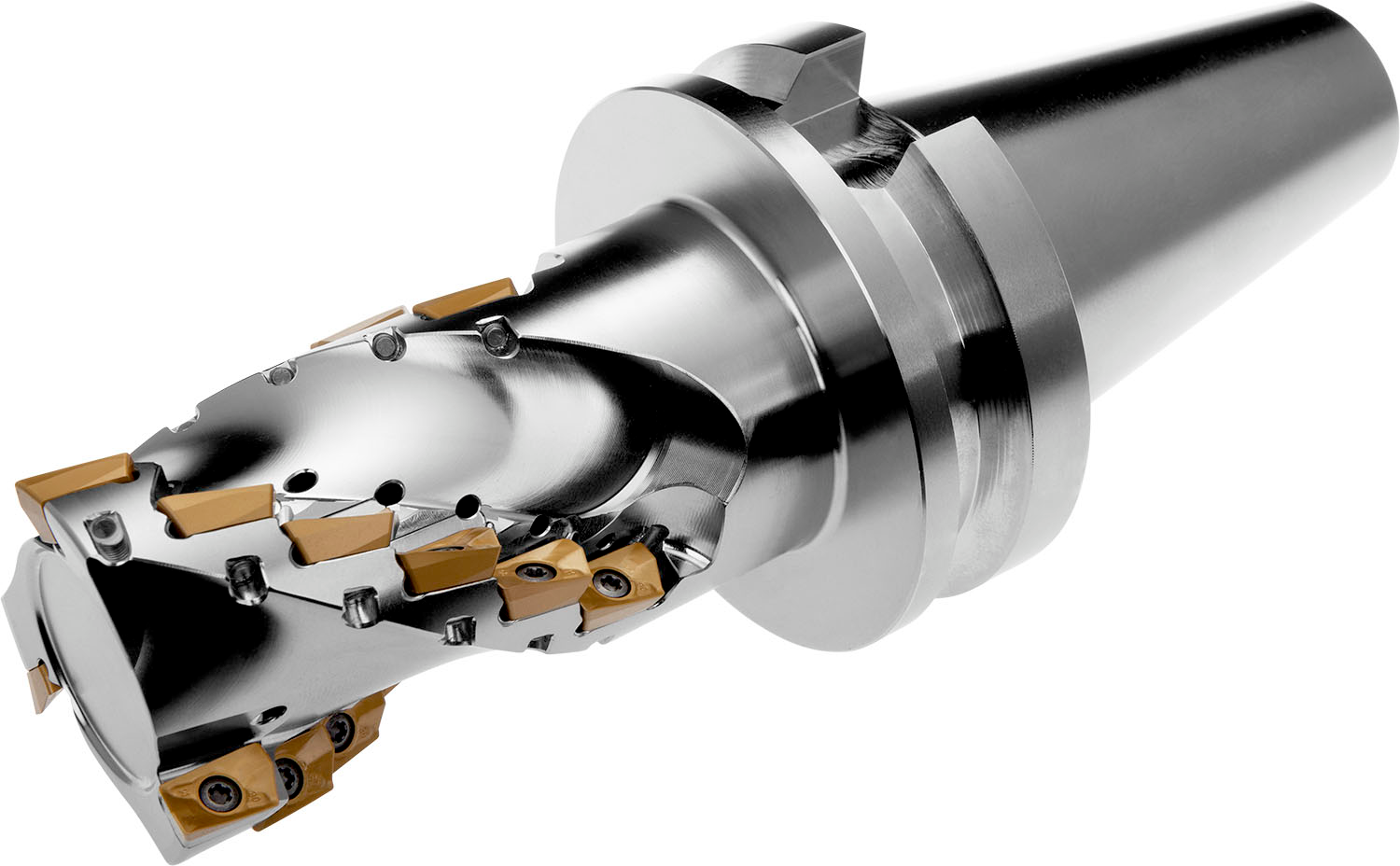

PRAMET 80J4R165X50-SAD16E95-C Milling cutters with clamping by screw

Product Code: 80J4R165X50-SAD16E95-C

$2,923.14$2,657.40 Ex. GST

Product Code: 80J4R165X50-SAD16E95-C SKU 80J4R165X50-SAD16E95-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with extended flute with positve/negative geometry which utilises 28 of ADMX 16 or ADEX 16 single-sided inserts, cutting diameter 80mm with 90° approach angle and BT 50 taper shank according to JIS B 6339, 95mm functional and 267mm overall length, through coolant and differential pitch for deep shoulder milling and deep slot milling with a maximum depth of cut of 95mm

Additional information

Weight 2.838 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603603072176
Product number (SAP): 86020394
Ordering code ANSI: 80J4R165X50-SAD16E95-C
Product Line: FORCE AD
Gross weight – grams: 7841
Cutting diameter – millimeter (DC): 80 mm
Overall length – millimeter (OAL): 267 mm
Functional length – millimeter (LF): 165 mm
Depth of cut maximum – millimeter (APMX): 95 mm
Connection size code machine side (CZC MS): 50
Radial rake angle (GAMF): -6
Axial rake angle (GAMP): 12
Flute count (NOF): 4
Number of inserts (helical mills): 28
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 10400
Net weight – grams: 7841
Insert index count (NOI): 28
ISO: 80J4R165X50-SAD16E95-C
