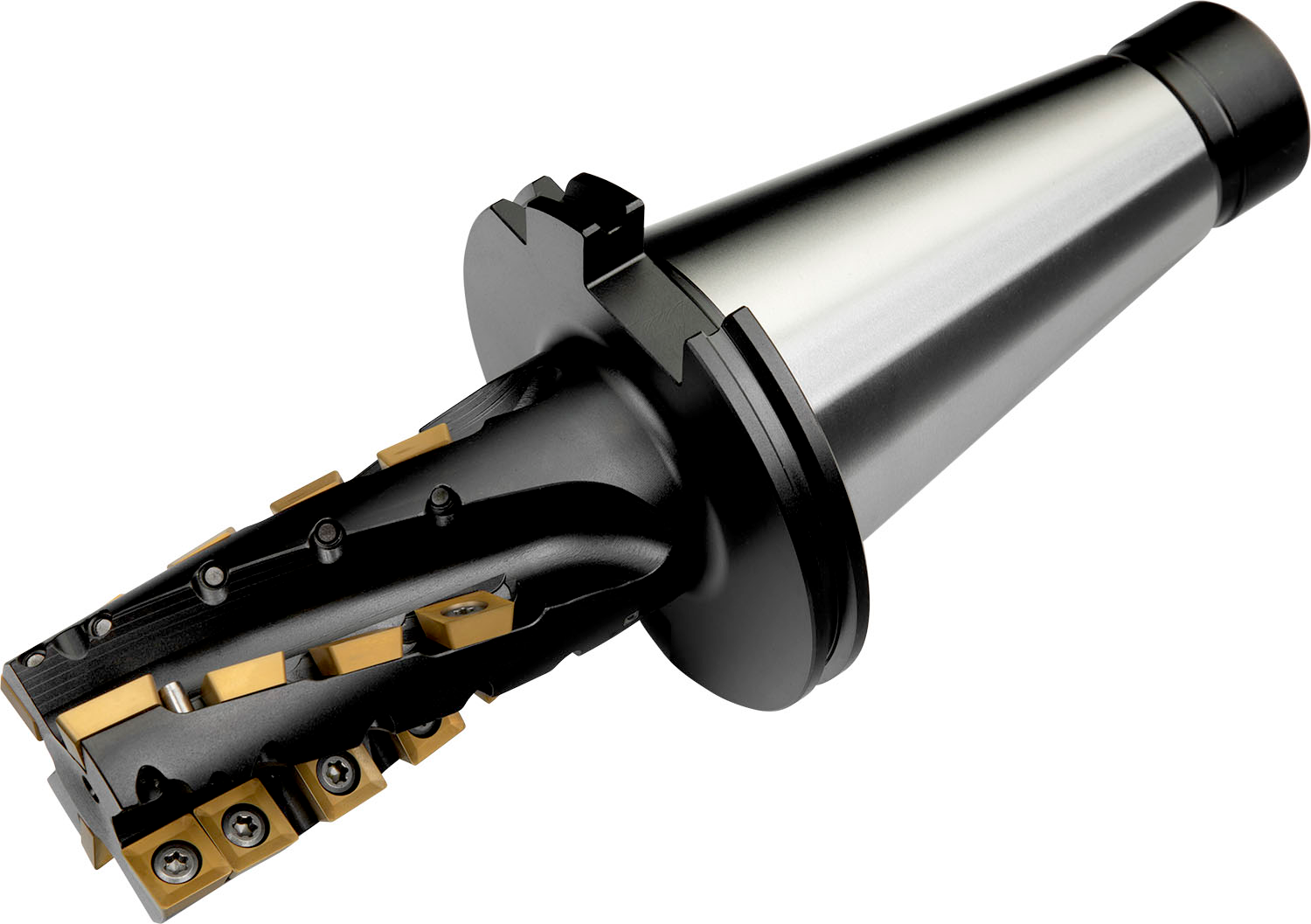

PRAMET 80J6R151X50-SSAP95-A Milling cutters with clamping by screw

Description: Value
EAN number: 3603602931078
Product number (SAP): 84002950
Ordering code ANSI: 80J6R151X50-SSAP95-A
Gross weight – grams: 6200
Cutting diameter – millimeter (DC): 80 mm
Overall length – millimeter (OAL): 275 mm
Depth of cut maximum – millimeter (APMX): 95 mm
Functional length – millimeter (LF): 151 mm
Radial rake angle (GAMF): 0
Axial rake angle (GAMP): 7
Connection size code machine side (CZC MS): 50
Flute count (NOF): 6
Number of AP inserts for helical mills: 3
Number of SP inserts for helical mill: 30
Rotational speed maximum (RPMX): 7500
Net weight – grams: 6200
Insert index count (NOI): 33
ISO: 80J6R151X50-SSAP95-A
