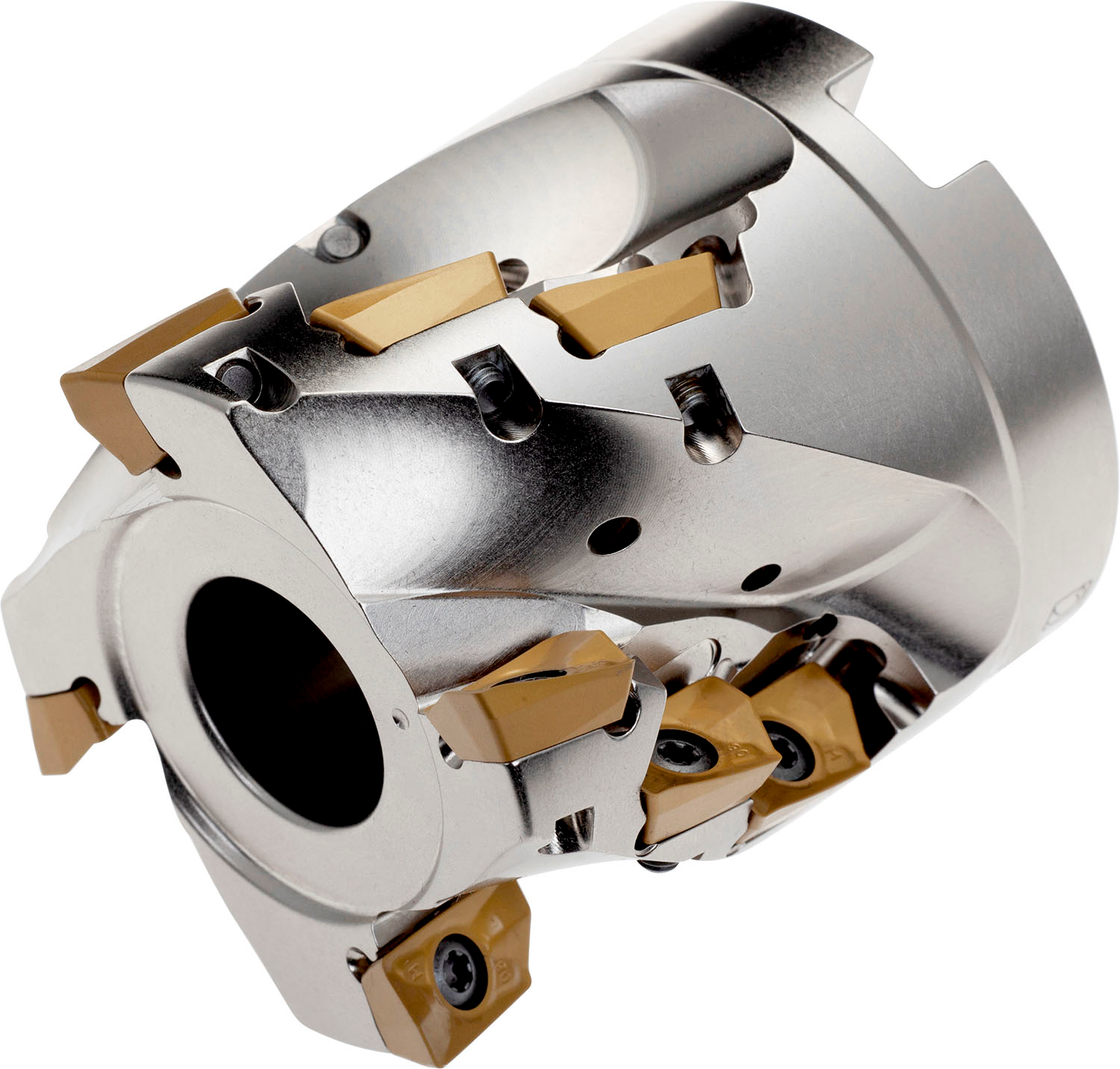

PRAMET 80T04R-S90AD16E55-C Milling cutters with clamping by screw

Description: Value
EAN number: 3603603072183
Product number (SAP): 86020421
Ordering code ANSI: 80T04R-S90AD16E55-C
Product Line: FORCE AD
Gross weight – grams: 2703.7
Cutting diameter – millimeter (DC): 80 mm
Connection diameter – millimeter (DCON MS): 32 mm
Counterbore diameter connection bore – millimeter (DCCB): 30 mm
Functional length – millimeter (LF): 85 mm
Depth of cut maximum – millimeter (APMX): 55 mm
Connection bore depth – millimeter (CBDP): 25 mm
Connection size code machine side (CZC MS): –
Radial rake angle (GAMF): -6
Axial rake angle (GAMP): 12
Flute count (NOF): 4
Number of inserts (helical mills): 16
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 10400
Net weight – grams: 2563.2
Insert index count (NOI): 16
ISO: 80T04R-S90AD16E55-C
