PRAMET A08H-SCLCL 06

Product Code: A08H-SCLCL 06

$211.87$192.61 Ex. GST

Product Code: A08H-SCLCL 06 SKU A08H-SCLCL 06 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

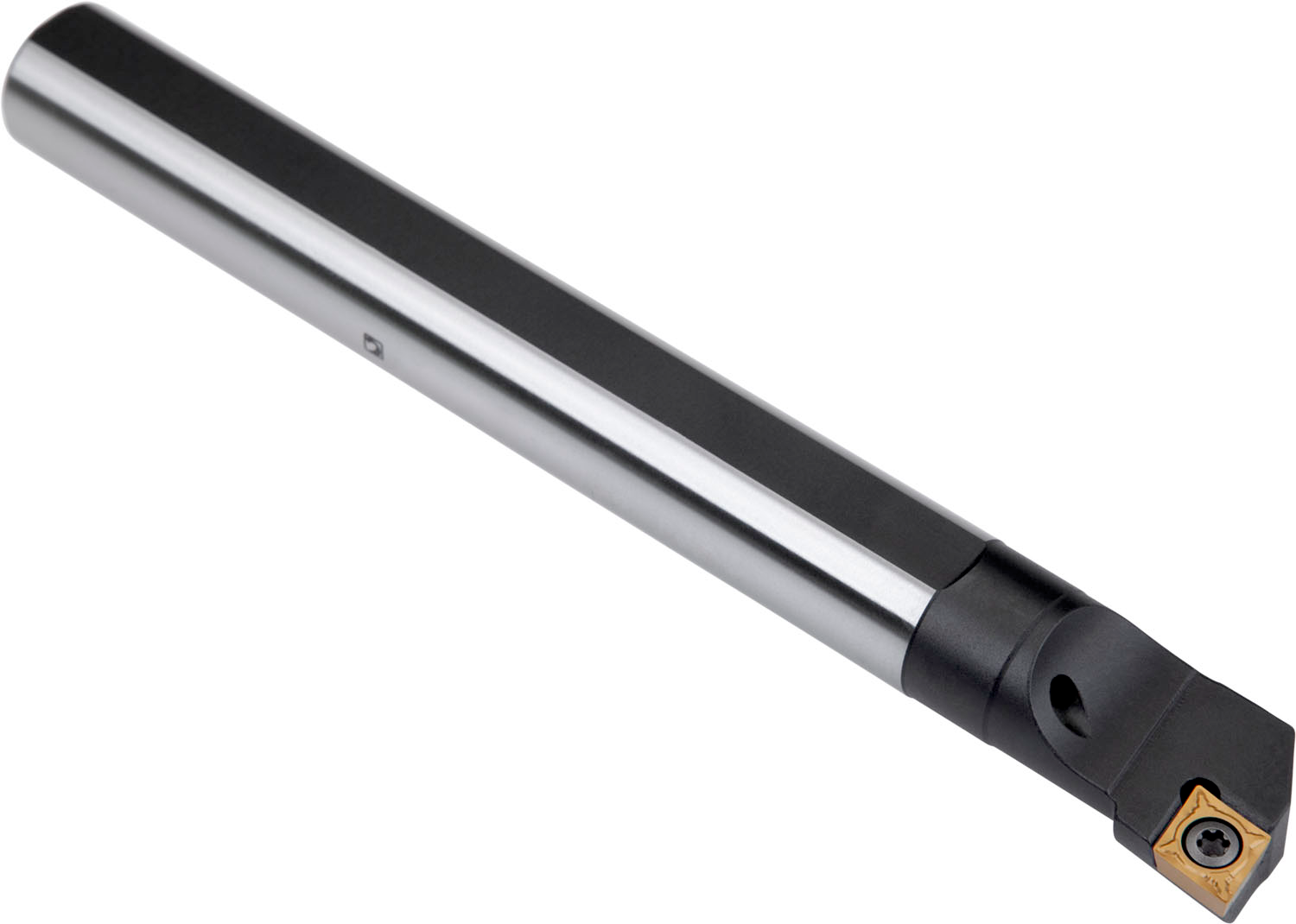

Screw clamp boring bar for holding a 80° rhombus positive insert with an inscribed circle diameter of 6.35mm, 2.38mm thick (ISO designation CC.. 0602.. ), left hand 95° side and end cutting with off-set shank, steel with coolant hole, 8mm diameter x 100mm long for taper boring and longitudinal boring with and without shoulder

Additional information

Weight 0.2057 kg
barcode
Additional Information

Description: Value
EAN number: 3603602963741
Product number (SAP): 86006613
Ordering code ANSI: A08H-SCLCL 06
Gross weight – grams: 51.7
Connection diameter – millimeter (DCON MS): 8 mm
Minimum bore diameter – millimeter (DMIN): 11 mm
Functional width – millimeter (WF): 6 mm
Shank height – millimeter (H): 7.2 mm
Shank width – millimeter (B): 7.6 mm
Functional length – millimeter (LF): 100 mm
Inclination angle (LAMS): -13
Orthogonal rake angle (GAMO): 0
Net weight – grams: 51.7
Insert size: 06
ISO: A08H-SCLCL06

Brand

PRAMET
