PRAMET A08H-STFCL 06 Turning holders internal

Product Code: A08H-STFCL 06

$211.87$192.61 Ex. GST

Product Code: A08H-STFCL 06 SKU A08H-STFCL 06 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

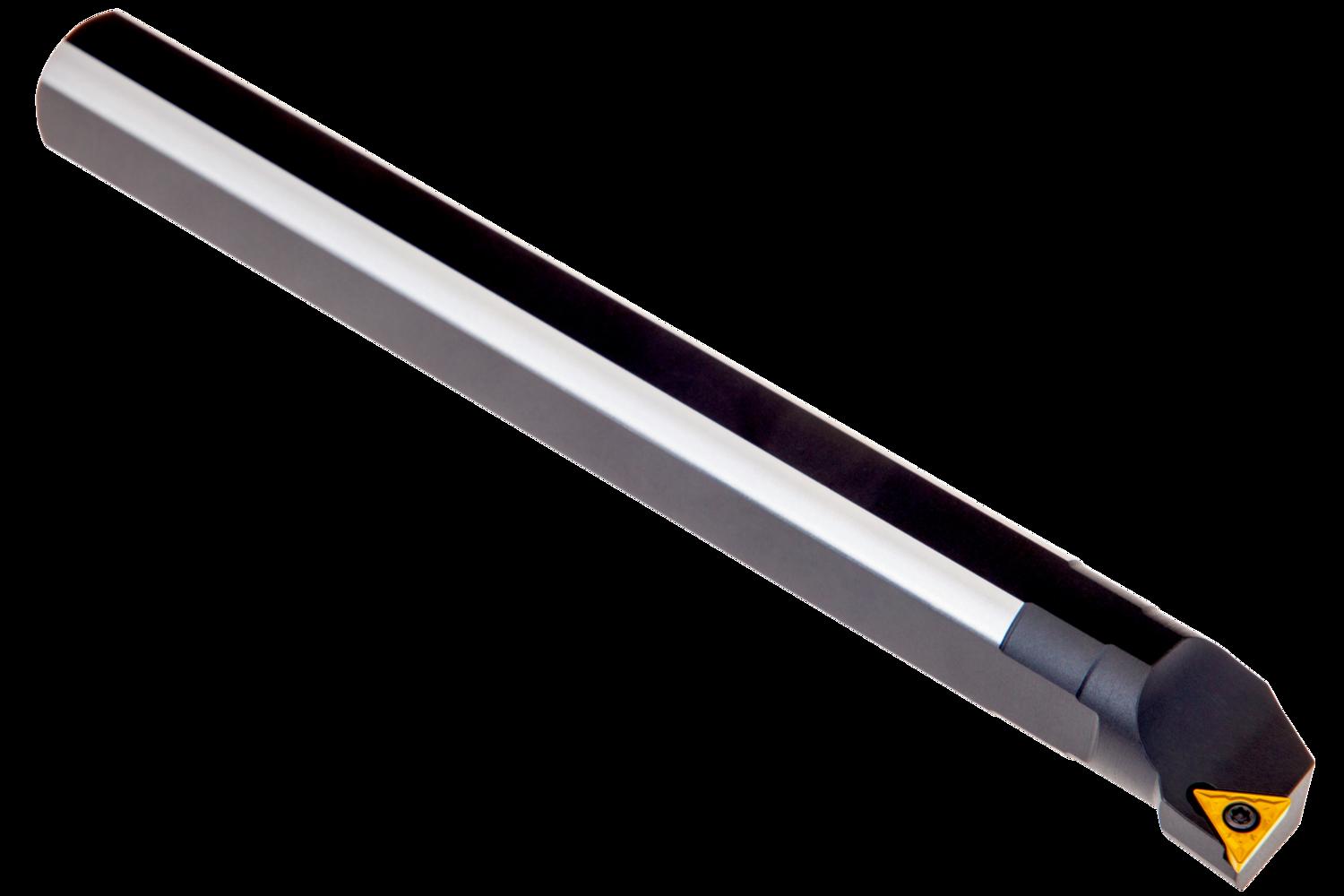

Screw clamp boring bar for holding a triangular positive insert with an inscribed circle diameter of 3.97mm, 1.98mm thick (ISO designation TC.. 06T1.. ), left hand 90° end cutting with off-set shank, steel with coolant hole, 8mm diameter x 100mm long for taper boring and longitudinal boring with and without shoulder

Additional information

Weight 0.2057 kg
barcode
Additional Information

Description: Value
EAN number: 3603602962591
Product number (SAP): 86005574
Ordering code ANSI: A08H-STFCL 06
Gross weight – grams: 53.6
Connection diameter – millimeter (DCON MS): 8 mm
Minimum bore diameter – millimeter (DMIN): 11 mm
Functional width – millimeter (WF): 5.9 mm
Shank height – millimeter (H): 7 mm
Functional length – millimeter (LF): 100 mm
Inclination angle (LAMS): -10
Orthogonal rake angle (GAMO): 0
Net weight – grams: 50
Insert size: 06
ISO: A08H-STFCL06

Brand

PRAMET
