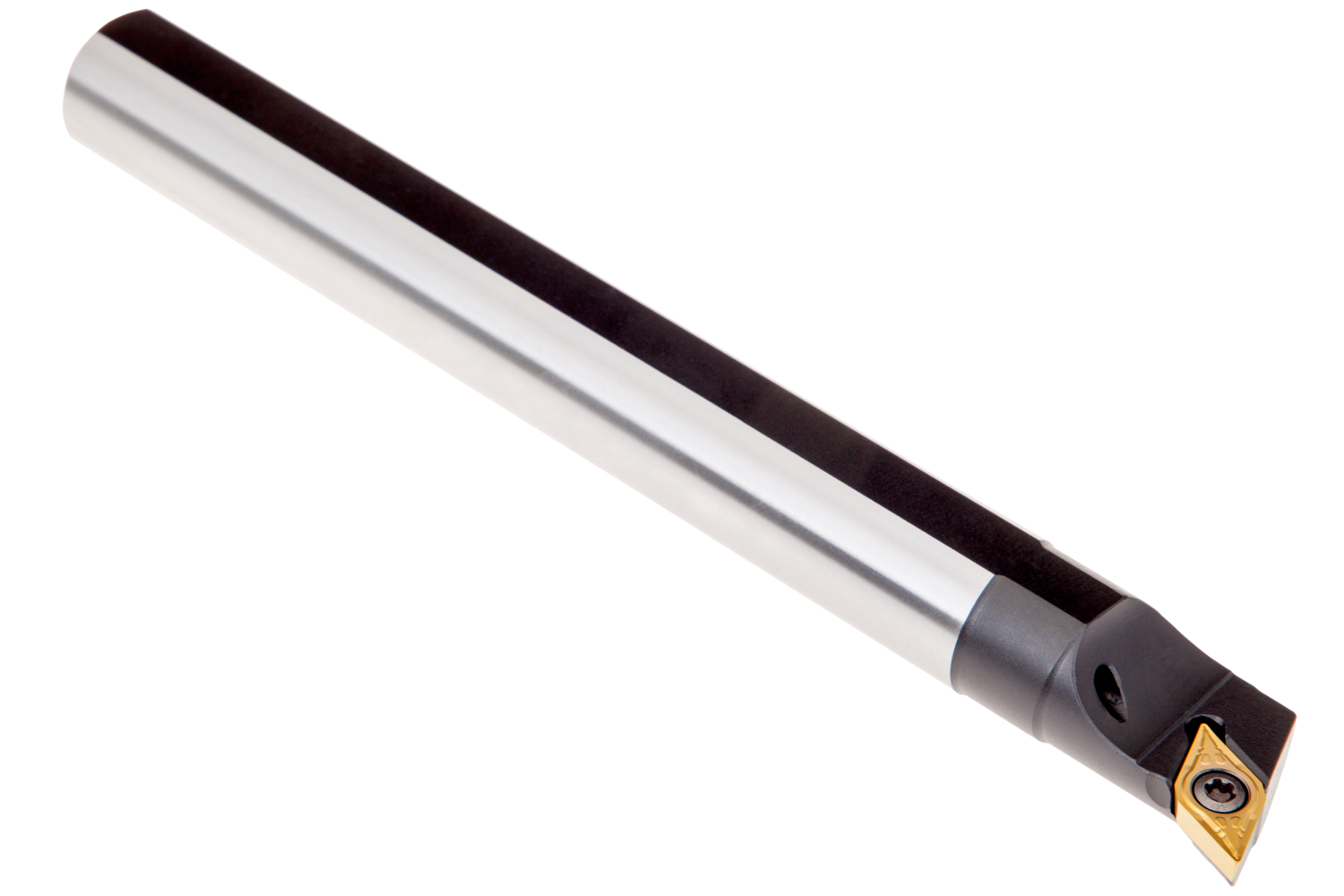

PRAMET A10H-SDQCL 07 Internal Boring Bar

Product Code: A10H-SDQCL 07

$211.87$192.61 Ex. GST

Product Code: A10H-SDQCL 07 SKU A10H-SDQCL 07 Categories , ,
PRAMET A10H-SDQCL 07 Internal Boring Bar

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Screw clamp boring bar for holding a 55° rhombus positive insert with an inscribed circle diameter of 6.35mm, 2.38mm thick (ISO designation DC.. 0702.. ), left hand 107°30′ end cutting with off-set shank, steel with coolant hole, 10mm diameter x 100mm long for taper boring and longitudinal boring with and without shoulder

Additional information

Weight 0.2057 kg
barcode
Additional Information

Description: Value
EAN number: 3603602923738
Product number (SAP): 84001453
Ordering code ANSI: A10H-SDQCL 07
Gross weight – grams: 71.2
Connection diameter – millimeter (DCON MS): 10 mm
Minimum bore diameter – millimeter (DMIN): 13 mm
Functional width – millimeter (WF): 7 mm
Shank height – millimeter (H): 9 mm
Functional length – millimeter (LF): 100 mm
Coolant entry diameter – millimeter (CND): 4 mm
Inclination angle (LAMS): -10
Orthogonal rake angle (GAMO): 0
Net weight – grams: 60
Insert size: 07
ISO: A10H-SDQCL07

Brand

PRAMET
