PRAMET A10K-SCLCL 08

Product Code: A10K-SCLCL 08

$211.87$192.61 Ex. GST

Product Code: A10K-SCLCL 08 SKU A10K-SCLCL 08 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

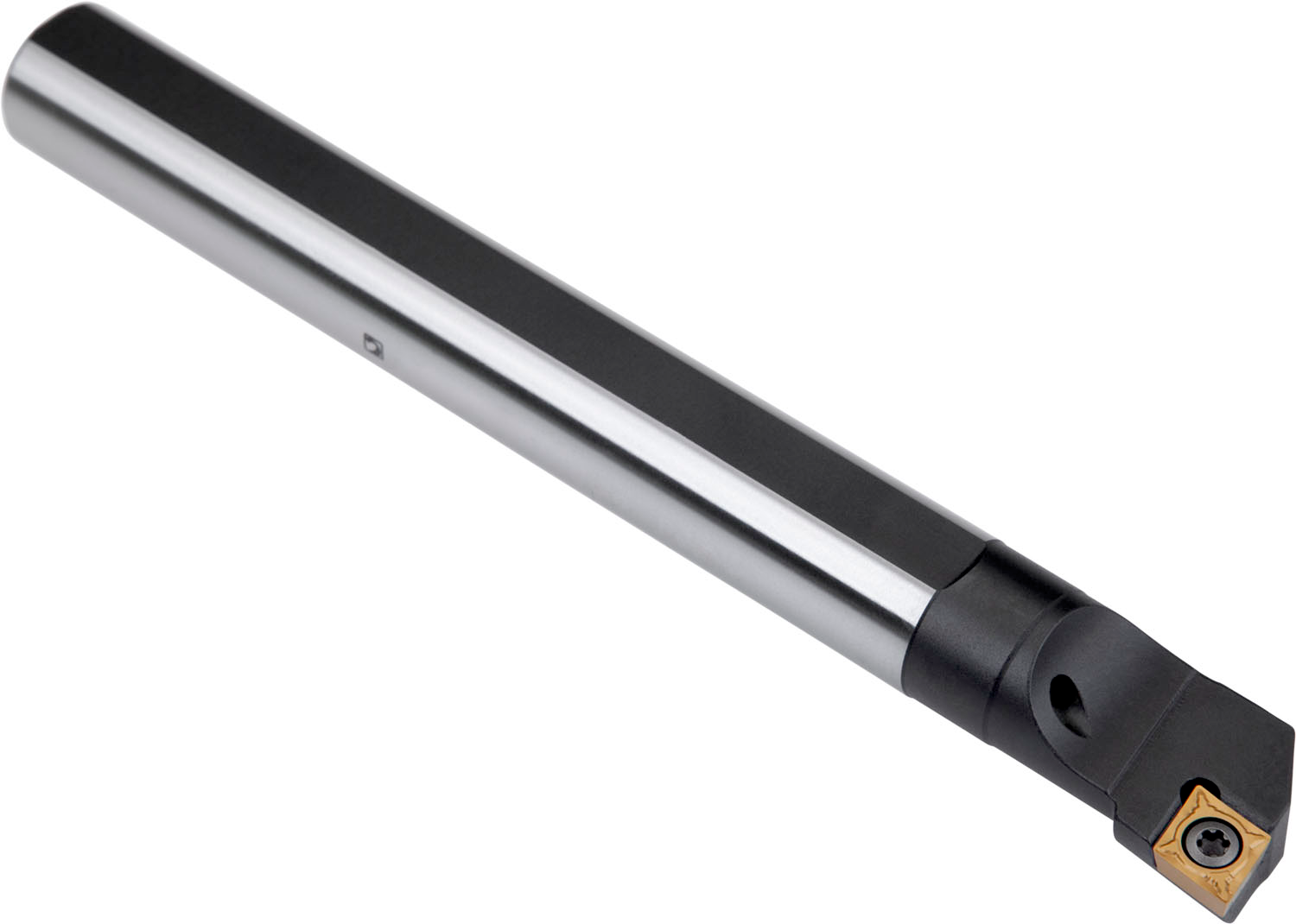

Screw clamp boring bar for holding a 80° rhombus positive insert with an inscribed circle diameter of 7.94mm, 3.18mm thick (ISO designation CC.. 0803.. ), left hand 95° side and end cutting with off-set shank, steel with coolant hole, 10mm diameter x 125mm long for taper boring and longitudinal boring with and without shoulder

Additional information

Weight 0.2057 kg
barcode
Additional Information

Description: Value
EAN number: 3603602962416
Product number (SAP): 86005519
Ordering code ANSI: A10K-SCLCL 08
Gross weight – grams: 90.5
Connection diameter – millimeter (DCON MS): 10 mm
Minimum bore diameter – millimeter (DMIN): 12 mm
Functional width – millimeter (WF): 6 mm
Shank height – millimeter (H): 9 mm
Shank width – millimeter (B): 9.5 mm
Functional length – millimeter (LF): 125 mm
Coolant entry diameter – millimeter (CND): 4 mm
Inclination angle (LAMS): -14
Orthogonal rake angle (GAMO): 0
Net weight – grams: 0.9
Insert size: 08
ISO: A10K-SCLCL08

Brand

PRAMET
