PRAMET A10K-STFCR 09 Turning holders internal

Product Code: A10K-STFCR 09

$211.87$192.61 Ex. GST

Product Code: A10K-STFCR 09 SKU A10K-STFCR 09 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

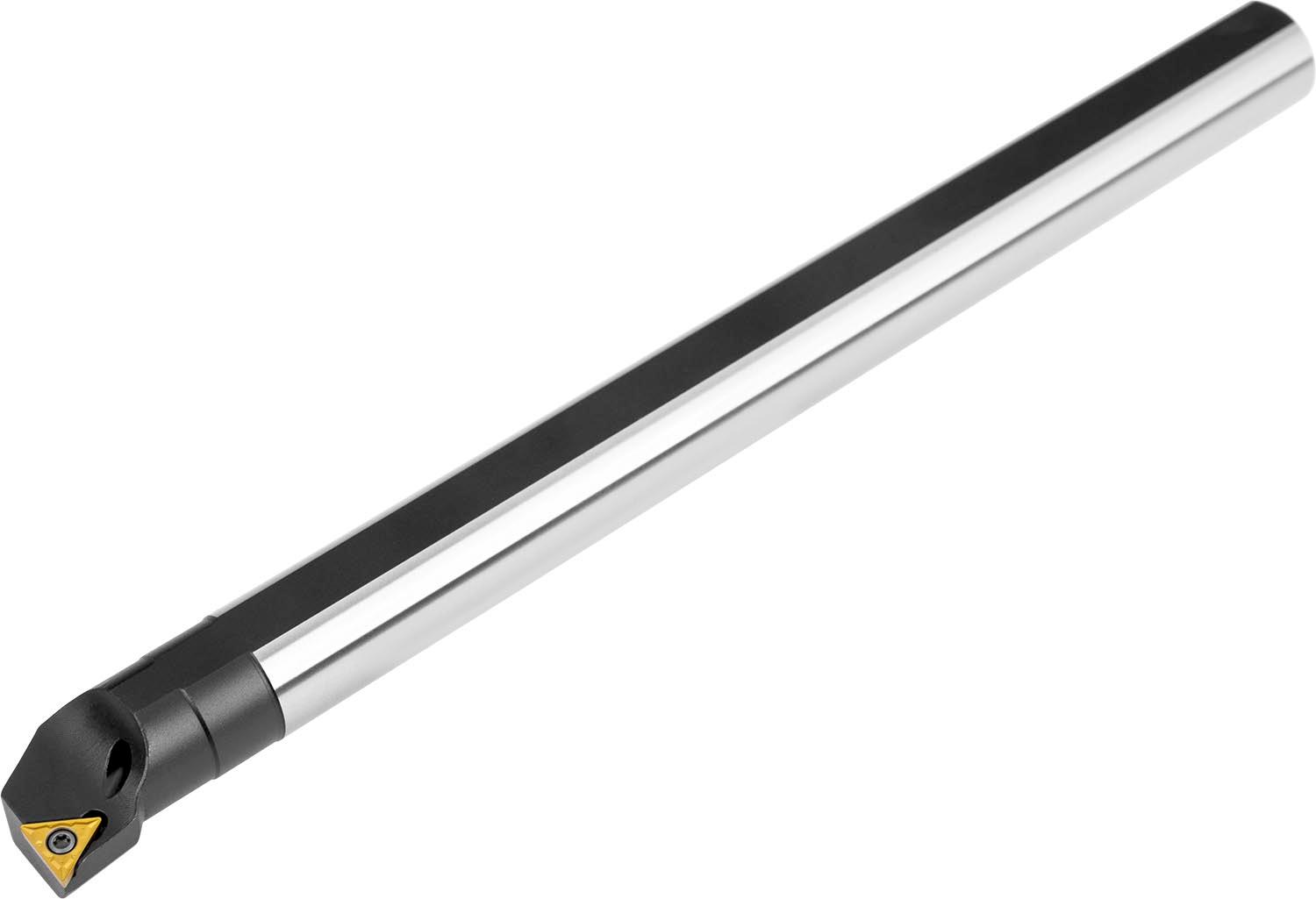

Screw clamp boring bar for holding a triangular positive insert with an inscribed circle diameter of 5.56mm, 2.38mm thick (ISO designation TC.. 0902.. ), right hand 90° end cutting with off-set shank, steel with coolant hole, 10mm diameter x 125mm long for taper boring and longitudinal boring with and without shoulder

Additional information

Weight 0.2057 kg
barcode
Additional Information

Description: Value
EAN number: 3603602962621
Product number (SAP): 86005577
Ordering code ANSI: A10K-STFCR 09
Gross weight – grams: 75.9
Connection diameter – millimeter (DCON MS): 10 mm
Minimum bore diameter – millimeter (DMIN): 13 mm
Functional width – millimeter (WF): 7 mm
Shank height – millimeter (H): 9 mm
Functional length – millimeter (LF): 125 mm
Inclination angle (LAMS): -9
Orthogonal rake angle (GAMO): 0
Net weight – grams: 60
Insert size: 09
ISO: A10K-STFCR09

Brand

PRAMET
