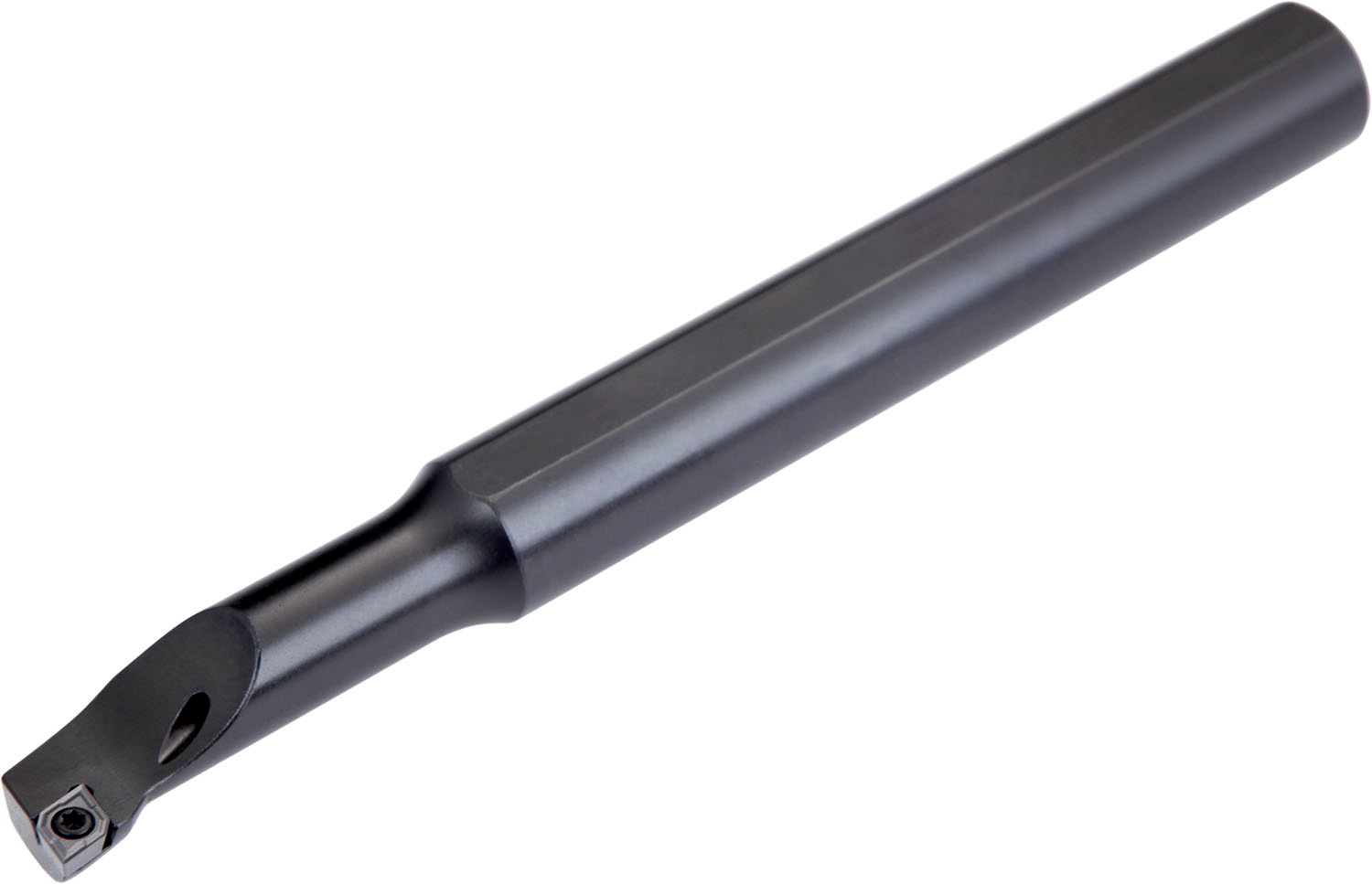

PRAMET A1216M-SELPR 05 Internal Boring bar

Product Code: A1216M-SELPR 05

$211.87$192.61 Ex. GST

Product Code: A1216M-SELPR 05 SKU A1216M-SELPR 05 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Screw clamp boring bar for holding a 75° rhombus positive insert with an inscribed circle diameter of 5.56mm, 2.38mm thick (ISO designation EP.. 0502.. ), right hand 95° side and end cutting with off-set shank, steel with coolant hole, 12mm diameter x 150mm long for taper boring and longitudinal boring with and without shoulder

Additional information

Weight 0.2057 kg
barcode
Additional Information

Description: Value
EAN number: 3603602960917
Product number (SAP): 86004171
Ordering code ANSI: A1216M-SELPR 05
Gross weight – grams: 192.4
Connection diameter – millimeter (DCON MS): 16 mm
Minimum bore diameter – millimeter (DMIN): 16 mm
Body diameter – millimeter (BD): 12 mm
Functional width – millimeter (WF): 9 mm
Functional length – millimeter (LF): 150 mm
Head length – millimeter (LH): 40 mm
Inclination angle (LAMS): -2
Orthogonal rake angle (GAMO): 0
Net weight – grams: 180
Insert size: 05
ISO: A1216M-SELPR05

Brand

PRAMET
