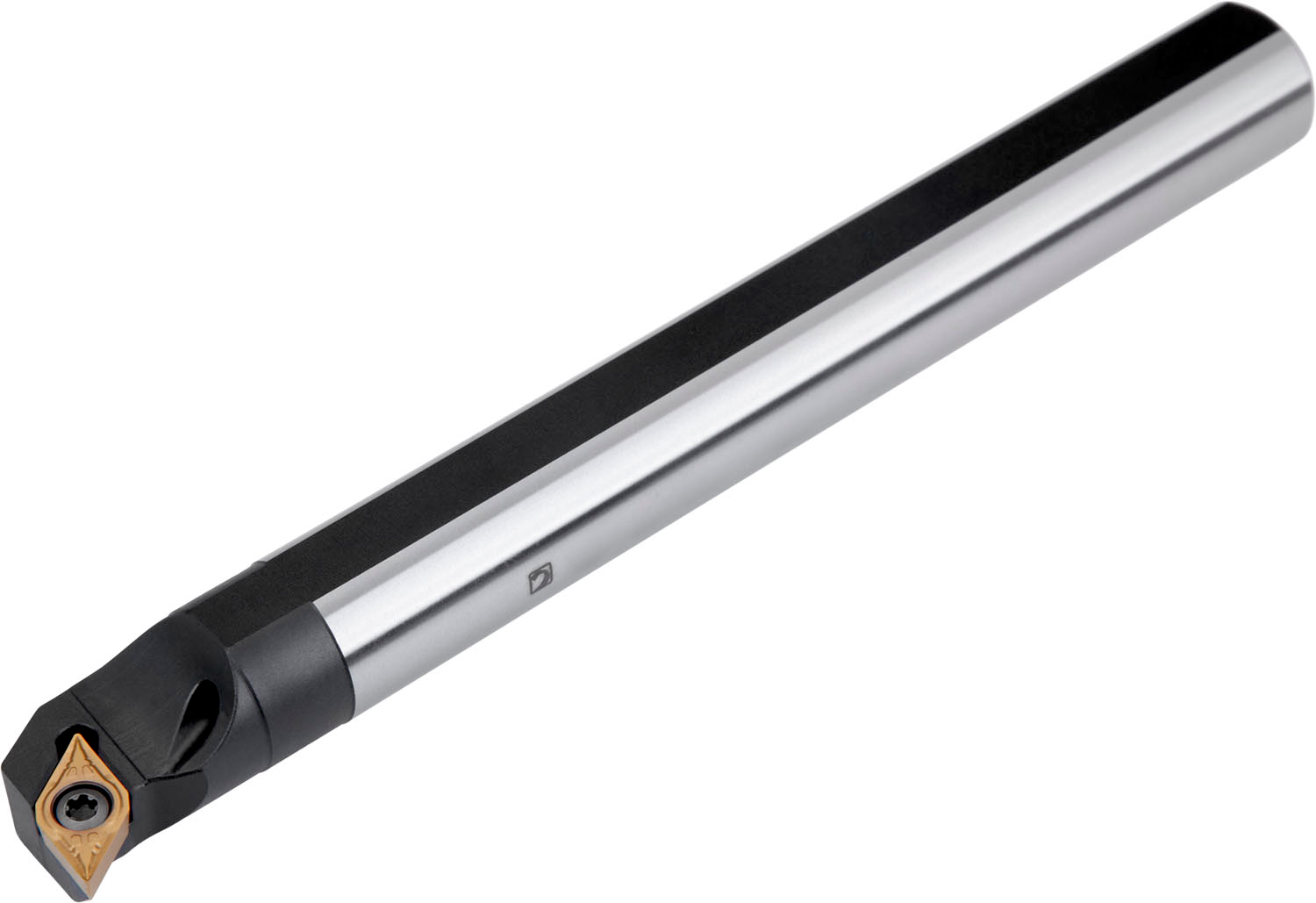

PRAMET A12K-SDUCR 07 Internal Boring Bar

Product Code: A12K-SDUCR 07

$211.87$192.61 Ex. GST

Product Code: A12K-SDUCR 07 SKU A12K-SDUCR 07 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Screw clamp boring bar for holding a 55° rhombus positive insert with an inscribed circle diameter of 6.35mm, 2.38mm thick (ISO designation DC.. 0702.. ), right hand 93° end cutting with off-set shank, steel with coolant hole, 12mm diameter x 125mm long for taper boring, single and multi-directional copy boring and longitudinal boring with and without shoulder

Additional information

Weight 0.2057 kg
barcode
Additional Information

Description: Value
EAN number: 3603602924698
Product number (SAP): 84001696
Ordering code ANSI: A12K-SDUCR 07
Gross weight – grams: 120.5
Connection diameter – millimeter (DCON MS): 12 mm
Minimum bore diameter – millimeter (DMIN): 16 mm
Functional width – millimeter (WF): 9 mm
Shank height – millimeter (H): 11 mm
Functional length – millimeter (LF): 125 mm
Coolant entry diameter – millimeter (CND): 5 mm
Inclination angle (LAMS): -7
Orthogonal rake angle (GAMO): 0
Net weight – grams: 118.5
Insert size: 07
ISO: A12K-SDUCR07

Brand

PRAMET
