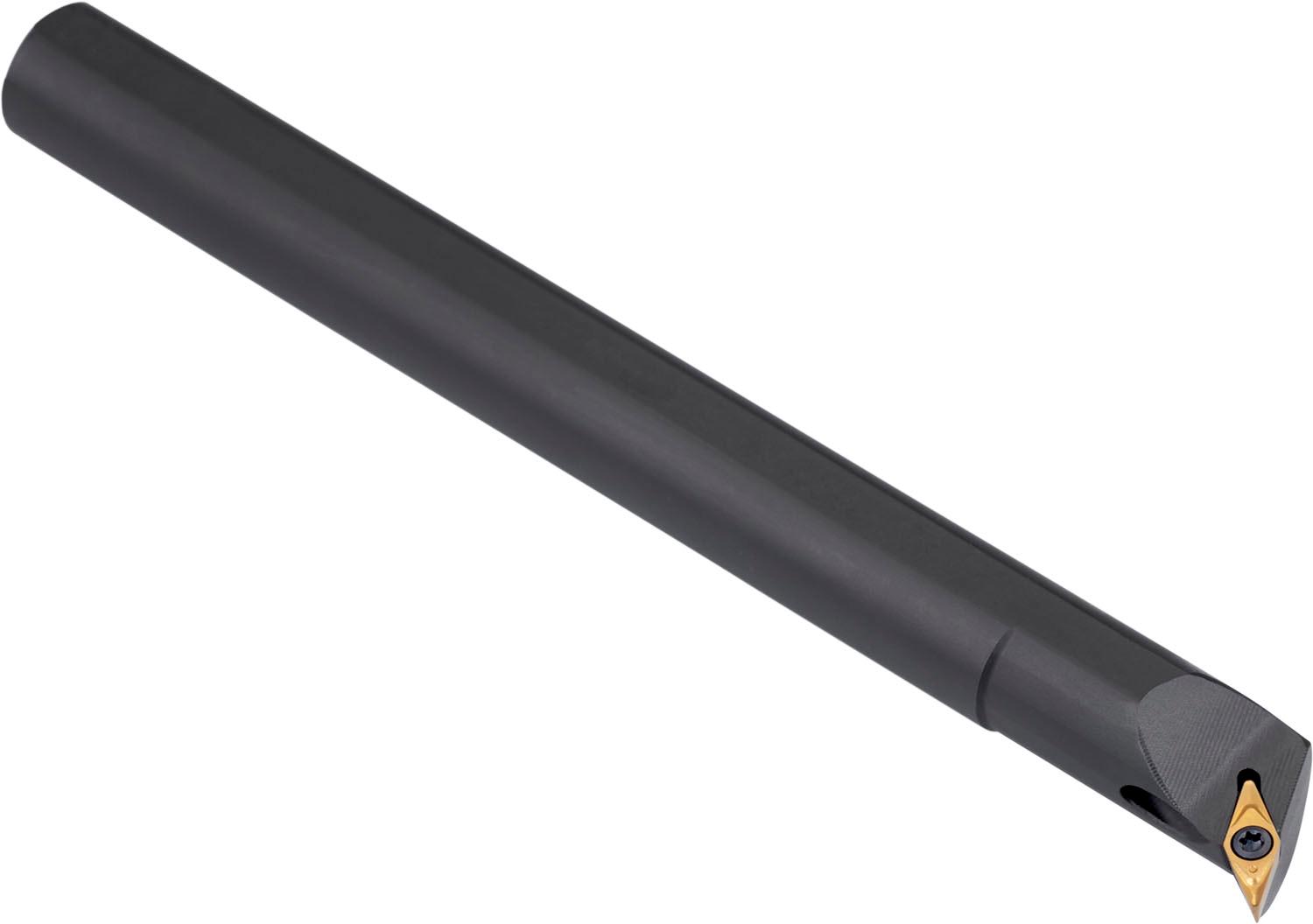

PRAMET A16M-SVXCL 07 Turning holders internal

Description: Value
EAN number: 3603602961044
Product number (SAP): 86004234
Ordering code ANSI: A16M-SVXCL 07
Gross weight – grams: 198
Connection diameter – millimeter (DCON MS): 16 mm
Minimum bore diameter – millimeter (DMIN): 17.5 mm
Functional width – millimeter (WF): 11 mm
Shank height – millimeter (H): 15 mm
Functional length – millimeter (LF): 150 mm
Functional height – millimeter (HF): 7.5 mm
Head length – millimeter (LH): 36 mm
Functional width 2 – millimeter (WF2): 3 mm
Axial rake angle (GAMP): -6
Net weight – grams: 198
Insert size: 07
ISO: A16M-SVXCL07
