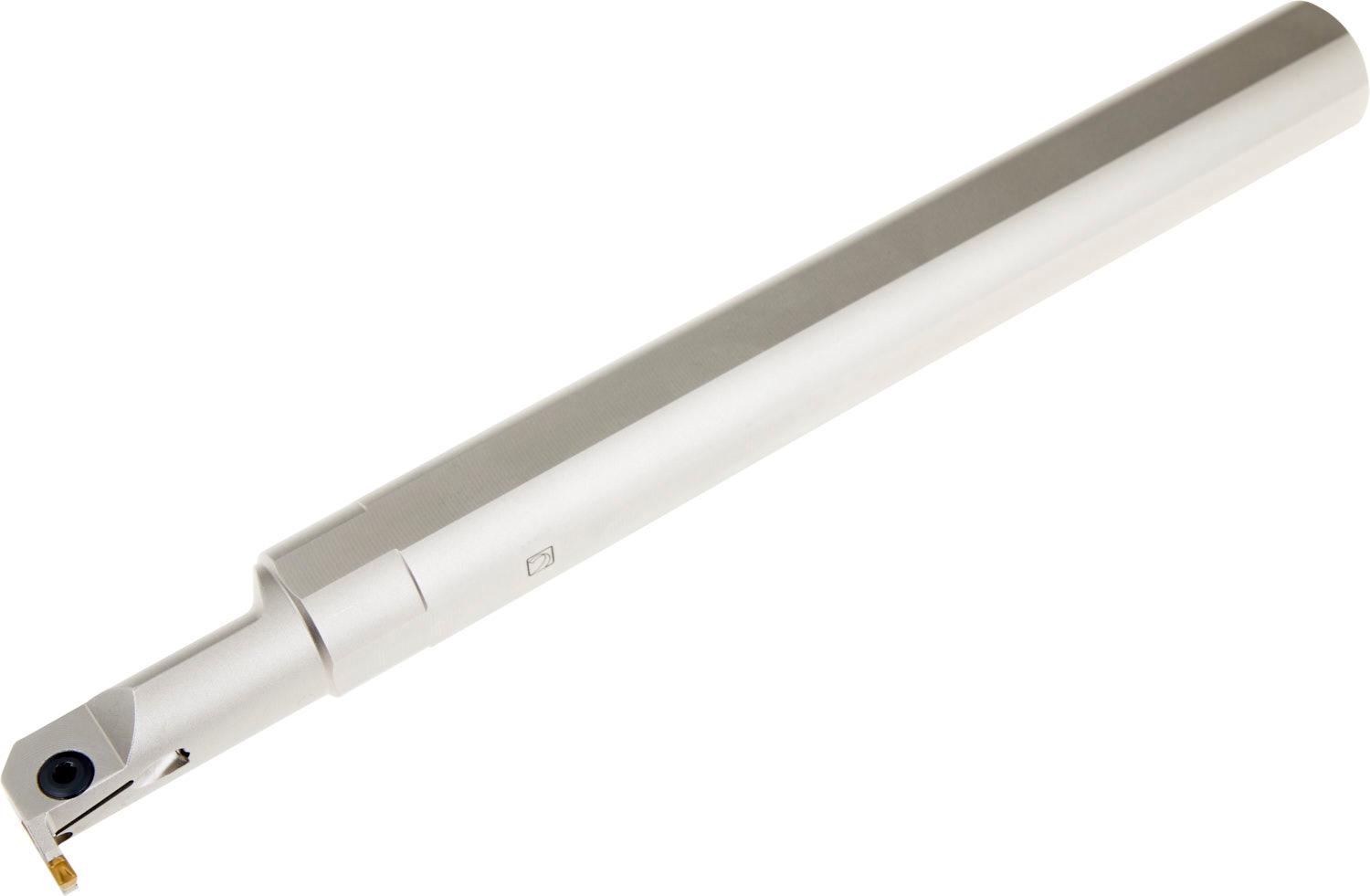

PRAMET A16Q-GGER 0313 Turning holders for parting, grooving and copy turning

Description

Top clamp grooving bar for holding a 12.6mm long double or single ended insert with 3mm cutting width (designation LCM. 0313.. ), right handed with insert perpendicular to the shank for a maximum grooving depth of 3mm, shank diameter 16mm and tool length 180mm for internal grooving and turning

Additional information

Weight	0.3443 kg
barcode
Additional Information	Description: Value EAN number: 3603602934994 Product number (SAP): 84004169 Ordering code ANSI: A16Q-GGER 0313 Gross weight – grams: 276.6 Connection diameter – millimeter (DCON MS): 16 mm Functional height – millimeter (HF): 7.5 mm Shank height – millimeter (H): 15 mm Shank width – millimeter (B): 15.5 mm Functional length – millimeter (LF): 180 mm Head length – millimeter (LH): 25 mm Cutting width – millimeter (CW): 3 mm Cutting depth maximum – millimeter (CDX): 3 mm Minimum bore diameter – millimeter (DMIN): 16 mm Net weight – grams: 255 ISO: A16Q-GGER0313

PRAMET A16Q-GGER 0313 Turning holders for parting, grooving and copy turning

Need Technical Advice?

Description

Additional information

Brand

PRAMET
