PRAMET A16R-SVQCL 13 Turning holders internal

Product Code: A16R-SVQCL 13

$222.07$201.88 Ex. GST

Product Code: A16R-SVQCL 13 SKU A16R-SVQCL 13 Categories , ,
PRAMET A16R-SVQCL 13 Turning holders internal

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

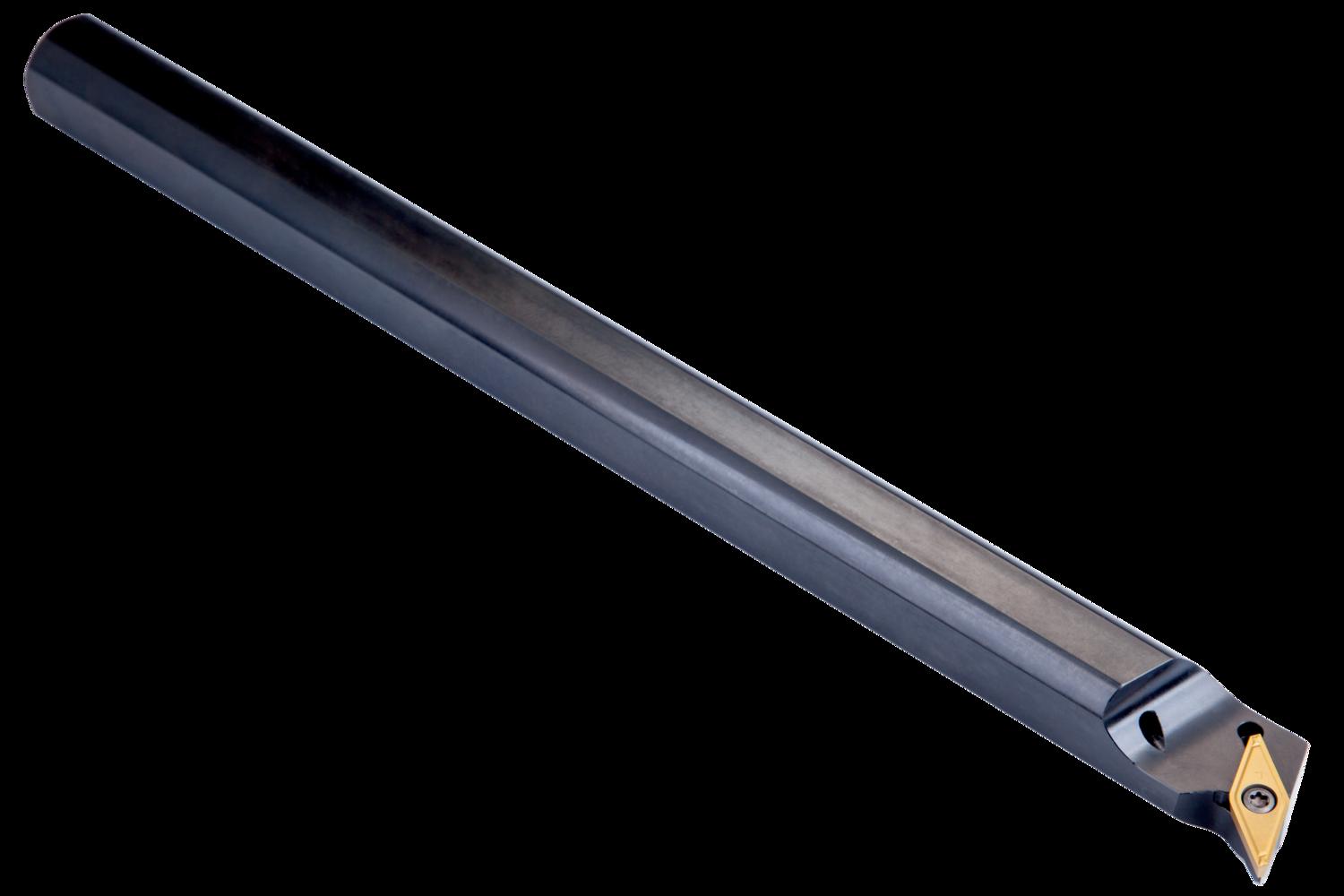

Screw clamp boring bar for holding a 35° rhombus positive insert with an inscribed circle diameter of 7.94mm, 3.18mm thick (ISO designation VC.. 1303.. ), left hand 107°30′ end cutting with off-set shank, steel with coolant hole, 16mm diameter x 200mm long for single and multi-directional copy boring

Additional information

Weight 0.2156 kg
barcode
Additional Information

Description: Value
EAN number: 3603602962652
Product number (SAP): 86005591
Ordering code ANSI: A16R-SVQCL 13
Gross weight – grams: 290
Connection diameter – millimeter (DCON MS): 16 mm
Minimum bore diameter – millimeter (DMIN): 21 mm
Functional width – millimeter (WF): 11 mm
Shank height – millimeter (H): 15 mm
Shank width – millimeter (B): 15 mm
Functional length – millimeter (LF): 200 mm
Inclination angle (LAMS): -6
Orthogonal rake angle (GAMO): 0
Net weight – grams: 290
Insert size: 13
ISO: A16R-SVQCL13

Brand

PRAMET
