PRAMET A20Q-SWLCL 06 Turning holders internal

Product Code: A20Q-SWLCL 06

$261.72$237.93 Ex. GST

Product Code: A20Q-SWLCL 06 SKU A20Q-SWLCL 06 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

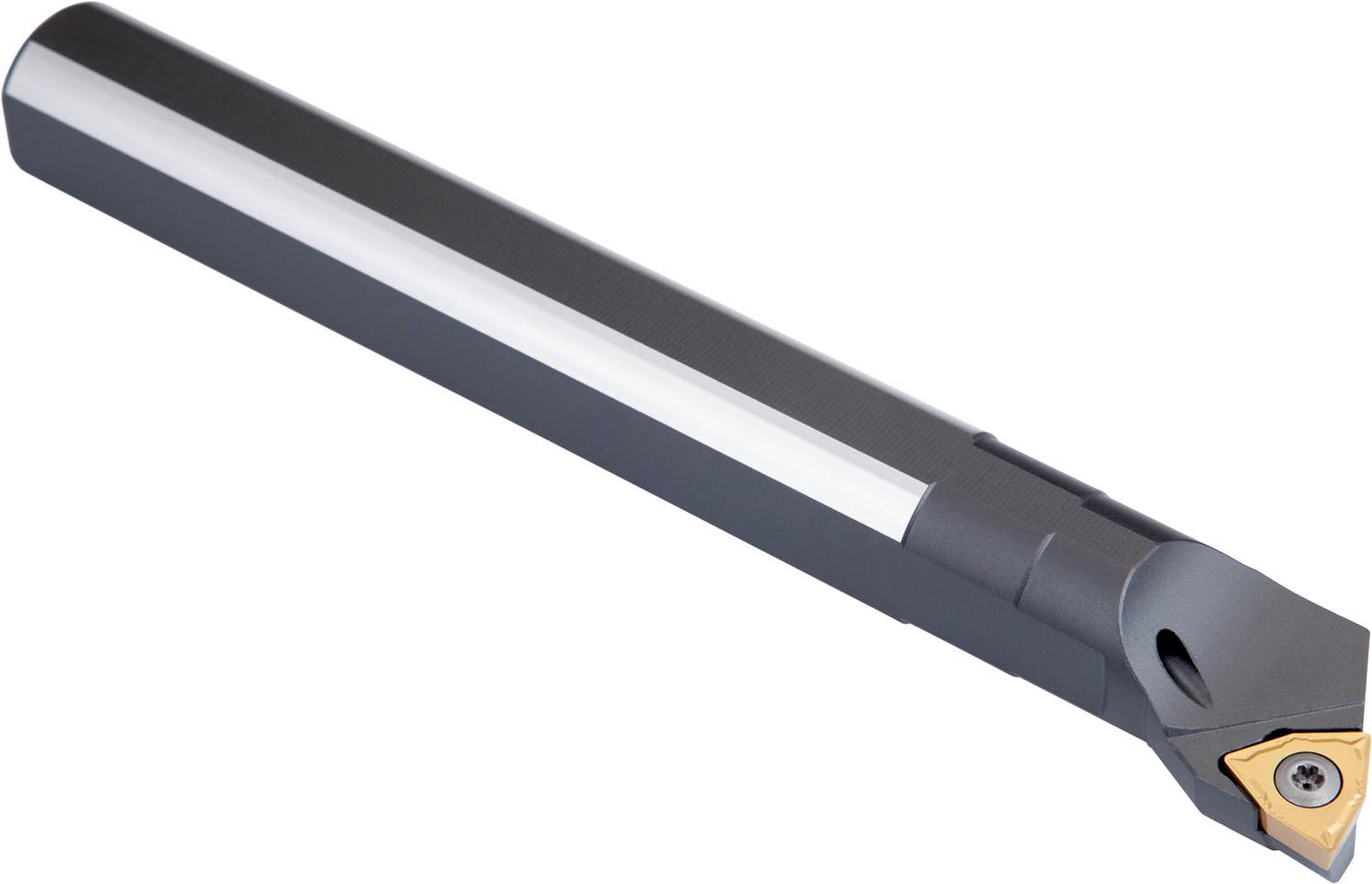

Screw clamp boring bar for holding a 80° trigon positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation WC.. 06T3.. ), left hand 95° side and end cutting with off-set shank, steel with coolant hole, 20mm diameter x 180mm long for taper boring and longitudinal boring with and without shoulder

Additional information

Weight 0.2541 kg
barcode
Additional Information

Description: Value
EAN number: 3603602963666
Product number (SAP): 86006605
Ordering code ANSI: A20Q-SWLCL 06
Gross weight – grams: 369.5
Connection diameter – millimeter (DCON MS): 20 mm
Minimum bore diameter – millimeter (DMIN): 25 mm
Functional width – millimeter (WF): 13 mm
Shank height – millimeter (H): 18 mm
Shank width – millimeter (B): 18.5 mm
Functional length – millimeter (LF): 180 mm
Inclination angle (LAMS): -7
Orthogonal rake angle (GAMO): 0
Net weight – grams: 370
Insert size: 06
ISO: A20Q-SWLCL06

Brand

PRAMET
