PRAMET A20R-GGFR 0313 Turning holders for parting, grooving and copy turning

Product Code: A20R-GGFR 0313

$382.95$348.14 Ex. GST

Product Code: A20R-GGFR 0313 SKU A20R-GGFR 0313 Categories , ,
PRAMET A20R-GGFR 0313 Turning holders for parting, grooving and copy turning

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

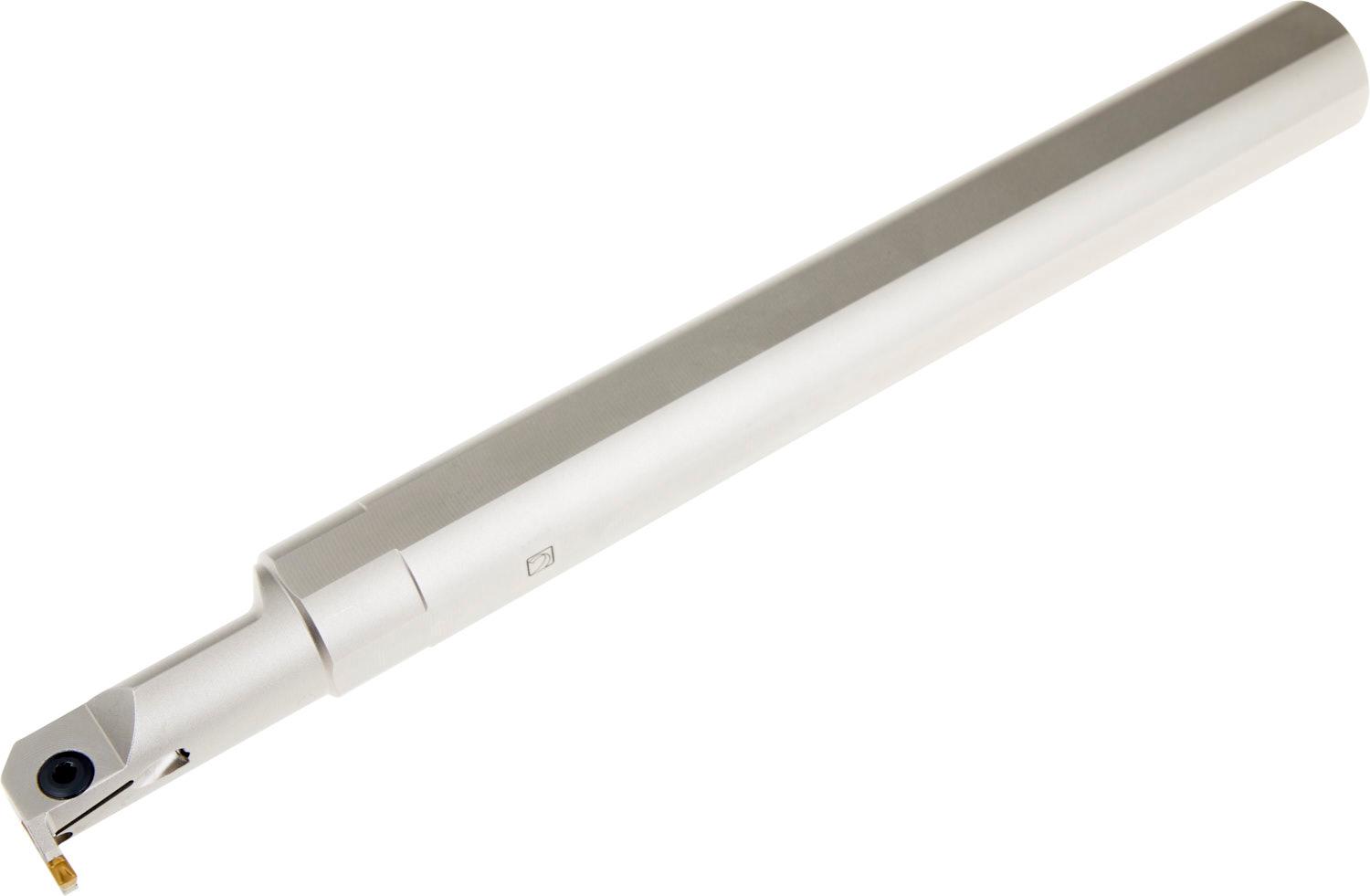

Top clamp grooving bar for holding a 12.6mm long double or single ended insert with 3mm cutting width (designation LCM. 0313.. ), right handed with insert perpendicular to the shank for a maximum grooving depth of 4.5mm, shank diameter 20mm and tool length 200mm for internal grooving and turning

Additional information

Weight 0.3718 kg
barcode
Additional Information

Description: Value
EAN number: 3603602935014
Product number (SAP): 84004171
Ordering code ANSI: A20R-GGFR 0313
Gross weight – grams: 375.8
Connection diameter – millimeter (DCON MS): 20 mm
Functional height – millimeter (HF): 9 mm
Shank height – millimeter (H): 18 mm
Shank width – millimeter (B): 19 mm
Functional length – millimeter (LF): 200 mm
Head length – millimeter (LH): 30 mm
Cutting width – millimeter (CW): 3 mm
Cutting depth maximum – millimeter (CDX): 4.5 mm
Minimum bore diameter – millimeter (DMIN): 20 mm
Net weight – grams: 375.8
ISO: A20R-GGFR0313

Brand

PRAMET
