PRAMET A20R-SVJBR 11 Turning holders internal

Product Code: A20R-SVJBR 11

$277.59$252.35 Ex. GST

Product Code: A20R-SVJBR 11 SKU A20R-SVJBR 11 Categories , ,
PRAMET A20R-SVJBR 11 Turning holders internal

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

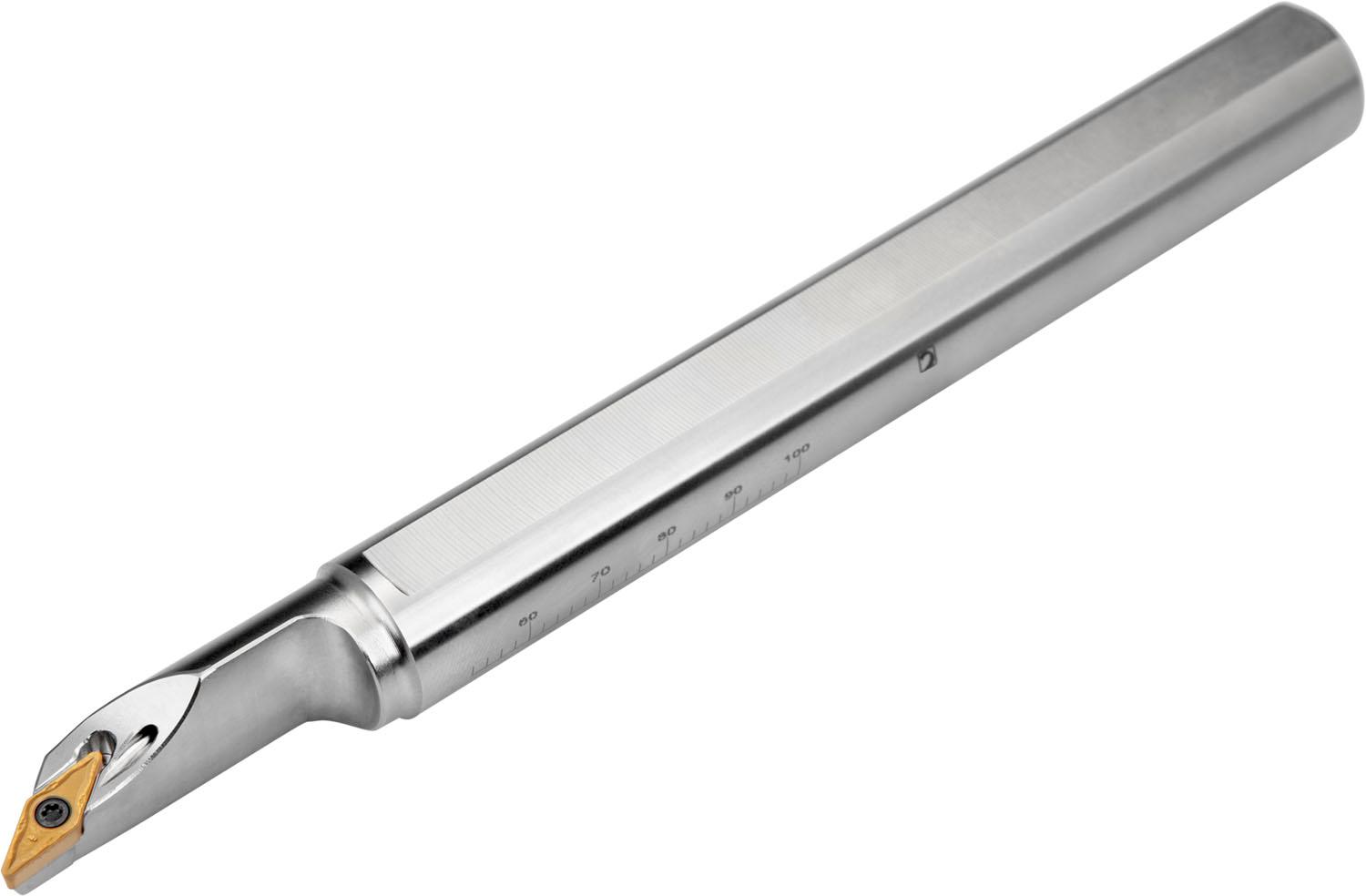

Screw clamp boring bar for holding a 35° rhombus positive insert with an inscribed circle diameter of 6.35mm, 3.18mm thick (ISO designation VB.. 1103.. ), right hand 93° side cutting with off-set shank, steel with coolant hole, 20mm diameter x 200mm long for face copy turning

Additional information

Weight 0.2695 kg
barcode
Additional Information

Description: Value
EAN number: 3603602950642
Product number (SAP): 84008391
Ordering code ANSI: A20R-SVJBR 11
Gross weight – grams: 429.6
Connection diameter – millimeter (DCON MS): 20 mm
Minimum bore diameter – millimeter (DMIN): 25 mm
Functional width – millimeter (WF): 2 mm
Shank height – millimeter (H): 18 mm
Functional length – millimeter (LF): 200 mm
Head length – millimeter (LH): 40 mm
Inclination angle (LAMS): -5
Orthogonal rake angle (GAMO): -5
Net weight – grams: 403.7
Insert size: 11
ISO: A20R-SVJBR11

Brand

PRAMET
