PRAMET A20S-SVQCL 13 Turning holders internal

Product Code: A20S-SVQCL 13

$277.59$252.35 Ex. GST

Product Code: A20S-SVQCL 13 SKU A20S-SVQCL 13 Categories , ,
PRAMET A20S-SVQCL 13 Turning holders internal

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

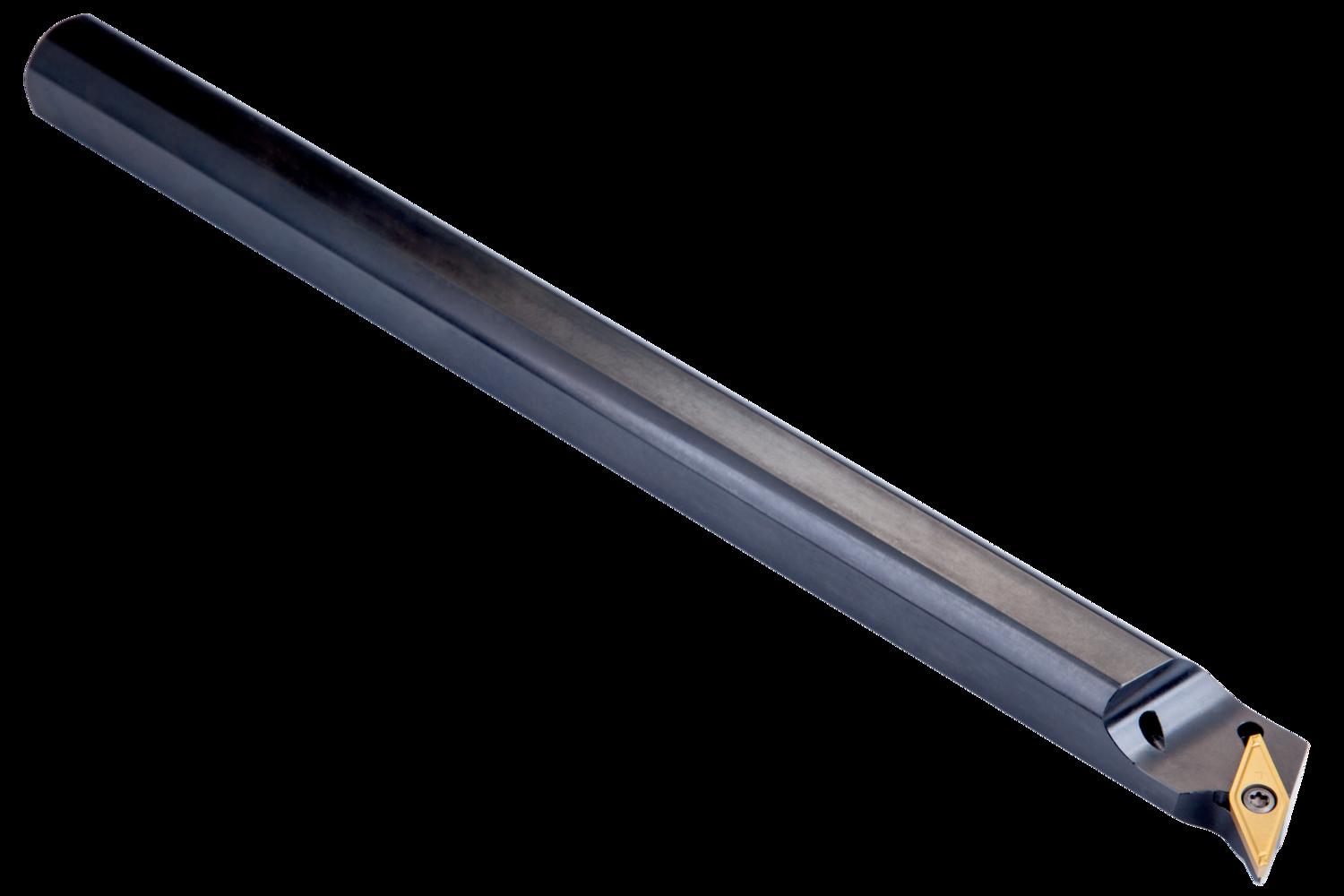

Screw clamp boring bar for holding a 35° rhombus positive insert with an inscribed circle diameter of 7.94mm, 3.18mm thick (ISO designation VC.. 1303.. ), left hand 107°30′ end cutting with off-set shank, steel with coolant hole, 20mm diameter x 250mm long for single and multi-directional copy boring

Additional information

Weight 0.2695 kg
barcode
Additional Information

Description: Value
EAN number: 3603602962478
Product number (SAP): 86005545
Ordering code ANSI: A20S-SVQCL 13
Gross weight – grams: 540
Connection diameter – millimeter (DCON MS): 20 mm
Minimum bore diameter – millimeter (DMIN): 25 mm
Functional width – millimeter (WF): 13 mm
Shank height – millimeter (H): 18 mm
Shank width – millimeter (B): 18.5 mm
Functional length – millimeter (LF): 250 mm
Inclination angle (LAMS): -4
Orthogonal rake angle (GAMO): 0
Net weight – grams: 540
Insert size: 13
ISO: A20S-SVQCL13

Brand

PRAMET
