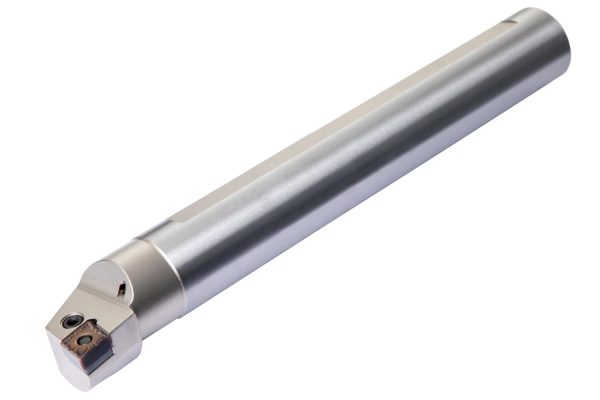

PRAMET A25R-PCLNR 12 Internal Boring Bar

Description: Value
EAN number: 3603602923042
Product number (SAP): 84001364
Ordering code ANSI: A25R-PCLNR 12
Gross weight – grams: 704
Connection diameter – millimeter (DCON MS): 25 mm
Minimum bore diameter – millimeter (DMIN): 31 mm
Functional width – millimeter (WF): 17 mm
Shank height – millimeter (H): 23 mm
Functional height – millimeter (HF): 11.5 mm
Functional length – millimeter (LF): 200 mm
Head length – millimeter (LH): 40 mm
Inclination angle (LAMS): -14
Orthogonal rake angle (GAMO): -4
Net weight – grams: 700
Insert size: 12
ISO: A25R-PCLNR12
Shank width – millimeter (B): 23 mm
