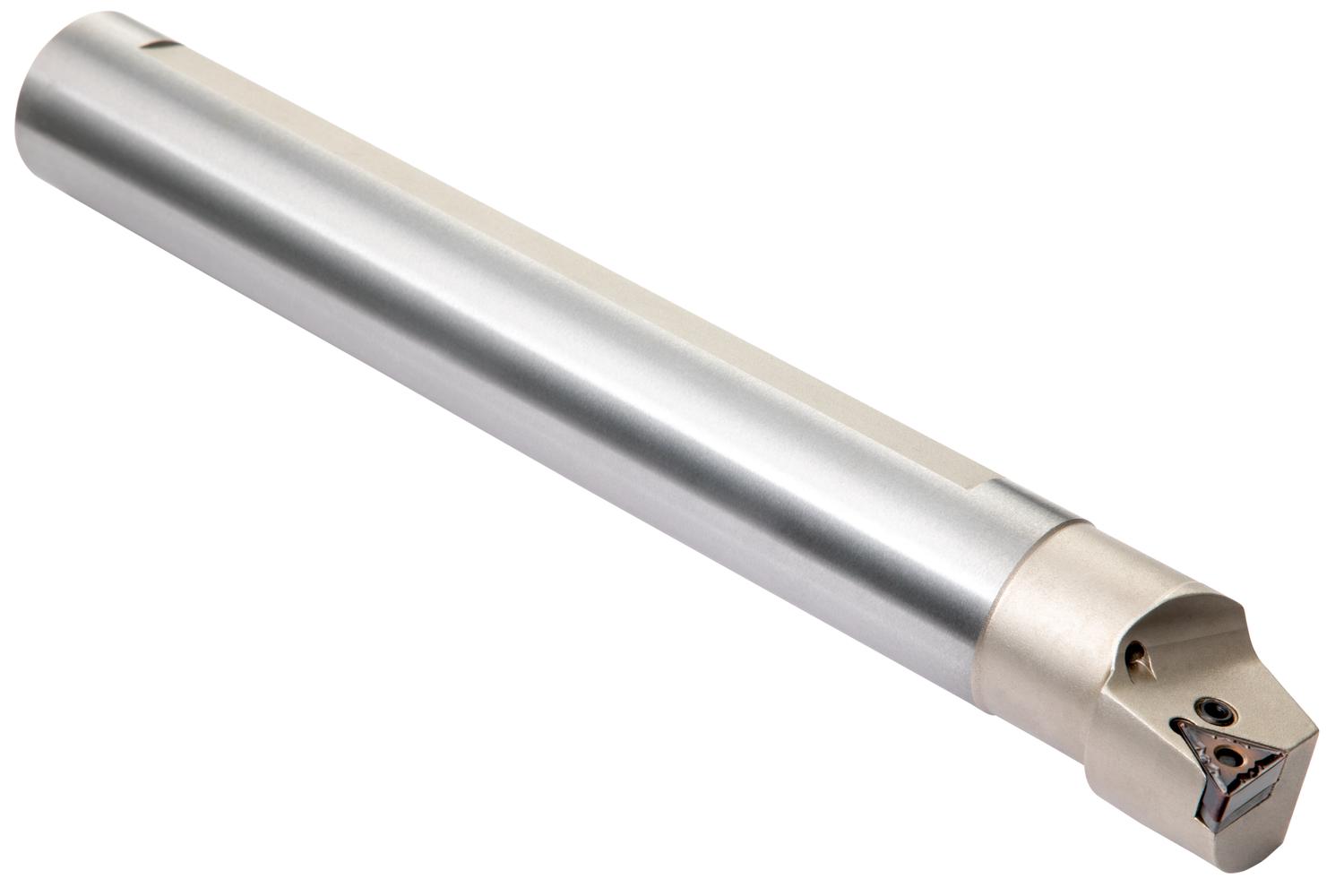

PRAMET A25R-PTFNL 16 Internal Boring bar

Description: Value
EAN number: 3603602925190
Product number (SAP): 84001793
Ordering code ANSI: A25R-PTFNL 16
Gross weight – grams: 715.3
Connection diameter – millimeter (DCON MS): 25 mm
Minimum bore diameter – millimeter (DMIN): 31 mm
Functional width – millimeter (WF): 17 mm
Shank height – millimeter (H): 23 mm
Functional height – millimeter (HF): 11.5 mm
Functional length – millimeter (LF): 200 mm
Head length – millimeter (LH): 40 mm
Inclination angle (LAMS): -13
Orthogonal rake angle (GAMO): -6
Net weight – grams: 715
Insert size: 16
ISO: A25R-PTFNL16
Shank width – millimeter (B): 23 mm
