PRAMET A25R-PWLNL 0604 Internal Boring bar

Product Code: A25R-PWLNL 0604

$445.27$404.79 Ex. GST

Product Code: A25R-PWLNL 0604 SKU A25R-PWLNL 0604 Categories ,

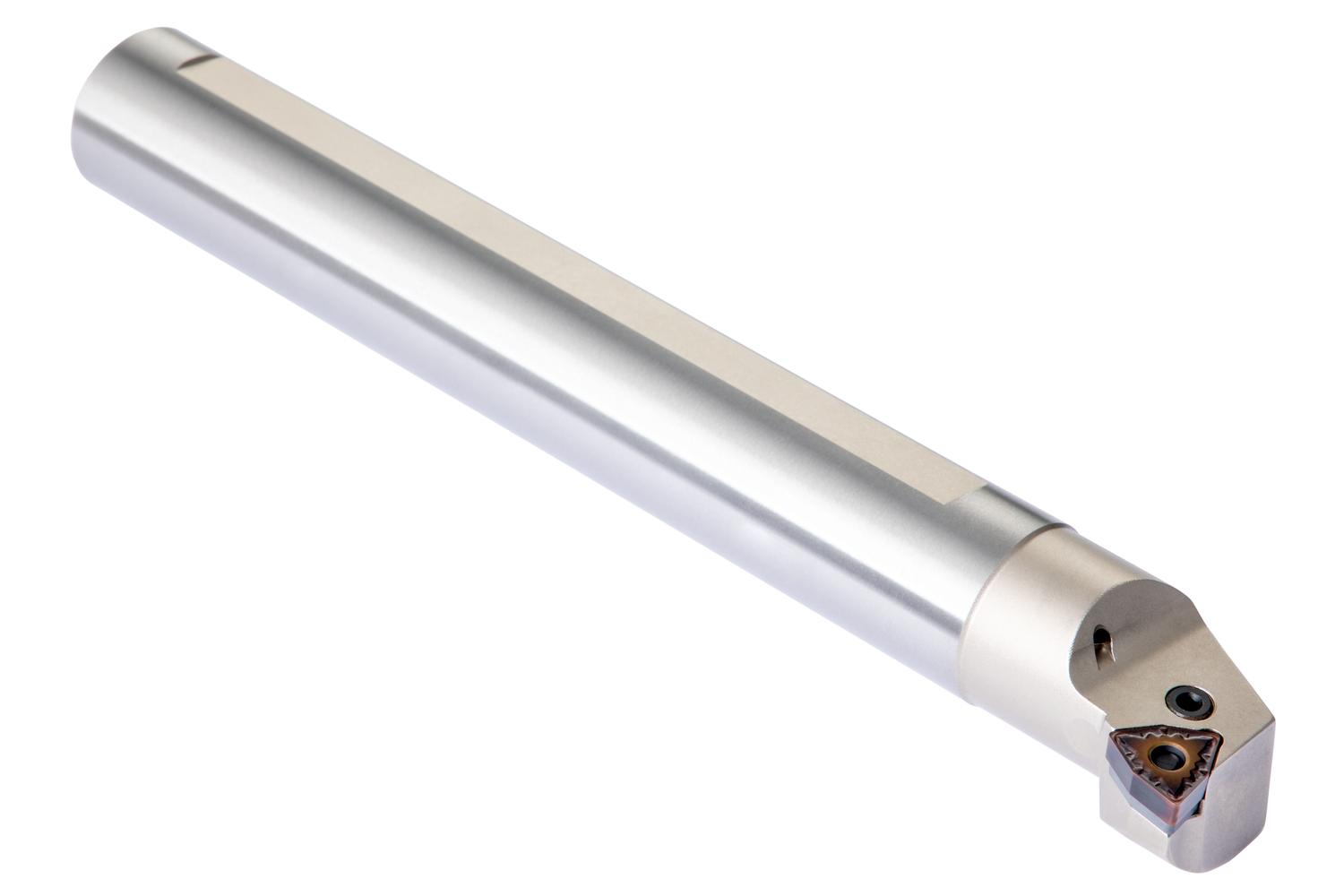

PRAMET A25R-PWLNL 0604 Internal Boring bar
PRAMET A25R-PWLNL 0604 Internal Boring bar - Image 2

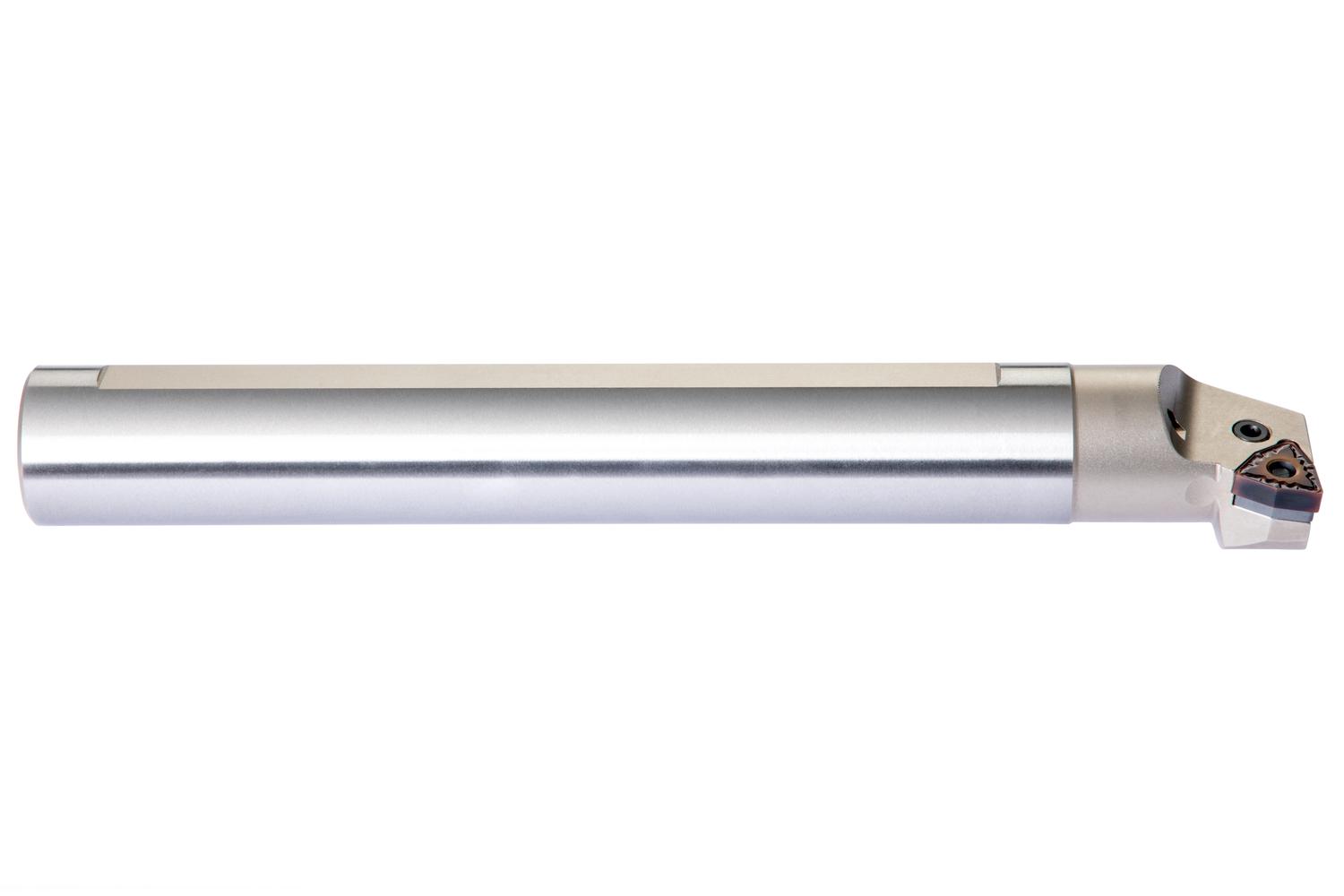

PRAMET A25R-PWLNL 0604 Internal Boring bar - Image 3
PRAMET A25R-PWLNL 0604 Internal Boring bar - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

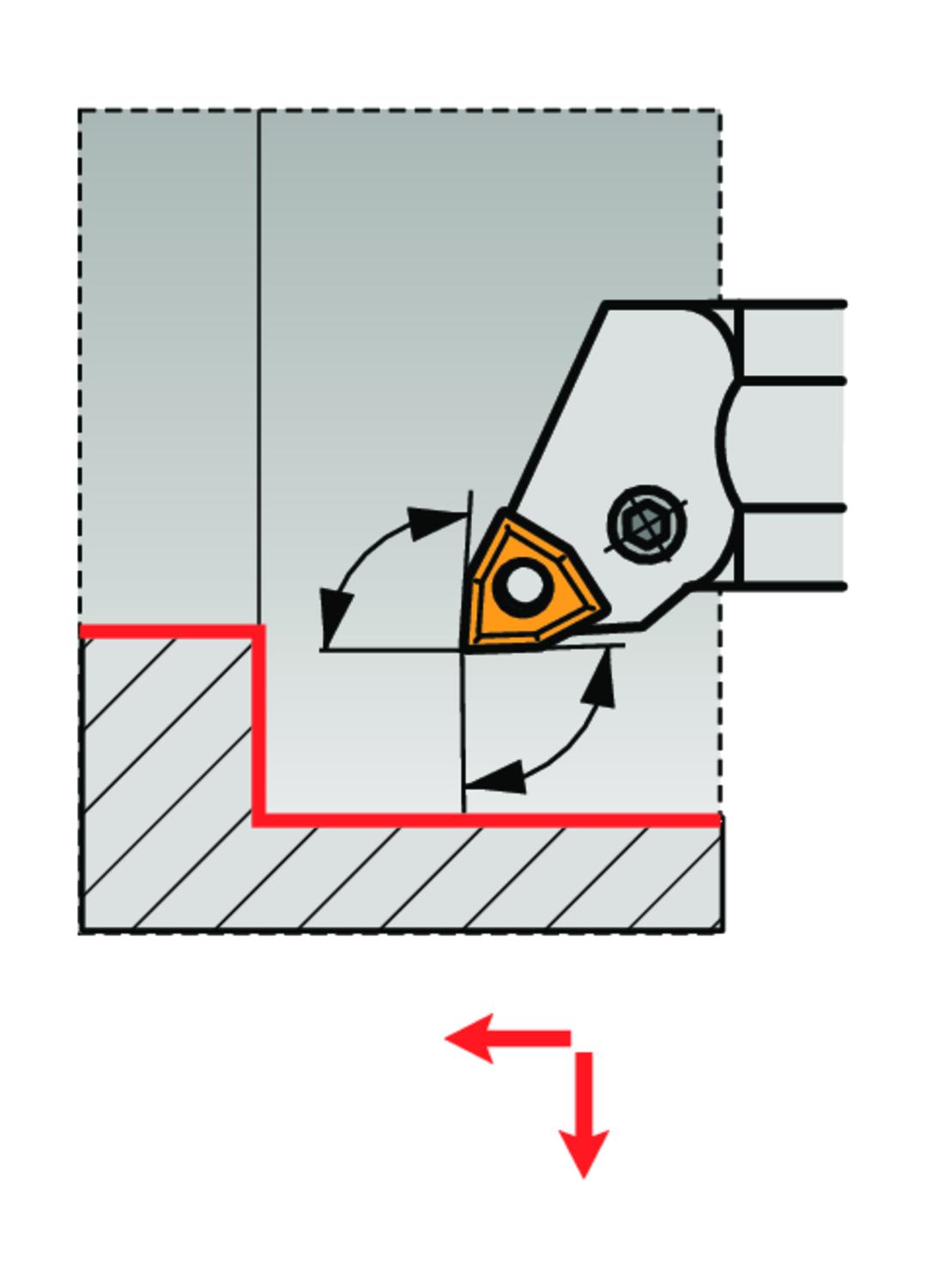

Lever lock boring bar for holding a 80° trigon negative insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation WN.. 0604.. ), left hand 95° side and end cutting with off-set shank, steel without coolant hole, 25mm diameter x 200mm long for taper boring and longitudinal boring with and without shoulder

Additional information

Weight 0.7140 kg
barcode

3603604052245
Additional Information

Description: Value
EAN number: 3603604052245
Product number (SAP): 86041137
Ordering code ANSI: A25R-PWLNL 0604
Gross weight – grams: 714.5

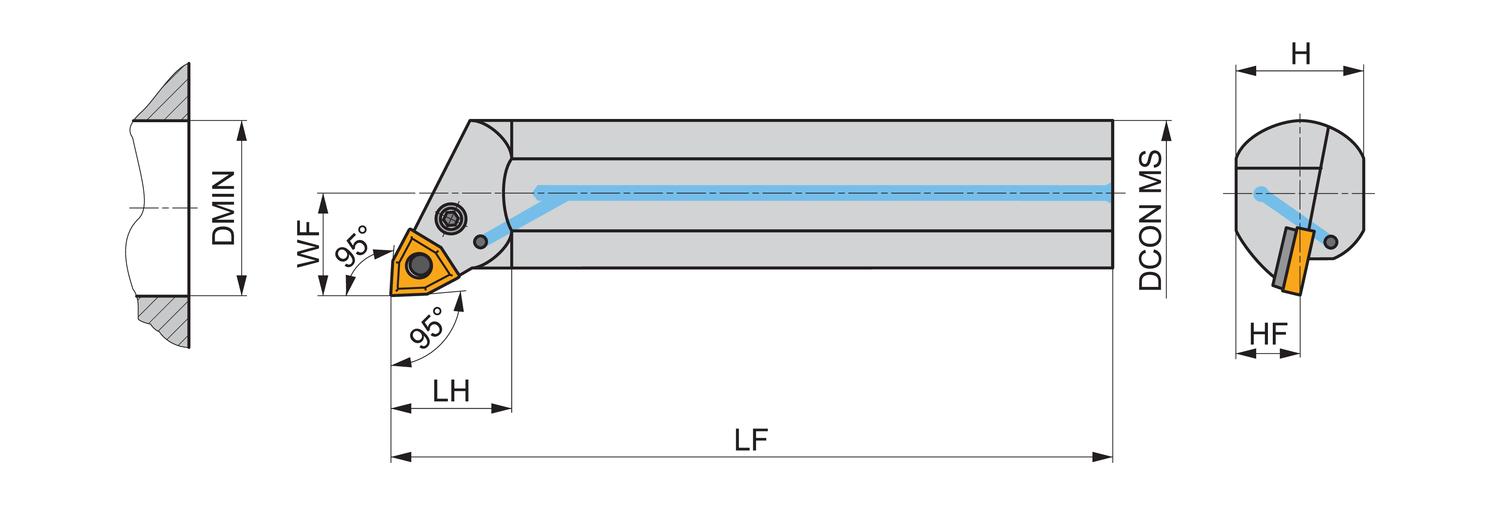

Connection diameter – millimeter (DCON MS): 25 mm
Minimum bore diameter – millimeter (DMIN): 31 mm
Functional width – millimeter (WF): 17 mm
Shank height – millimeter (H): 23 mm
Functional height – millimeter (HF): 11.5 mm
Functional length – millimeter (LF): 200 mm
Head length – millimeter (LH): 40 mm
Inclination angle (LAMS): -14
Orthogonal rake angle (GAMO): -4
Net weight – grams: 714
Insert size: 06
ISO: A25R-PWLNL0604
