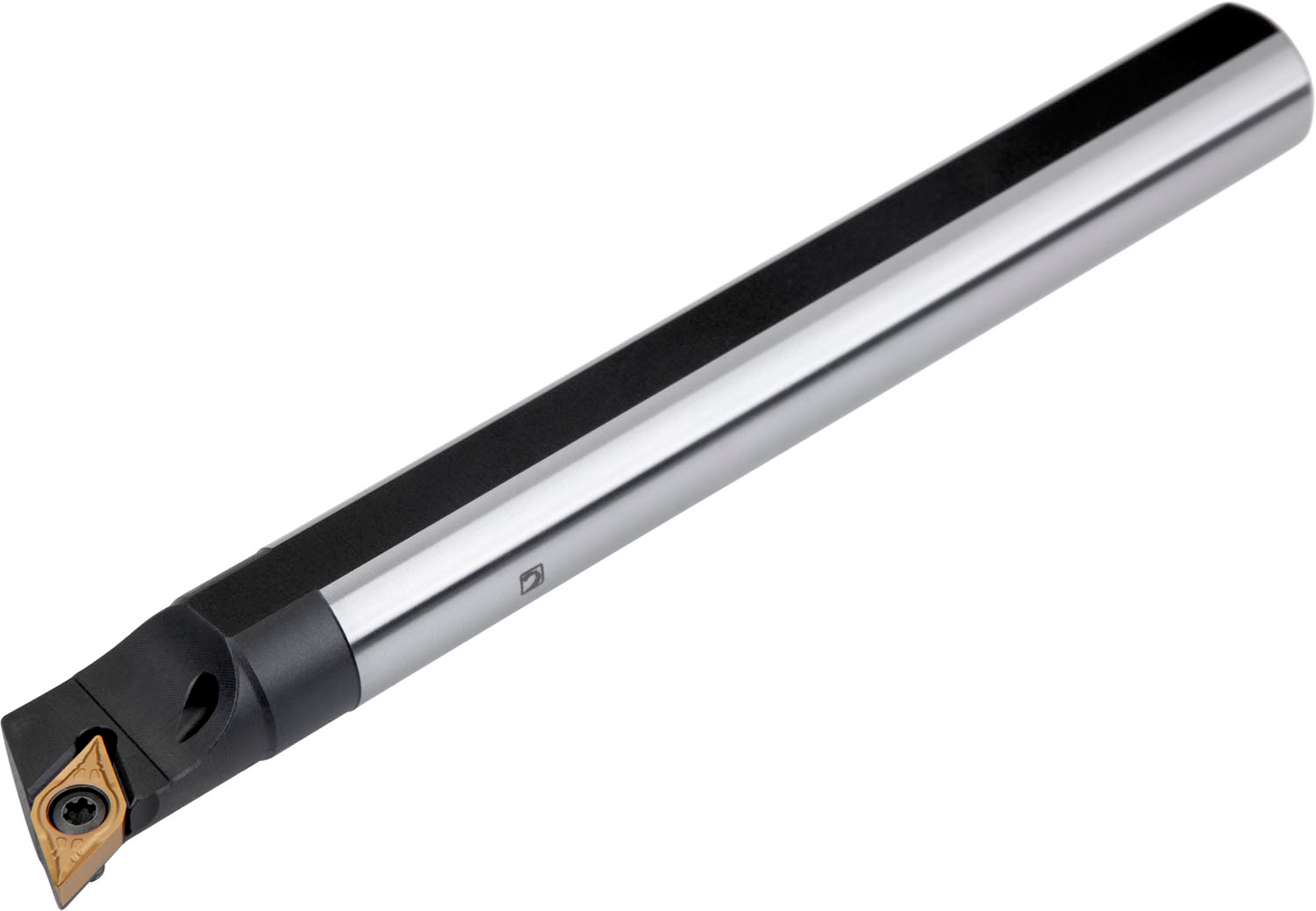

PRAMET A25R-SDQCR 11 Internal Boring Bar

Description

Screw clamp boring bar for holding a 55° rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation DC.. 11T3.. ), right hand 107°30′ end cutting with off-set shank, steel with coolant hole, 25mm diameter x 200mm long for taper boring and longitudinal boring with and without shoulder

Additional information

Weight	0.2915 kg
barcode
Additional Information	Description: Value EAN number: 3603602923684 Product number (SAP): 84001447 Ordering code ANSI: A25R-SDQCR 11 Gross weight – grams: 653 Connection diameter – millimeter (DCON MS): 25 mm Minimum bore diameter – millimeter (DMIN): 32 mm Functional width – millimeter (WF): 17 mm Shank height – millimeter (H): 23 mm Shank width – millimeter (B): 23 mm Functional length – millimeter (LF): 200 mm Coolant entry diameter – millimeter (CND): 8 mm Inclination angle (LAMS): -3 Orthogonal rake angle (GAMO): 0 Net weight – grams: 651.4 Insert size: 11 ISO: A25R-SDQCR11
