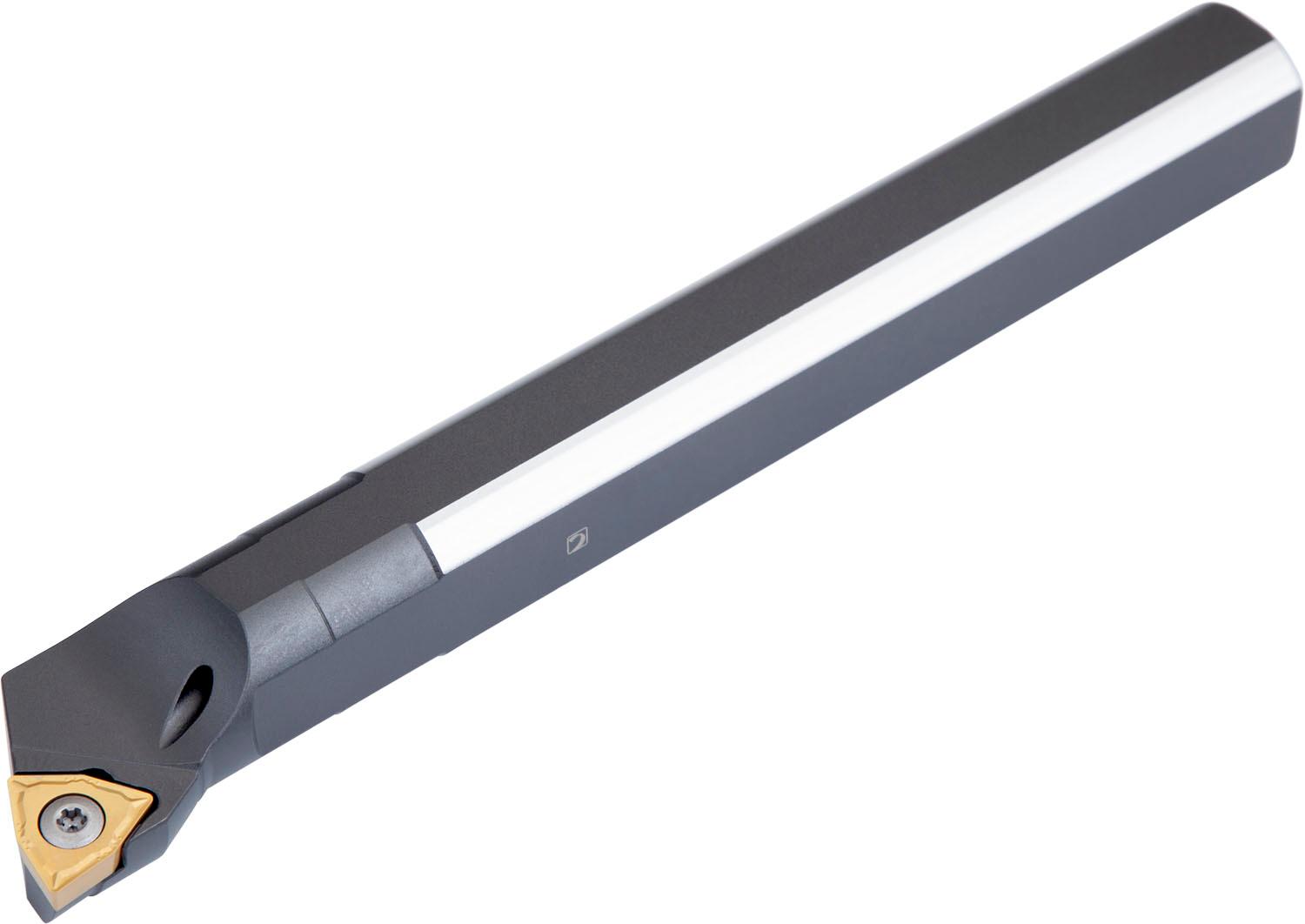

PRAMET A25R-SWLCR 08 Turning holders internal

Product Code: A25R-SWLCR 08

$300.25$272.95 Ex. GST

Product Code: A25R-SWLCR 08 SKU A25R-SWLCR 08 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Screw clamp boring bar for holding a 80° trigon positive insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation WC.. 0804.. ), right hand 95° side and end cutting with off-set shank, steel with coolant hole, 25mm diameter x 200mm long for taper boring and longitudinal boring with and without shoulder

Additional information

Weight 0.2915 kg
barcode
Additional Information

Description: Value
EAN number: 3603602963710
Product number (SAP): 86006610
Ordering code ANSI: A25R-SWLCR 08
Gross weight – grams: 700
Connection diameter – millimeter (DCON MS): 25 mm
Minimum bore diameter – millimeter (DMIN): 32 mm
Functional width – millimeter (WF): 17 mm
Shank height – millimeter (H): 23 mm
Shank width – millimeter (B): 23 mm
Functional length – millimeter (LF): 200 mm
Inclination angle (LAMS): -7
Orthogonal rake angle (GAMO): 0
Net weight – grams: 700
Insert size: 08
ISO: A25R-SWLCR08

Brand

PRAMET
