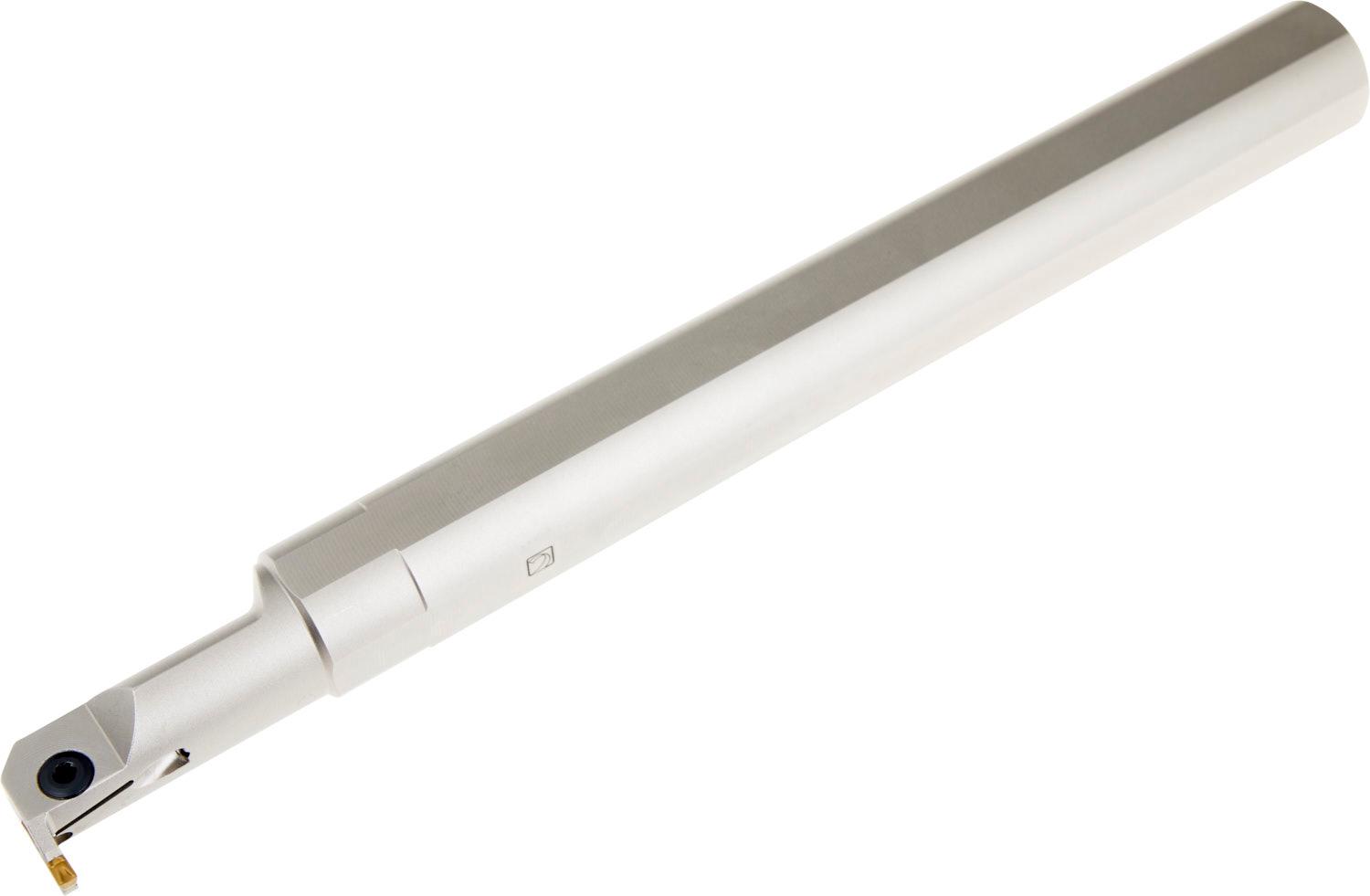

PRAMET A25S-GGFR 0413 Turning holders for parting, grooving and copy turning

Description: Value
EAN number: 3603602935052
Product number (SAP): 84004175
Ordering code ANSI: A25S-GGFR 0413
Gross weight – grams: 783.8
Connection diameter – millimeter (DCON MS): 25 mm
Functional height – millimeter (HF): 11.5 mm
Shank height – millimeter (H): 23 mm
Shank width – millimeter (B): 24 mm
Functional length – millimeter (LF): 250 mm
Head length – millimeter (LH): 40 mm
Cutting width – millimeter (CW): 4 mm
Cutting depth maximum – millimeter (CDX): 6.5 mm
Minimum bore diameter – millimeter (DMIN): 25 mm
Net weight – grams: 783.8
ISO: A25S-GGFR0413
