PRAMET A25S-SVJBR 11 Turning holders internal

Product Code: A25S-SVJBR 11

$314.97$286.34 Ex. GST

Product Code: A25S-SVJBR 11 SKU A25S-SVJBR 11 Categories , ,
PRAMET A25S-SVJBR 11 Turning holders internal

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

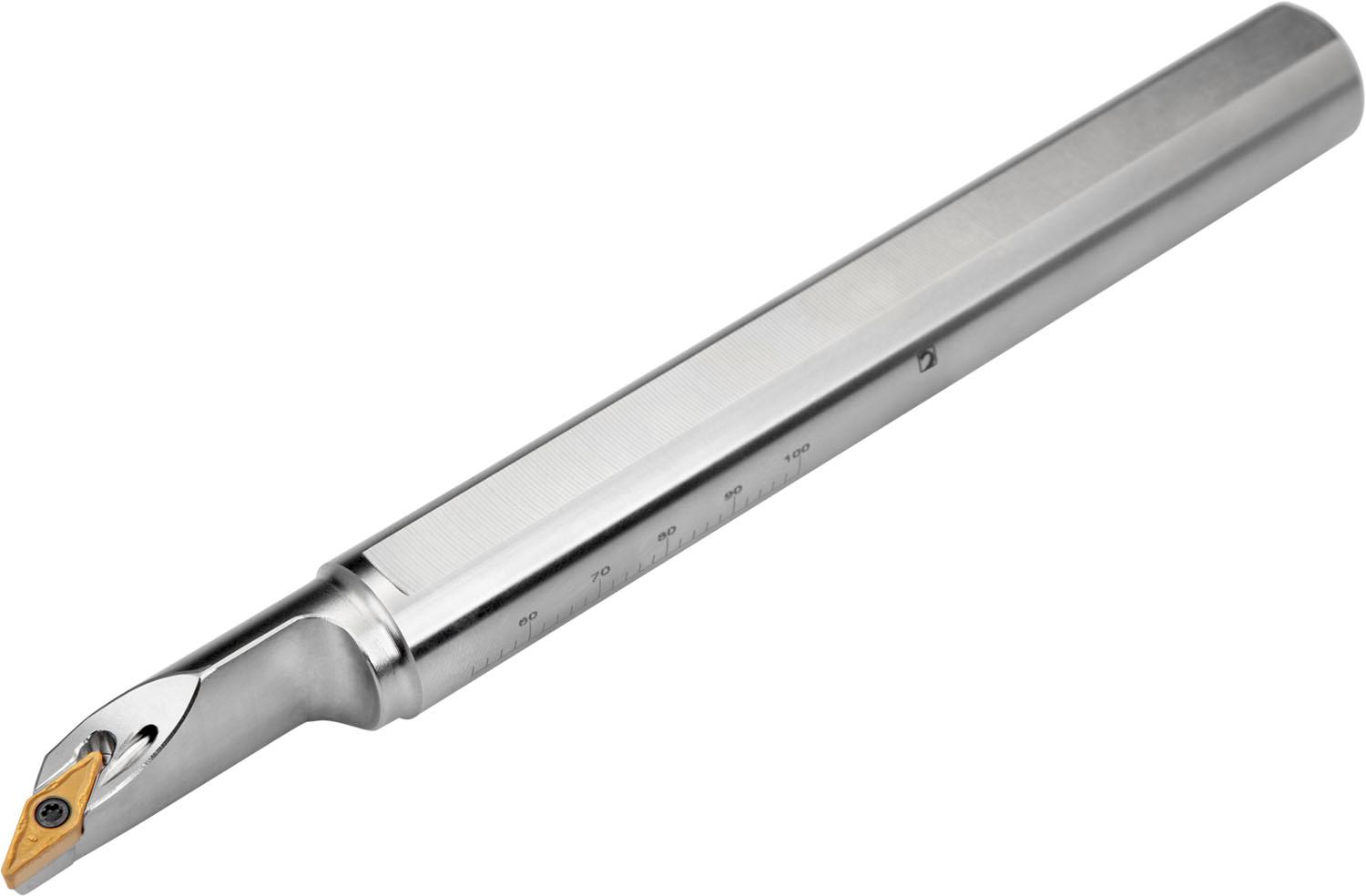

Screw clamp boring bar for holding a 35° rhombus positive insert with an inscribed circle diameter of 6.35mm, 3.18mm thick (ISO designation VB.. 1103.. ), right hand 93° side cutting with off-set shank, steel with coolant hole, 25mm diameter x 250mm long for face copy turning

Additional information

Weight 0.3058 kg
barcode
Additional Information

Description: Value
EAN number: 3603602950666
Product number (SAP): 84008393
Ordering code ANSI: A25S-SVJBR 11
Gross weight – grams: 809.3
Connection diameter – millimeter (DCON MS): 25 mm
Minimum bore diameter – millimeter (DMIN): 32 mm
Functional width – millimeter (WF): 3.5 mm
Shank height – millimeter (H): 23 mm
Functional length – millimeter (LF): 250 mm
Head length – millimeter (LH): 50 mm
Inclination angle (LAMS): -5
Orthogonal rake angle (GAMO): -5
Net weight – grams: 809.3
Insert size: 11
ISO: A25S-SVJBR11

Brand

PRAMET
