PRAMET A25T-DCLNR 09

Product Code: A25T-DCLNR 09

$461.13$419.21 Ex. GST

Product Code: A25T-DCLNR 09 SKU A25T-DCLNR 09 Categories , ,
PRAMET A25T-DCLNR 09

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

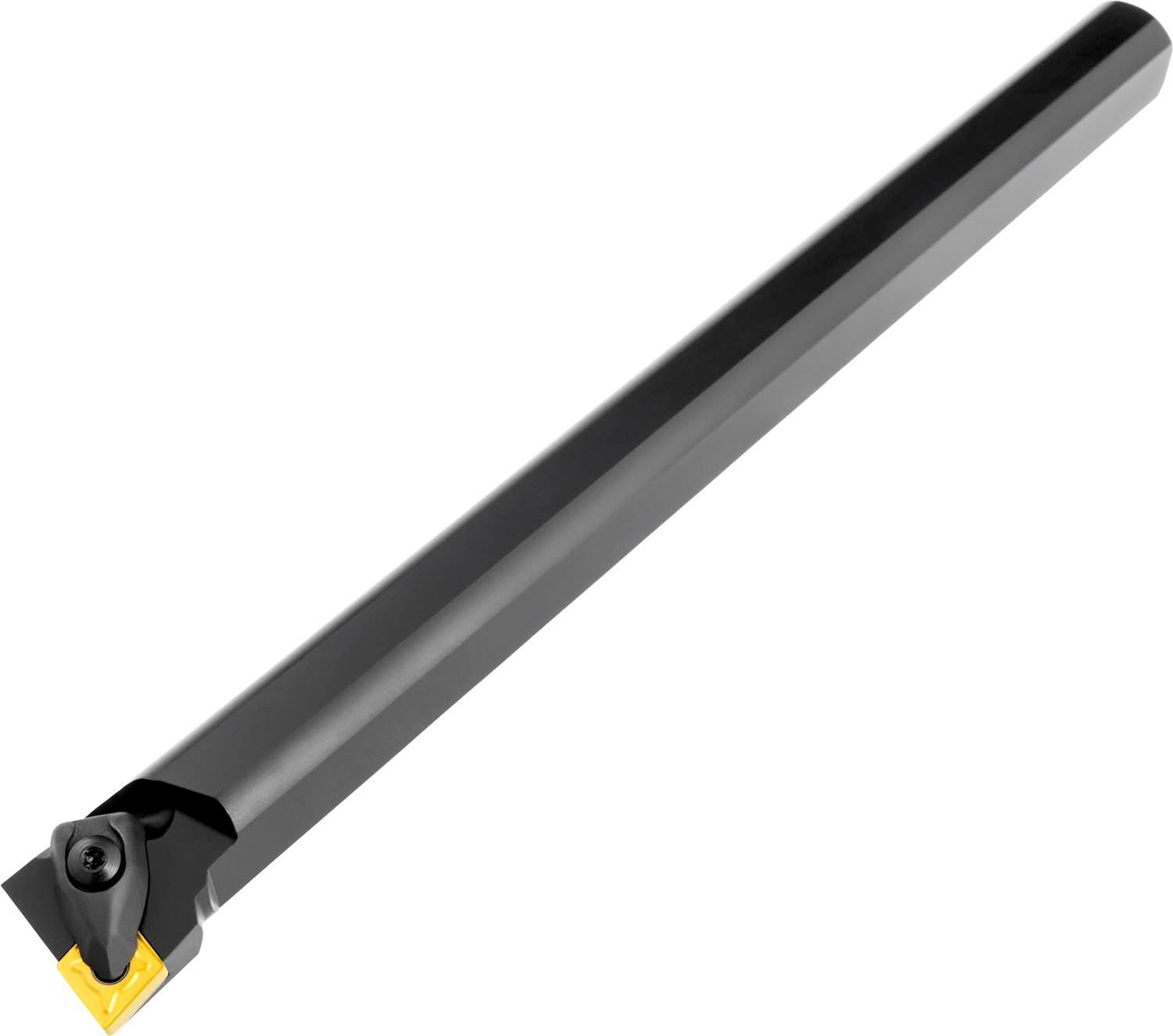

Double clamp boring bar for holding a 80° rhombus negative insert with an inscribed circle diameter of 9.525mm, 3.18mm thick (ISO designation CN.. 0903.. ), right hand 95° side and end cutting with off-set shank, steel with coolant hole, 25mm diameter x 300mm long for taper boring and longitudinal boring with and without shoulder

Additional information

Weight 0.4477 kg
barcode
Additional Information

Description: Value
EAN number: 3603602934413
Product number (SAP): 84004040
Ordering code ANSI: A25T-DCLNR 09
Gross weight – grams: 985
Connection diameter – millimeter (DCON MS): 25 mm
Minimum bore diameter – millimeter (DMIN): 32 mm
Functional width – millimeter (WF): 17 mm
Shank height – millimeter (H): 23 mm
Functional height – millimeter (HF): 11.5 mm
Functional length – millimeter (LF): 300 mm
Head length – millimeter (LH): 31 mm
Inclination angle (LAMS): -11
Orthogonal rake angle (GAMO): -6
Net weight – grams: 984.5
Insert size: 09
ISO: A25T-DCLNR09
