PRAMET A25T-DDUNR 11

Product Code: A25T-DDUNR 11

$461.13$419.21 Ex. GST

Product Code: A25T-DDUNR 11 SKU A25T-DDUNR 11 Categories , ,
PRAMET A25T-DDUNR 11

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

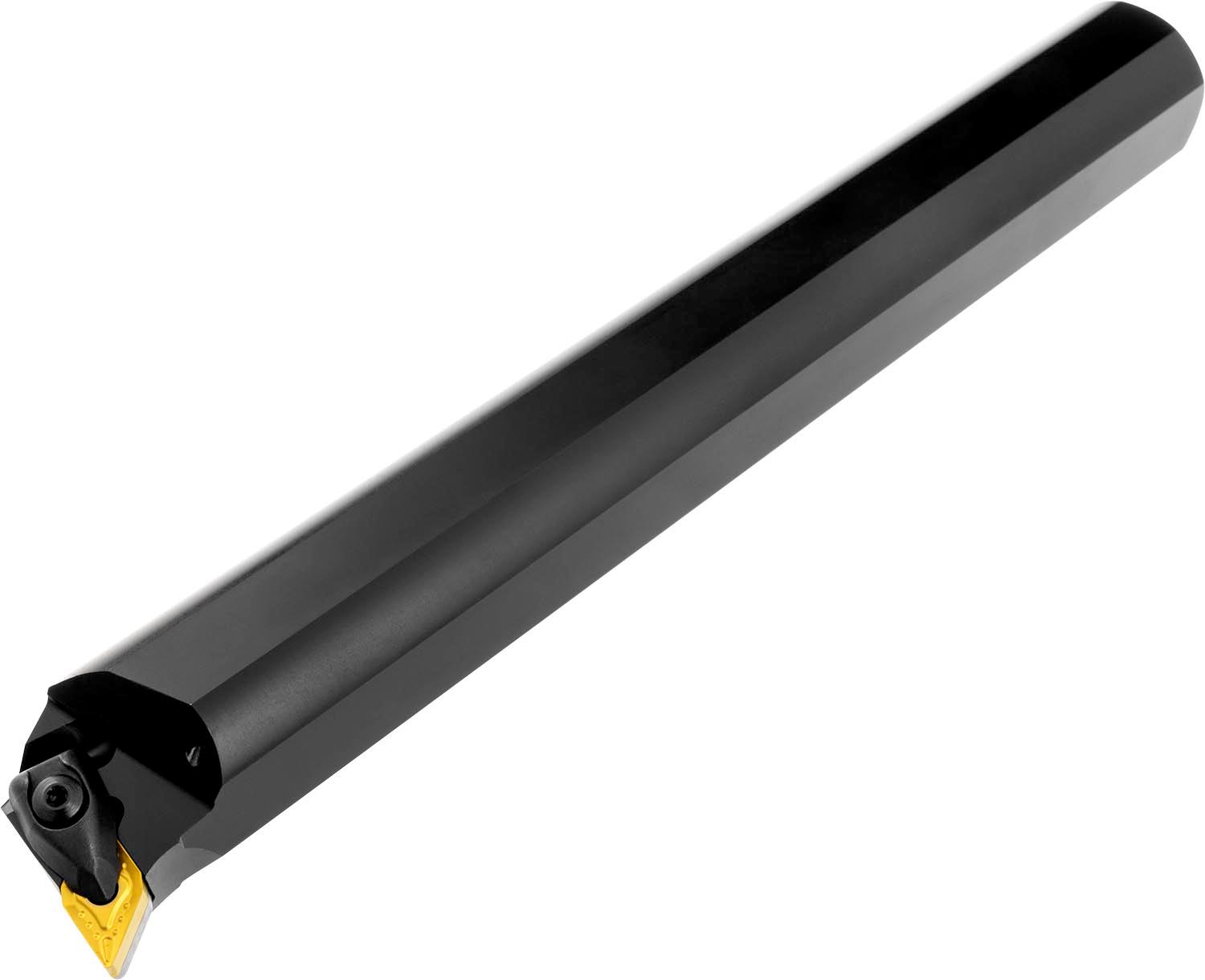

Double clamp boring bar for holding a 55° rhombus negative insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation DN.. 1104.. ), right hand 93° end cutting with off-set shank, steel with coolant hole, 25mm diameter x 300mm long for internal chamfering, taper boring, single and multi-directional copy boring and longitudinal boring with and without shoulder

Additional information

Weight 0.4477 kg
barcode
Additional Information

Description: Value
EAN number: 3603603105850
Product number (SAP): 86027002
Ordering code ANSI: A25T-DDUNR 11
Gross weight – grams: 962
Connection diameter – millimeter (DCON MS): 25 mm
Minimum bore diameter – millimeter (DMIN): 32 mm
Functional width – millimeter (WF): 17 mm
Shank height – millimeter (H): 23 mm
Functional height – millimeter (HF): 11.5 mm
Functional length – millimeter (LF): 300 mm
Head length – millimeter (LH): 28 mm
Inclination angle (LAMS): -12
Orthogonal rake angle (GAMO): -6
Net weight – grams: 962
Insert size: 11
ISO: A25T-DDUNR11

Brand

PRAMET
