PRAMET A25T-SVUCL 13 Turning holders internal

Product Code: A25T-SVUCL 13

$314.97$286.34 Ex. GST

Product Code: A25T-SVUCL 13 SKU A25T-SVUCL 13 Categories , ,
PRAMET A25T-SVUCL 13 Turning holders internal

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

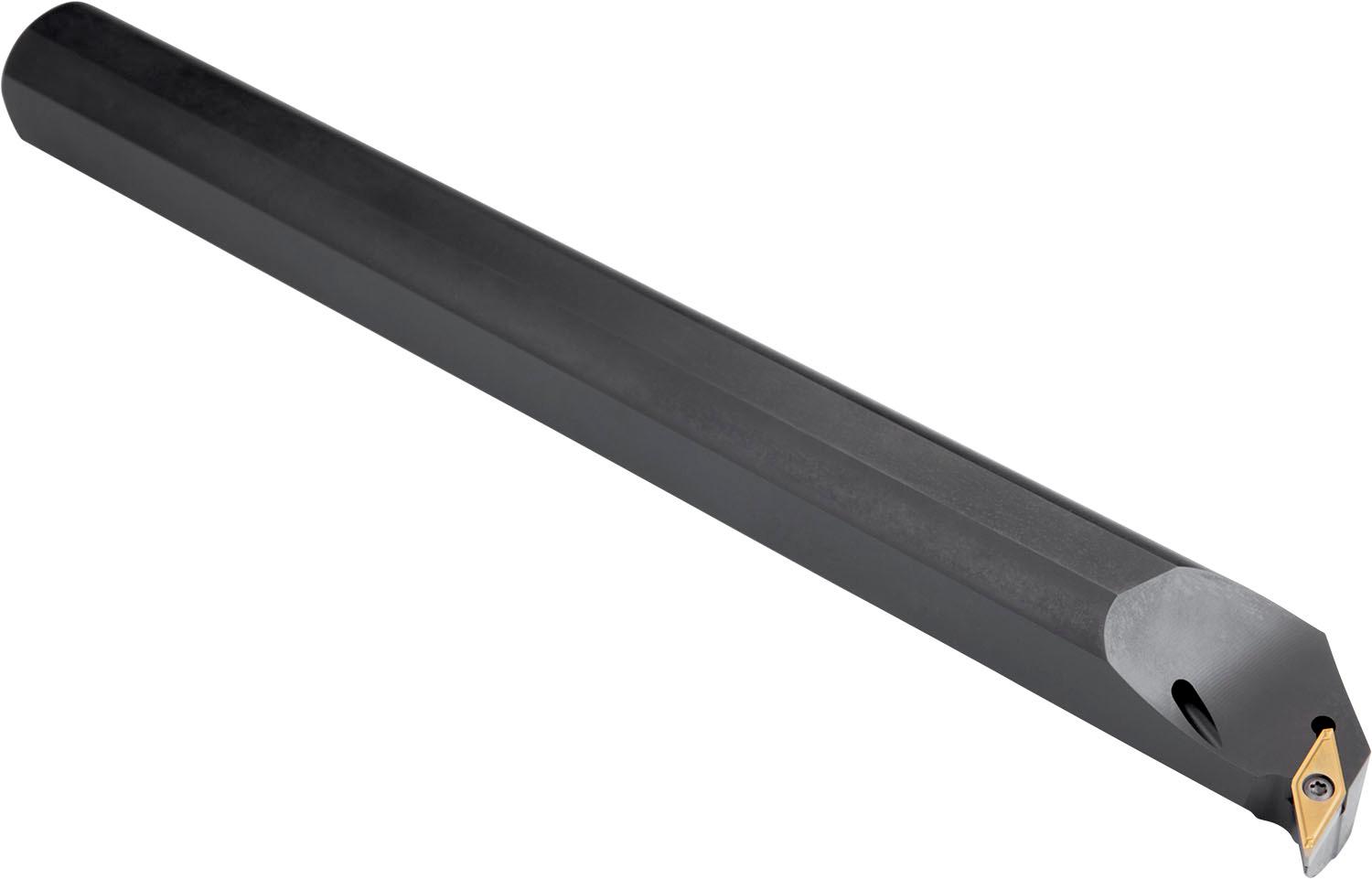

Screw clamp boring bar for holding a 35° rhombus positive insert with an inscribed circle diameter of 7.94mm, 3.18mm thick (ISO designation VC.. 1303.. ), left hand 93° end cutting with off-set shank, steel with coolant hole, 25mm diameter x 300mm long for single and multi-directional copy boring and back chamfering

Additional information

Weight 0.3058 kg
barcode
Additional Information

Description: Value
EAN number: 3603602962560
Product number (SAP): 86005565
Ordering code ANSI: A25T-SVUCL 13
Gross weight – grams: 986.1
Connection diameter – millimeter (DCON MS): 25 mm
Minimum bore diameter – millimeter (DMIN): 32 mm
Functional width – millimeter (WF): 17 mm
Shank height – millimeter (H): 24 mm
Shank width – millimeter (B): 23 mm
Functional length – millimeter (LF): 300 mm
Inclination angle (LAMS): -2
Orthogonal rake angle (GAMO): 2
Net weight – grams: 960
Insert size: 13
ISO: A25T-SVUCL13

Brand

PRAMET
