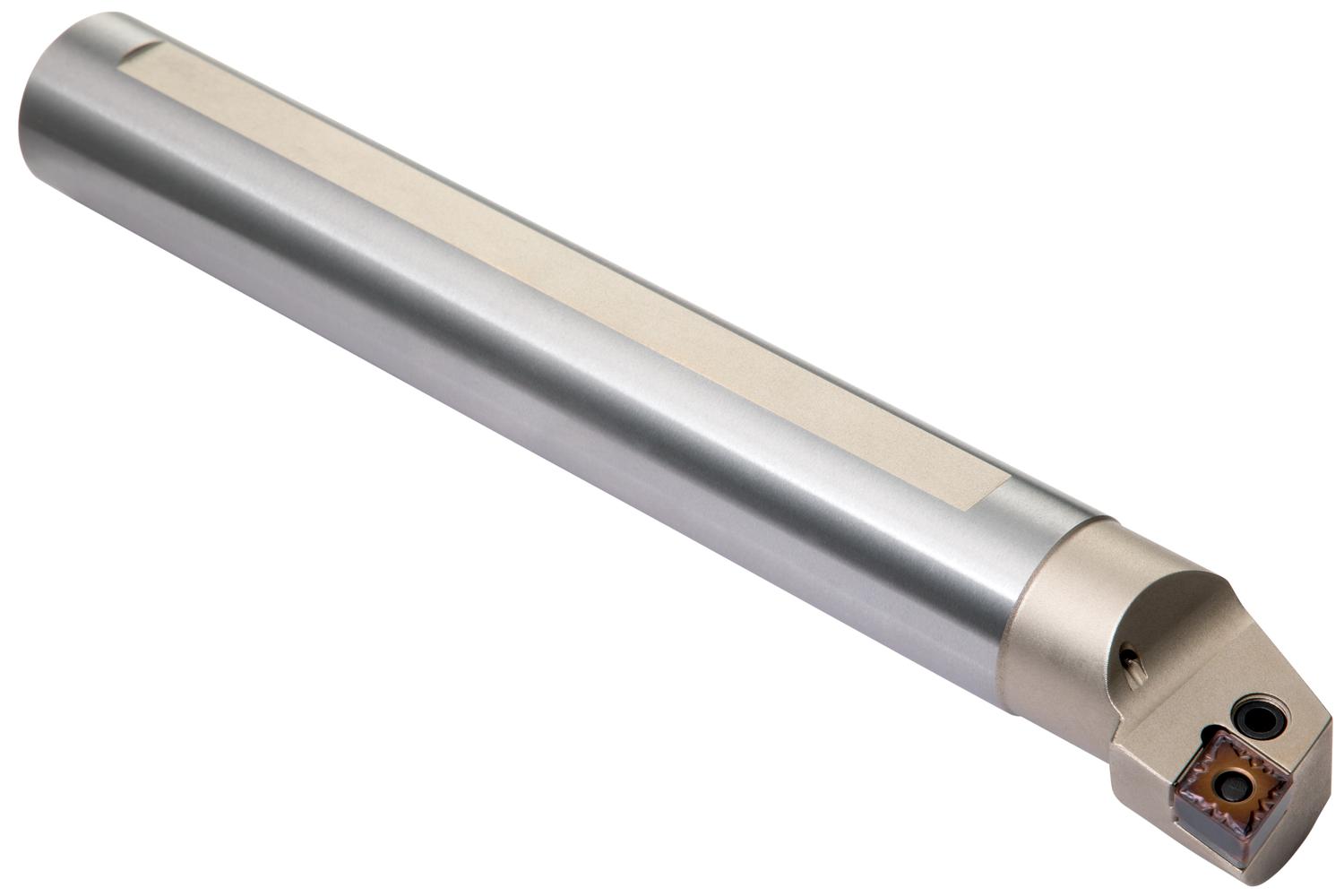

PRAMET A32S-PCLNL 12 Internal Boring Bar

Description: Value
EAN number: 3603602926081
Product number (SAP): 84001963
Ordering code ANSI: A32S-PCLNL 12
Gross weight – grams: 1436.2
Connection diameter – millimeter (DCON MS): 32 mm
Minimum bore diameter – millimeter (DMIN): 39 mm
Functional width – millimeter (WF): 22 mm
Shank height – millimeter (H): 30 mm
Functional height – millimeter (HF): 15 mm
Functional length – millimeter (LF): 250 mm
Head length – millimeter (LH): 45 mm
Inclination angle (LAMS): -12
Orthogonal rake angle (GAMO): -4
Net weight – grams: 1400
Insert size: 12
ISO: A32S-PCLNL12
Shank width – millimeter (B): 30 mm
