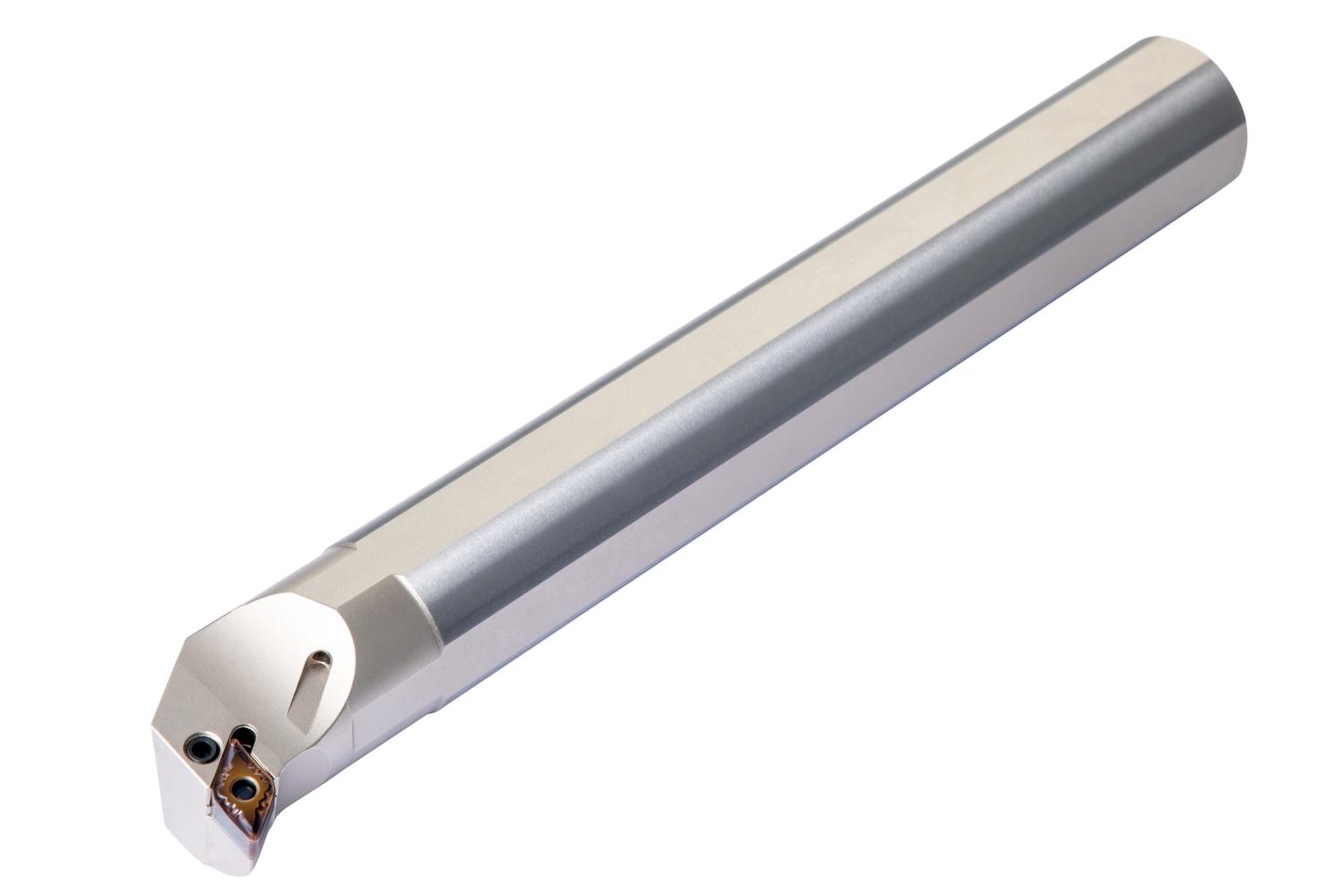

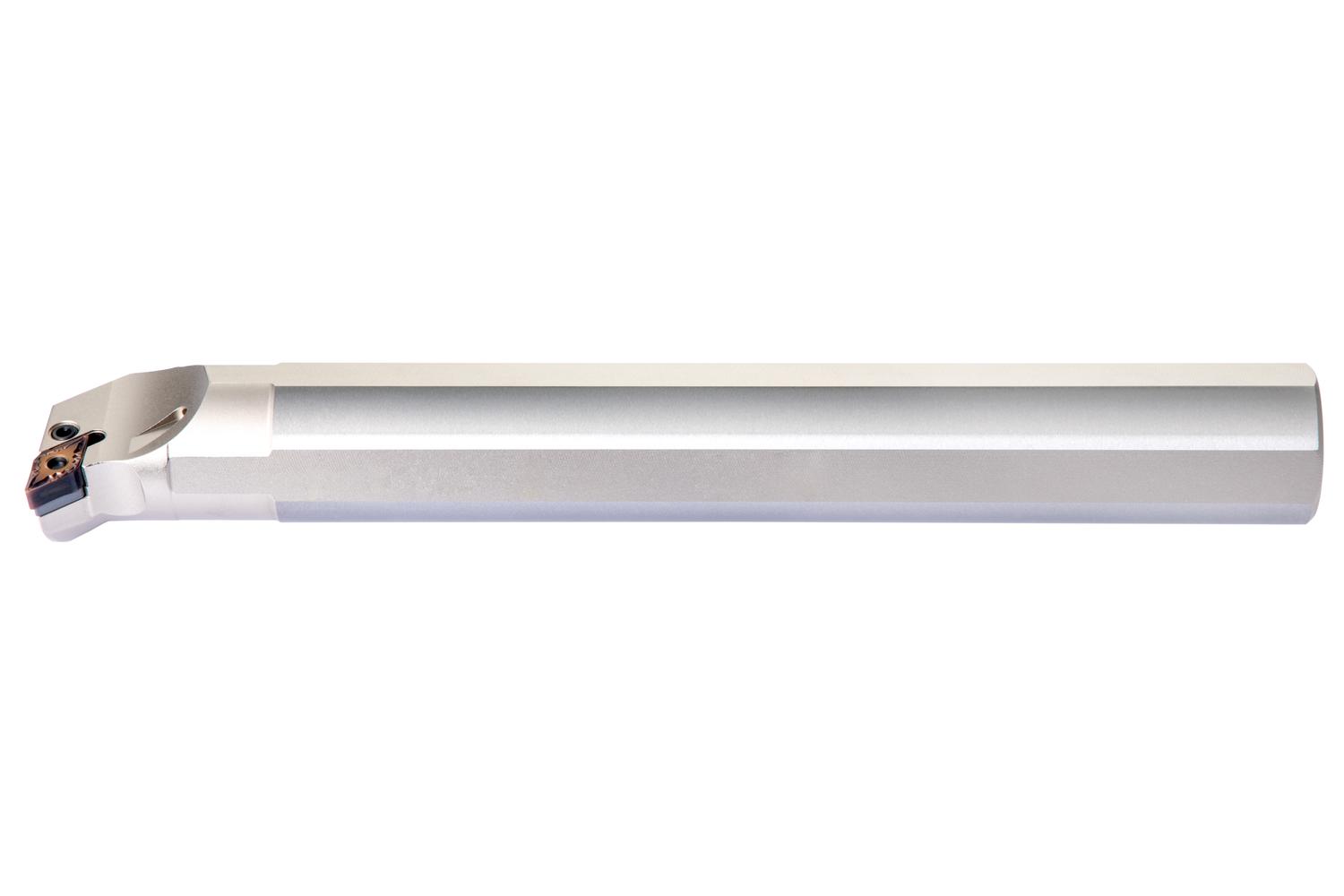

PRAMET A32S-PDUNR 11 Internal Boring Bar

Description: Value
EAN number: 3603604052276
Product number (SAP): 86041140
Ordering code ANSI: A32S-PDUNR 11
Gross weight – grams: 1416

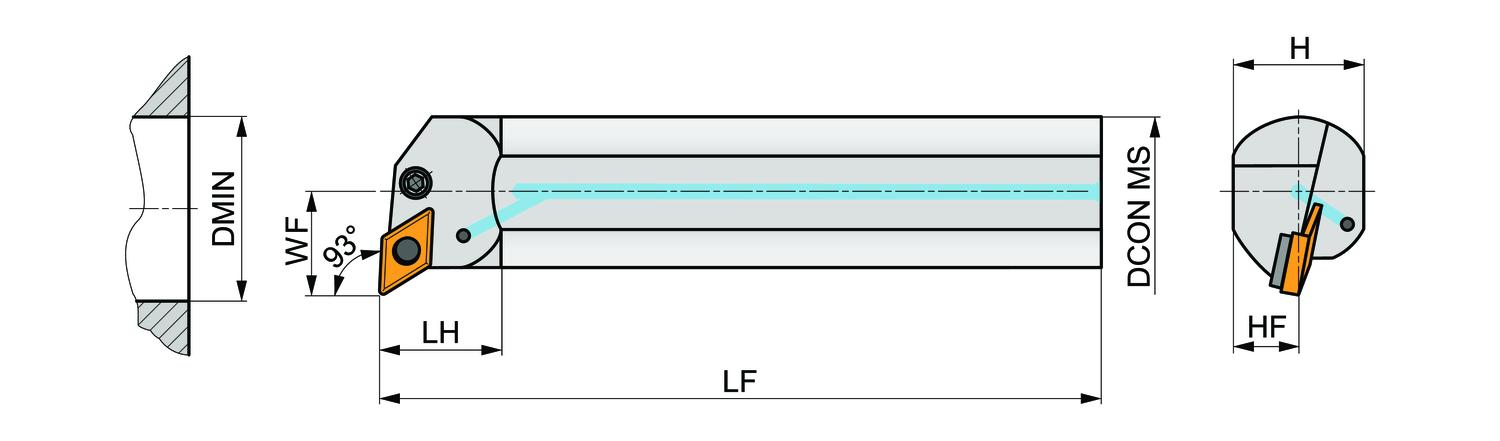

Connection diameter – millimeter (DCON MS): 32 mm
Minimum bore diameter – millimeter (DMIN): 39 mm
Functional width – millimeter (WF): 22 mm
Shank height – millimeter (H): 30 mm
Functional height – millimeter (HF): 15 mm
Functional length – millimeter (LF): 250 mm
Head length – millimeter (LH): 45 mm
Inclination angle (LAMS): -14
Orthogonal rake angle (GAMO): -5
Net weight – grams: 1416
Insert size: 11
ISO: A32S-PDUNR11
