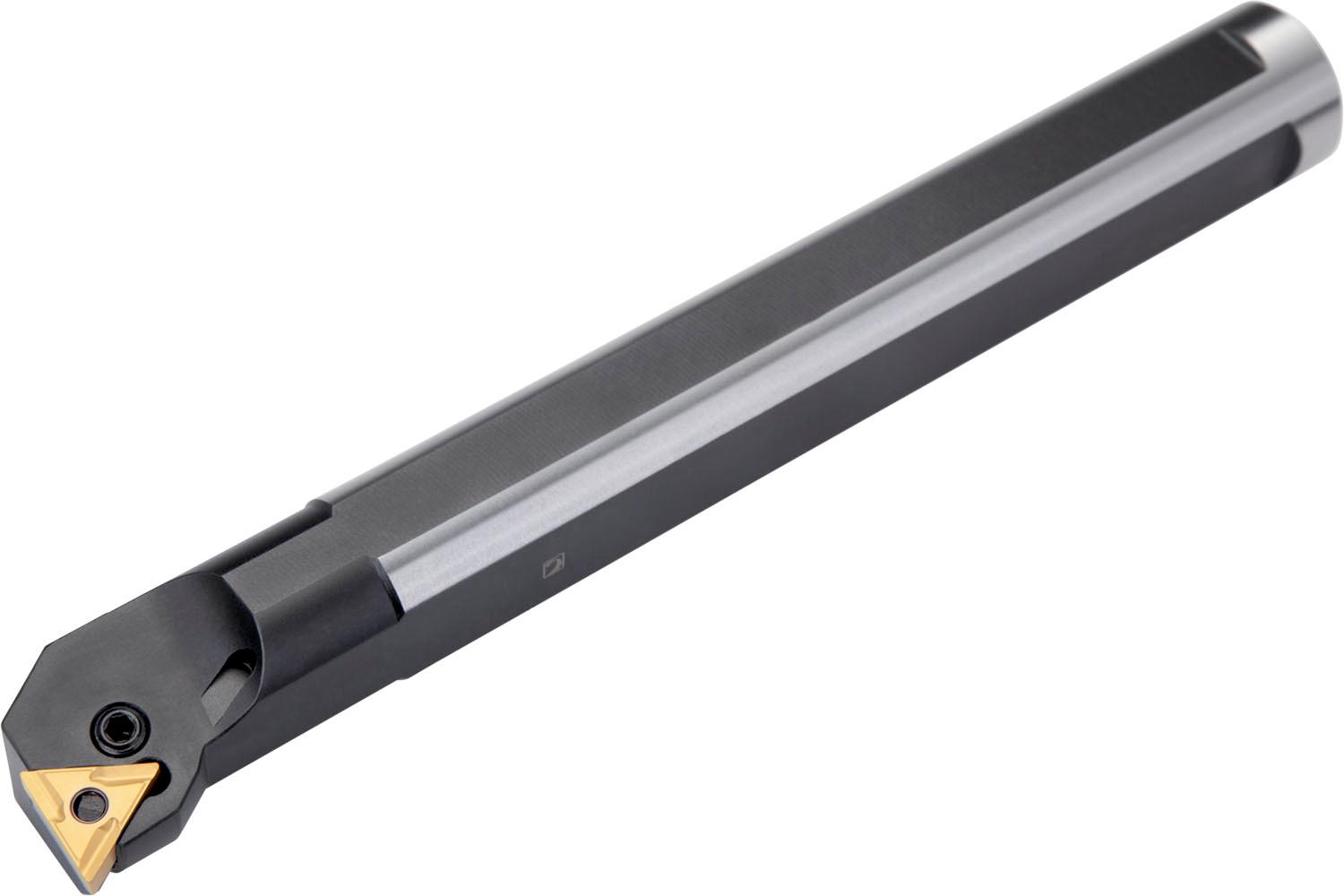

PRAMET A32S-PTFNR 16 Internal Boring bar

Description: Value
EAN number: 3603602926951
Product number (SAP): 84002128
Ordering code ANSI: A32S-PTFNR 16
Gross weight – grams: 1455
Connection diameter – millimeter (DCON MS): 32 mm
Minimum bore diameter – millimeter (DMIN): 39 mm
Functional width – millimeter (WF): 22 mm
Shank height – millimeter (H): 30 mm
Functional height – millimeter (HF): 15 mm
Functional length – millimeter (LF): 250 mm
Head length – millimeter (LH): 45 mm
Inclination angle (LAMS): -12
Orthogonal rake angle (GAMO): -6
Net weight – grams: 1453
Insert size: 16
ISO: A32S-PTFNR16
Shank width – millimeter (B): 30 mm
