PRAMET A32S-SCLCR 12-A

Product Code: A32S-SCLCR 12-A

$415.81$378.01 Ex. GST

Product Code: A32S-SCLCR 12-A SKU A32S-SCLCR 12-A Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

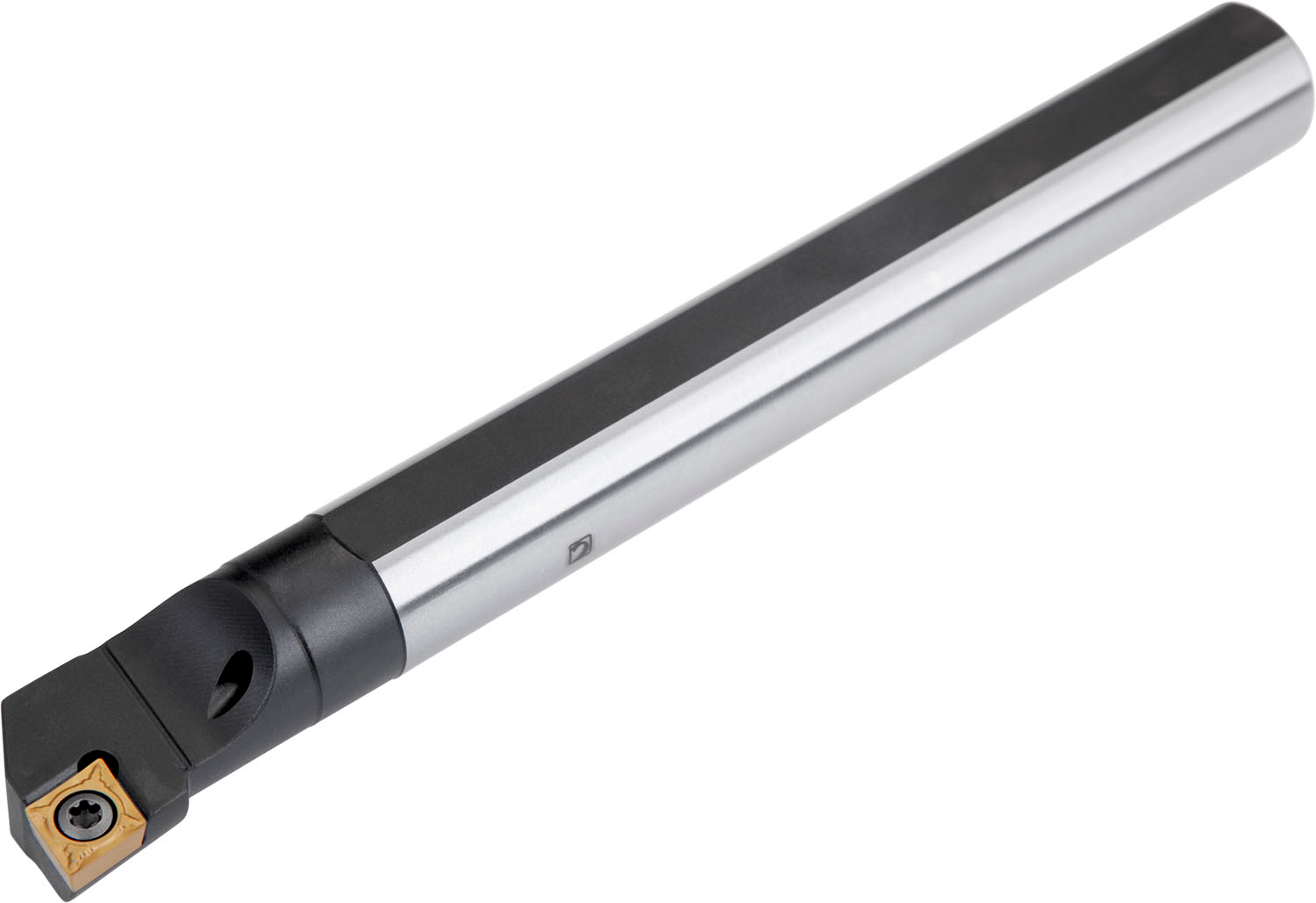

Screw clamp boring bar for holding a 80° rhombus positive insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation CC.. 1204.. ), right hand 95° side and end cutting with off-set shank, steel with coolant hole, 32mm diameter x 250mm long for taper boring and longitudinal boring with and without shoulder

Additional information

Weight 0.4037 kg
barcode
Additional Information

Description: Value
EAN number: 3603602920072
Product number (SAP): 84000847
Ordering code ANSI: A32S-SCLCR 12-A
Gross weight – grams: 1357.4
Connection diameter – millimeter (DCON MS): 32 mm
Minimum bore diameter – millimeter (DMIN): 40 mm
Functional width – millimeter (WF): 22 mm
Shank height – millimeter (H): 30 mm
Shank width – millimeter (B): 30 mm
Functional length – millimeter (LF): 250 mm
Coolant entry diameter – millimeter (CND): 8 mm
Inclination angle (LAMS): -10
Orthogonal rake angle (GAMO): 0
Net weight – grams: 1350
Insert size: 12
ISO: A32S-SCLCR12-A

Brand

PRAMET
