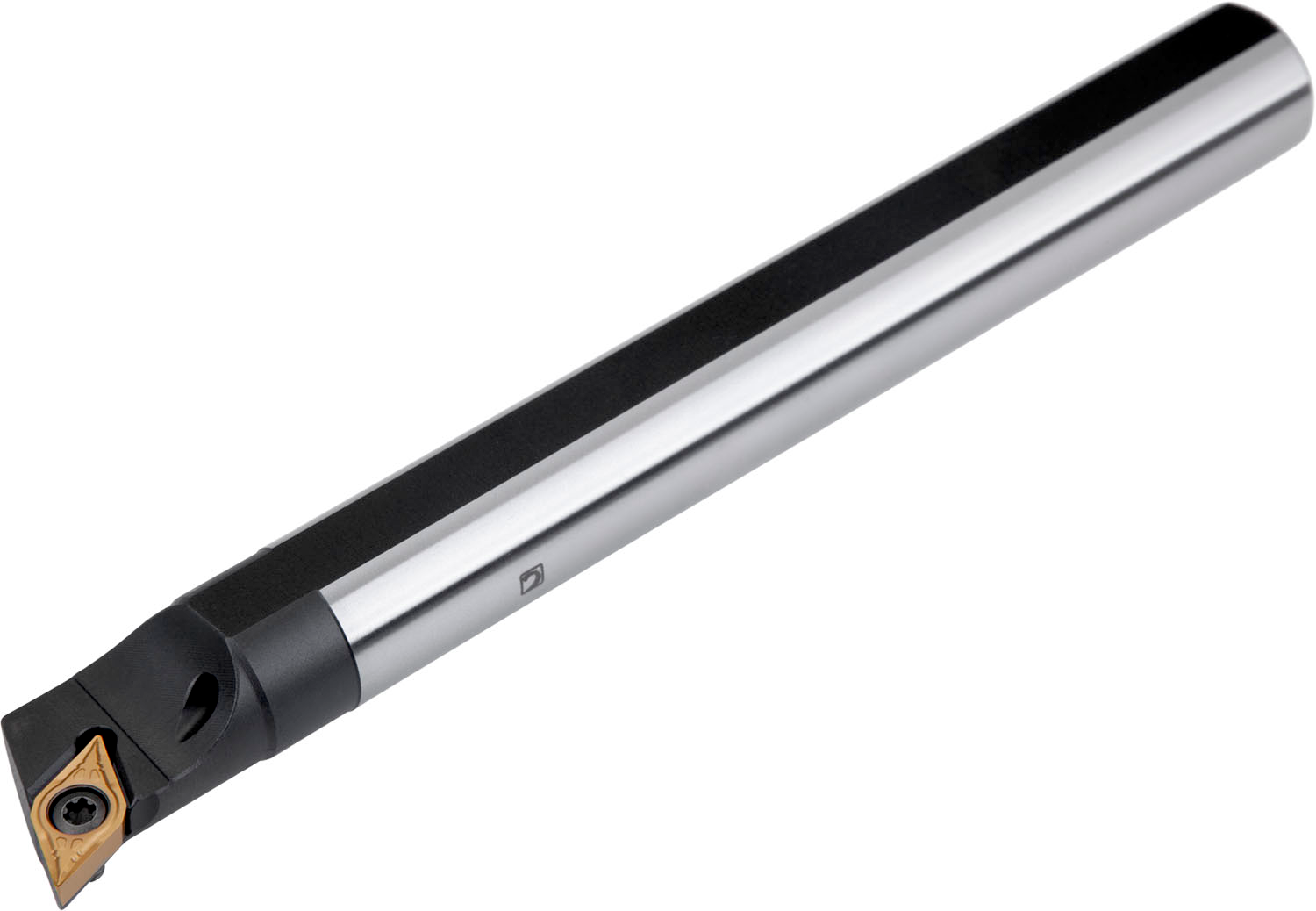

PRAMET A32S-SDQCR 11-A Internal Boring Bar

Description

Screw clamp boring bar for holding a 55° rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation DC.. 11T3.. ), right hand 107°30′ end cutting with off-set shank, steel with coolant hole, 32mm diameter x 250mm long for taper boring and longitudinal boring with and without shoulder

Additional information

Weight	0.4037 kg
barcode
Additional Information	Description: Value EAN number: 3603602920096 Product number (SAP): 84000849 Ordering code ANSI: A32S-SDQCR 11-A Gross weight – grams: 1326.2 Connection diameter – millimeter (DCON MS): 32 mm Minimum bore diameter – millimeter (DMIN): 40 mm Functional width – millimeter (WF): 22 mm Shank height – millimeter (H): 30 mm Shank width – millimeter (B): 30 mm Functional length – millimeter (LF): 250 mm Coolant entry diameter – millimeter (CND): 8 mm Inclination angle (LAMS): -10 Orthogonal rake angle (GAMO): 0 Net weight – grams: 1250 Insert size: 11 ISO: A32S-SDQCR11-A

Need Technical Advice?

Description

Additional information

Brand

PRAMET
