PRAMET A32T-DWLNR 08

Product Code: A32T-DWLNR 08

$481.53$437.75 Ex. GST

Product Code: A32T-DWLNR 08 SKU A32T-DWLNR 08 Categories , ,
PRAMET A32T-DWLNR 08

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

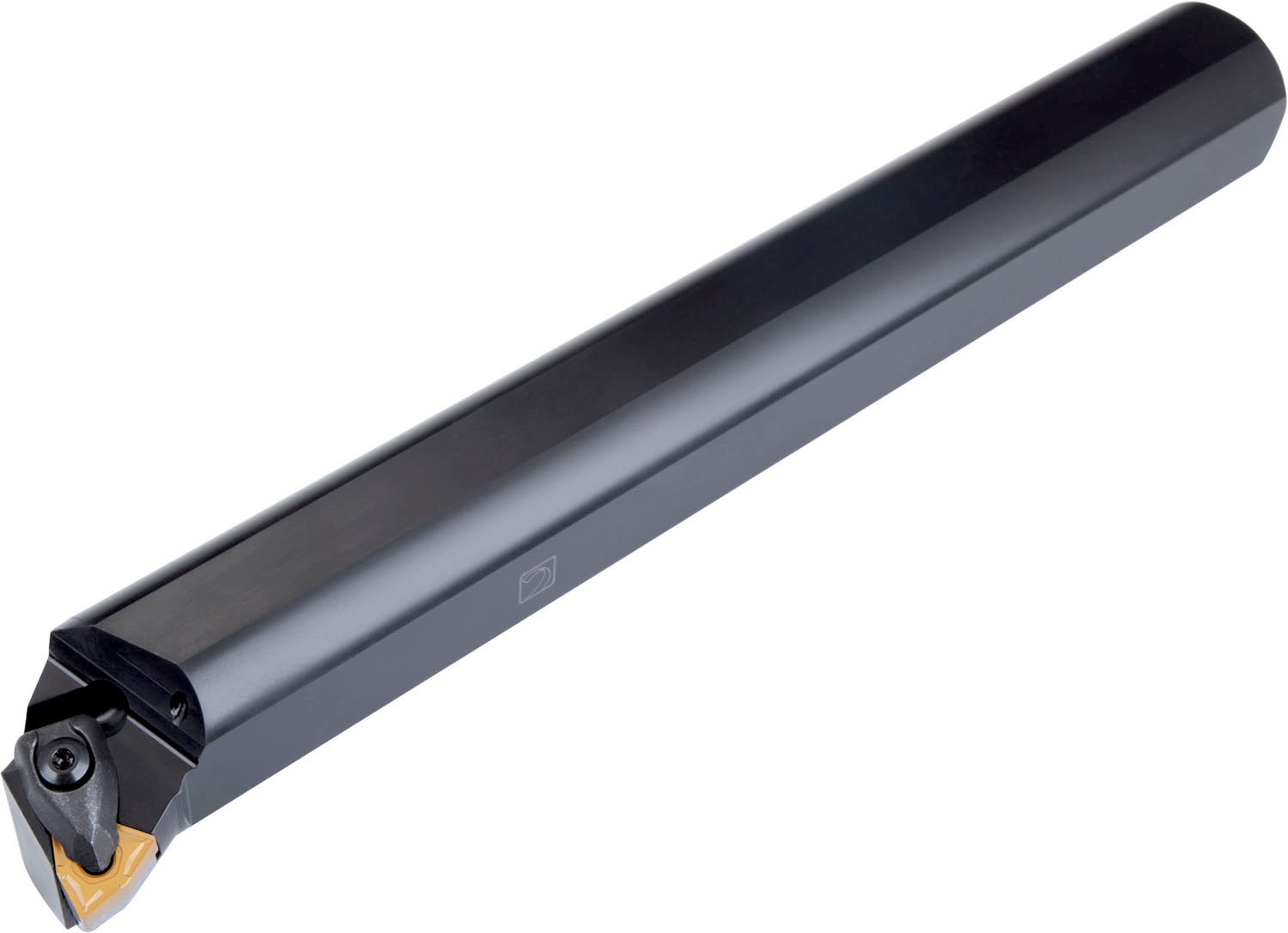

Double clamp boring bar for holding a 80° trigon negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation WN.. 0804.. ), right hand 95° side and end cutting with off-set shank, steel with coolant hole, 32mm diameter x 300mm long for taper boring and longitudinal boring with and without shoulder

Additional information

Weight 0.4675 kg
barcode
Additional Information

Description: Value
EAN number: 3603603105959
Product number (SAP): 86027012
Ordering code ANSI: A32T-DWLNR 08
Gross weight – grams: 1703.5
Connection diameter – millimeter (DCON MS): 32 mm
Minimum bore diameter – millimeter (DMIN): 40 mm
Functional width – millimeter (WF): 22 mm
Shank height – millimeter (H): 30 mm
Functional height – millimeter (HF): 15 mm
Functional length – millimeter (LF): 300 mm
Head length – millimeter (LH): 33 mm
Inclination angle (LAMS): -10
Orthogonal rake angle (GAMO): -6
Net weight – grams: 1703.5
Insert size: 08
ISO: A32T-DWLNR08

Brand

PRAMET
