PRAMET A32T-SVUCL 13 Turning holders internal

Product Code: A32T-SVUCL 13

$436.21$396.55 Ex. GST

Product Code: A32T-SVUCL 13 SKU A32T-SVUCL 13 Categories , ,
PRAMET A32T-SVUCL 13 Turning holders internal

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

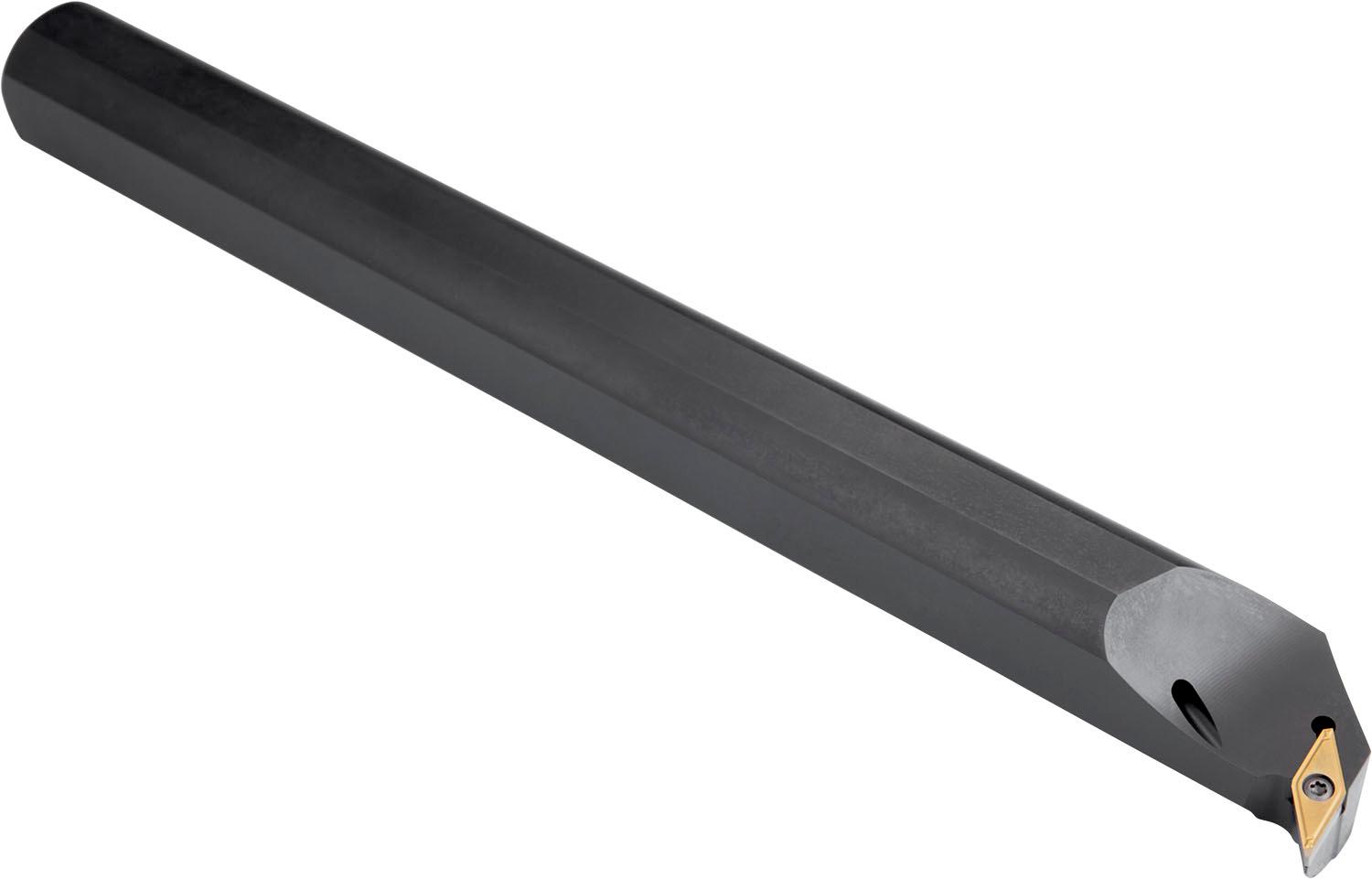

Screw clamp boring bar for holding a 35° rhombus positive insert with an inscribed circle diameter of 7.94mm, 3.18mm thick (ISO designation VC.. 1303.. ), left hand 93° end cutting with off-set shank, steel with coolant hole, 32mm diameter x 300mm long for single and multi-directional copy boring and back chamfering

Additional information

Weight 0.4235 kg
barcode
Additional Information

Description: Value
EAN number: 3603602960894
Product number (SAP): 86004003
Ordering code ANSI: A32T-SVUCL 13
Gross weight – grams: 1660.7
Connection diameter – millimeter (DCON MS): 32 mm
Minimum bore diameter – millimeter (DMIN): 40 mm
Functional width – millimeter (WF): 22 mm
Shank height – millimeter (H): 30 mm
Shank width – millimeter (B): 30 mm
Functional length – millimeter (LF): 300 mm
Inclination angle (LAMS): -1
Orthogonal rake angle (GAMO): 2
Net weight – grams: 1660.7
Insert size: 13
ISO: A32T-SVUCL13

Brand

PRAMET
