PRAMET A40T-DTFNR 22

Product Code: A40T-DTFNR 22

$539.31$490.28 Ex. GST

Product Code: A40T-DTFNR 22 SKU A40T-DTFNR 22 Categories , ,
PRAMET A40T-DTFNR 22

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

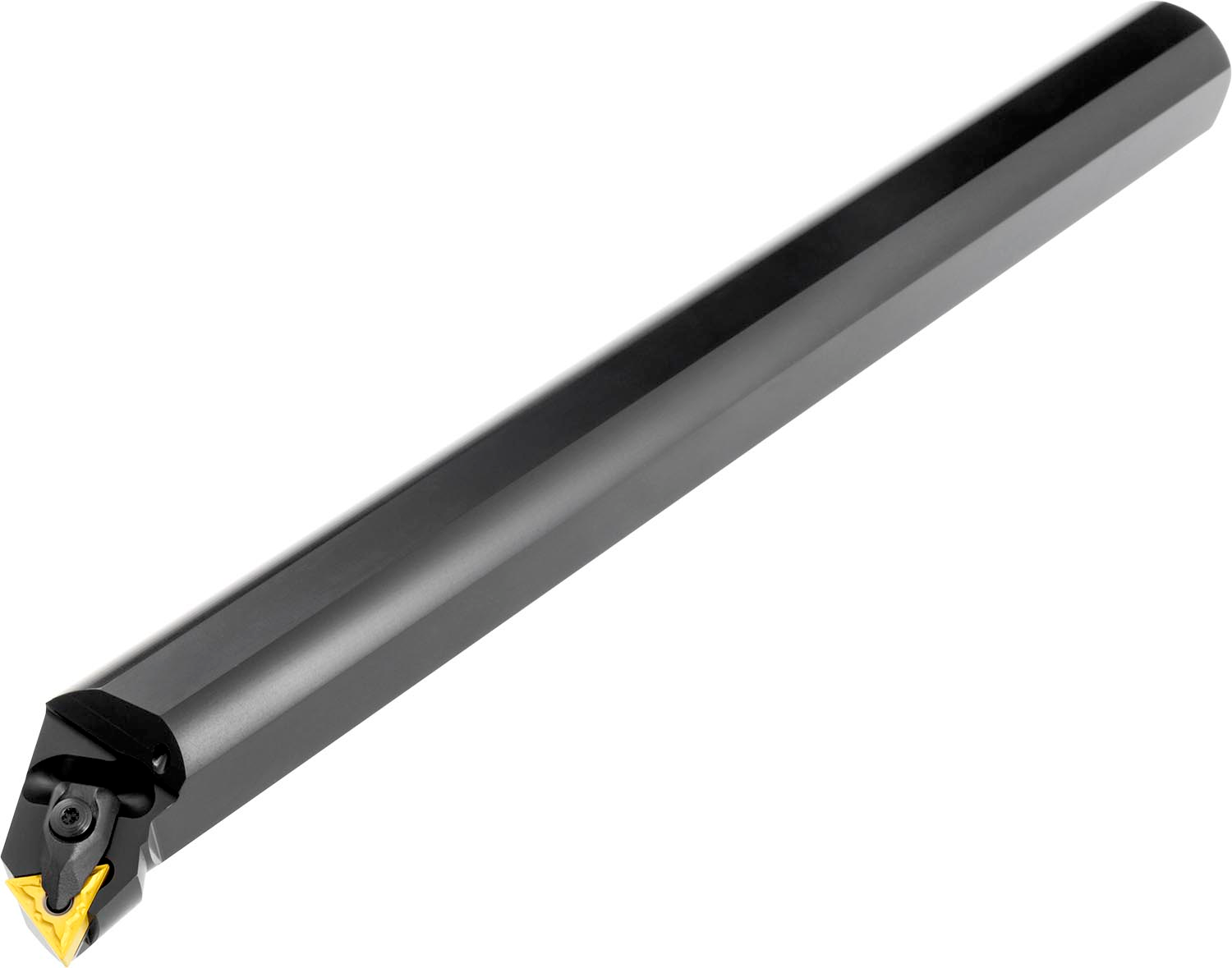

Double clamp boring bar for holding a triangular negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation TN.. 2204.. ), right hand 90° end cutting with off-set shank, steel with coolant hole, 40mm diameter x 300mm long for internal chamfering, taper boring and longitudinal boring without shoulder

Additional information

Weight 0.5236 kg
barcode
Additional Information

Description: Value
EAN number: 3603603106093
Product number (SAP): 86027026
Ordering code ANSI: A40T-DTFNR 22
Gross weight – grams: 2583
Connection diameter – millimeter (DCON MS): 40 mm
Minimum bore diameter – millimeter (DMIN): 50 mm
Functional width – millimeter (WF): 27 mm
Shank height – millimeter (H): 37 mm
Functional height – millimeter (HF): 18.5 mm
Functional length – millimeter (LF): 300 mm
Head length – millimeter (LH): 36 mm
Inclination angle (LAMS): -13
Orthogonal rake angle (GAMO): -6
Net weight – grams: 2583
Insert size: 22
ISO: A40T-DTFNR22

Brand

PRAMET
