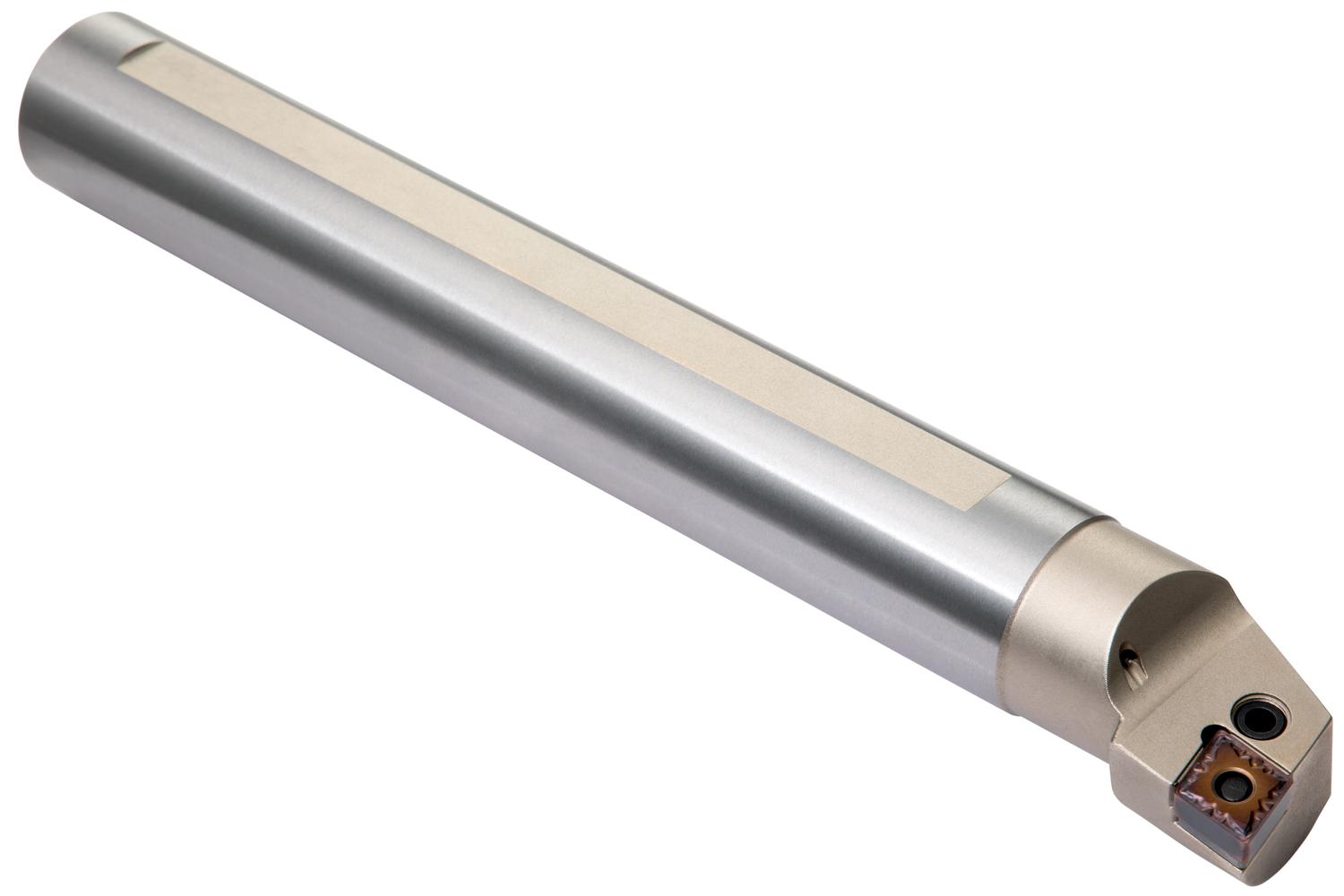

PRAMET A40T-PCLNL 12 Internal Boring Bar

Product Code: A40T-PCLNL 12

$521.18$473.80 Ex. GST

Product Code: A40T-PCLNL 12 SKU A40T-PCLNL 12 Categories , ,
PRAMET A40T-PCLNL 12 Internal Boring Bar

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Lever lock boring bar for holding a 80° rhombus negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation CN.. 1204.. ), left hand 95° side and end cutting with off-set shank, steel with coolant hole, 40mm diameter x 300mm long for taper boring and longitudinal boring with and without shoulder

Additional information

Weight 0.506 kg
barcode
Additional Information

Description: Value
EAN number: 3603602925077
Product number (SAP): 84001777
Ordering code ANSI: A40T-PCLNL 12
Gross weight – grams: 2687.7
Connection diameter – millimeter (DCON MS): 40 mm
Minimum bore diameter – millimeter (DMIN): 50 mm
Functional width – millimeter (WF): 27 mm
Shank height – millimeter (H): 38 mm
Functional length – millimeter (LF): 300 mm
Inclination angle (LAMS): -12
Orthogonal rake angle (GAMO): -6
Net weight – grams: 2579
Insert size: 12
ISO: A40T-PCLNL12
Shank width – millimeter (B): 38 mm

Brand

PRAMET
