PRAMET A50U-DDUNR 15

Product Code: A50U-DDUNR 15

$654.87$595.34 Ex. GST

Product Code: A50U-DDUNR 15 SKU A50U-DDUNR 15 Categories , ,
PRAMET A50U-DDUNR 15

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

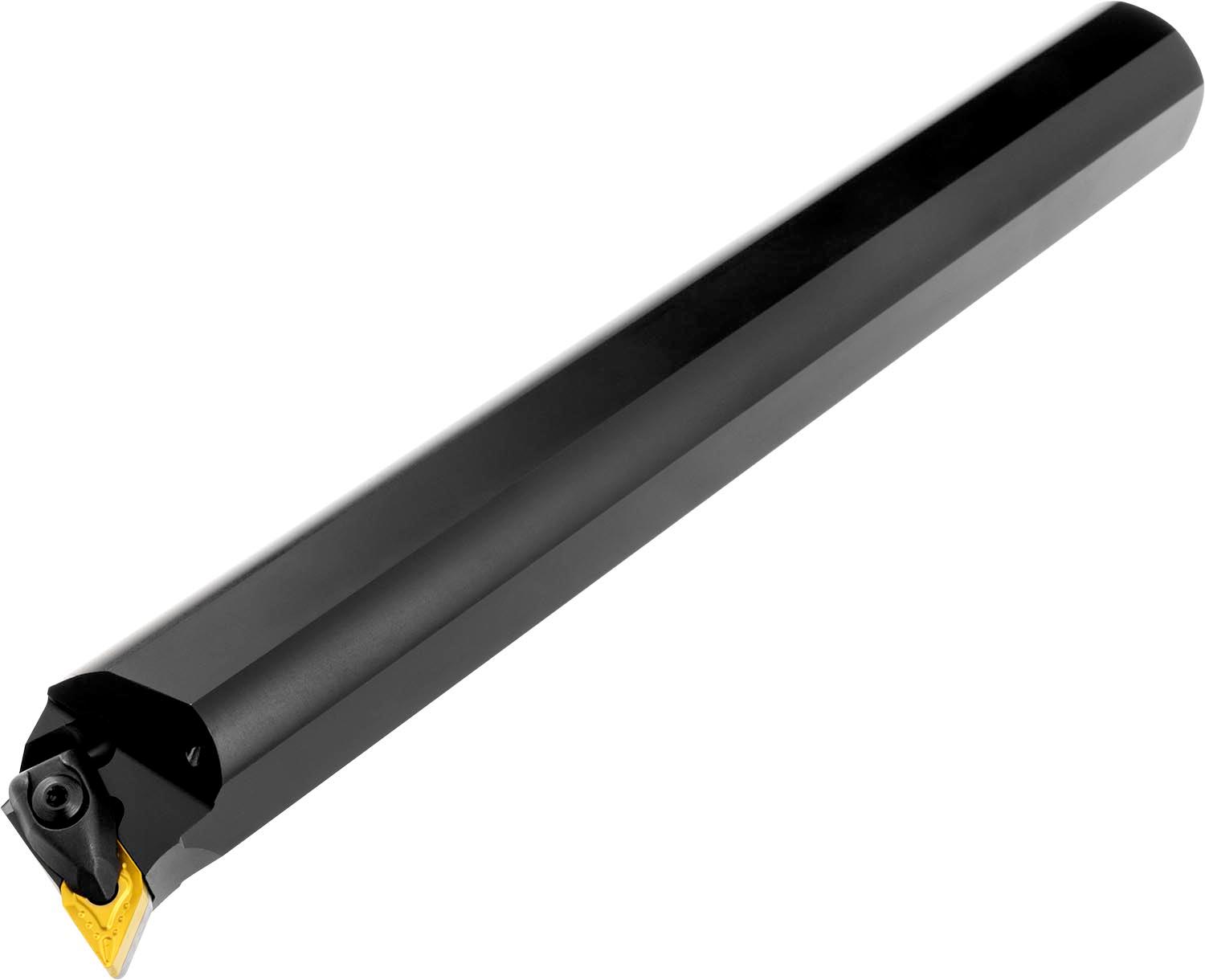

Double clamp boring bar for holding a 55° rhombus negative insert with an inscribed circle diameter of 12.7mm, 6.35mm thick (ISO designation DN.. 1506.. ), right hand 93° end cutting with off-set shank, steel with coolant hole, 50mm diameter x 350mm long for internal chamfering, taper boring, single and multi-directional copy boring and longitudinal boring with and without shoulder

Additional information

Weight 0.6358 kg
barcode
Additional Information

Description: Value
EAN number: 3603603106116
Product number (SAP): 86026895
Ordering code ANSI: A50U-DDUNR 15
Gross weight – grams: 5232.5
Connection diameter – millimeter (DCON MS): 50 mm
Minimum bore diameter – millimeter (DMIN): 63 mm
Functional width – millimeter (WF): 35 mm
Shank height – millimeter (H): 47 mm
Functional height – millimeter (HF): 23.5 mm
Functional length – millimeter (LF): 350 mm
Head length – millimeter (LH): 39 mm
Inclination angle (LAMS): -8
Orthogonal rake angle (GAMO): -6
Net weight – grams: 5232.5
Insert size: 15
ISO: A50U-DDUNR15

Brand

PRAMET
