PRAMET A50U-DWLNR 08

Product Code: A50U-DWLNR 08

$654.87$595.34 Ex. GST

Product Code: A50U-DWLNR 08 SKU A50U-DWLNR 08 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

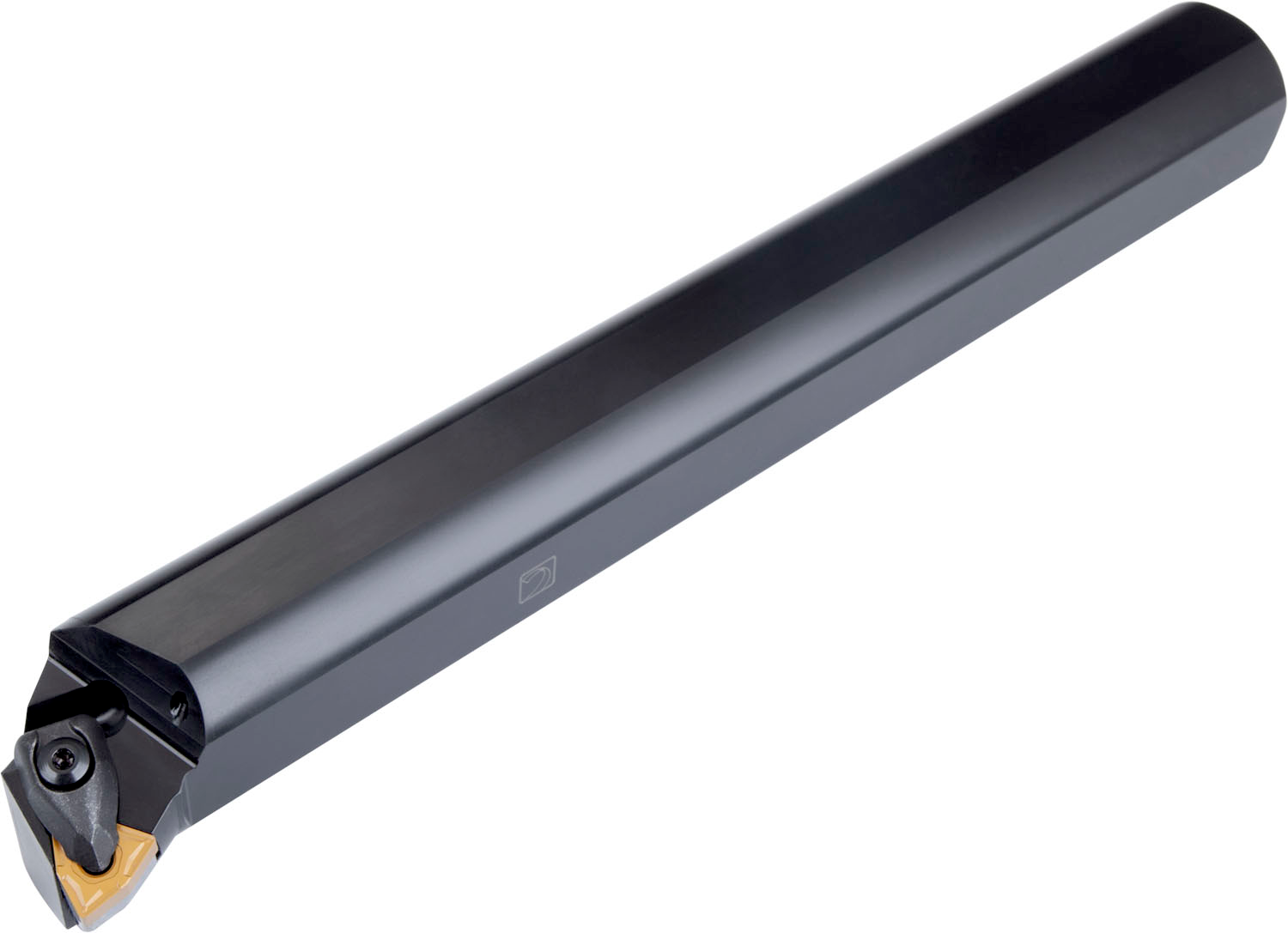

Double clamp boring bar for holding a 80° trigon negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation WN.. 0804.. ), right hand 95° side and end cutting with off-set shank, steel with coolant hole, 50mm diameter x 350mm long for taper boring and longitudinal boring with and without shoulder

Additional information

Weight 0.6358 kg
barcode
Additional Information

Description: Value
EAN number: 3603603106130
Product number (SAP): 86026897
Ordering code ANSI: A50U-DWLNR 08
Gross weight – grams: 5239
Connection diameter – millimeter (DCON MS): 50 mm
Minimum bore diameter – millimeter (DMIN): 63 mm
Functional width – millimeter (WF): 35 mm
Shank height – millimeter (H): 47 mm
Functional height – millimeter (HF): 23.5 mm
Functional length – millimeter (LF): 350 mm
Head length – millimeter (LH): 39 mm
Inclination angle (LAMS): -11
Orthogonal rake angle (GAMO): -6
Net weight – grams: 5239
Insert size: 08
ISO: A50U-DWLNR08

Brand

PRAMET
