PRAMET A50U-PSKNR 19 Internal Boring Bar

Product Code: A50U-PSKNR 19

$633.35$575.77 Ex. GST

Product Code: A50U-PSKNR 19 SKU A50U-PSKNR 19 Categories , ,

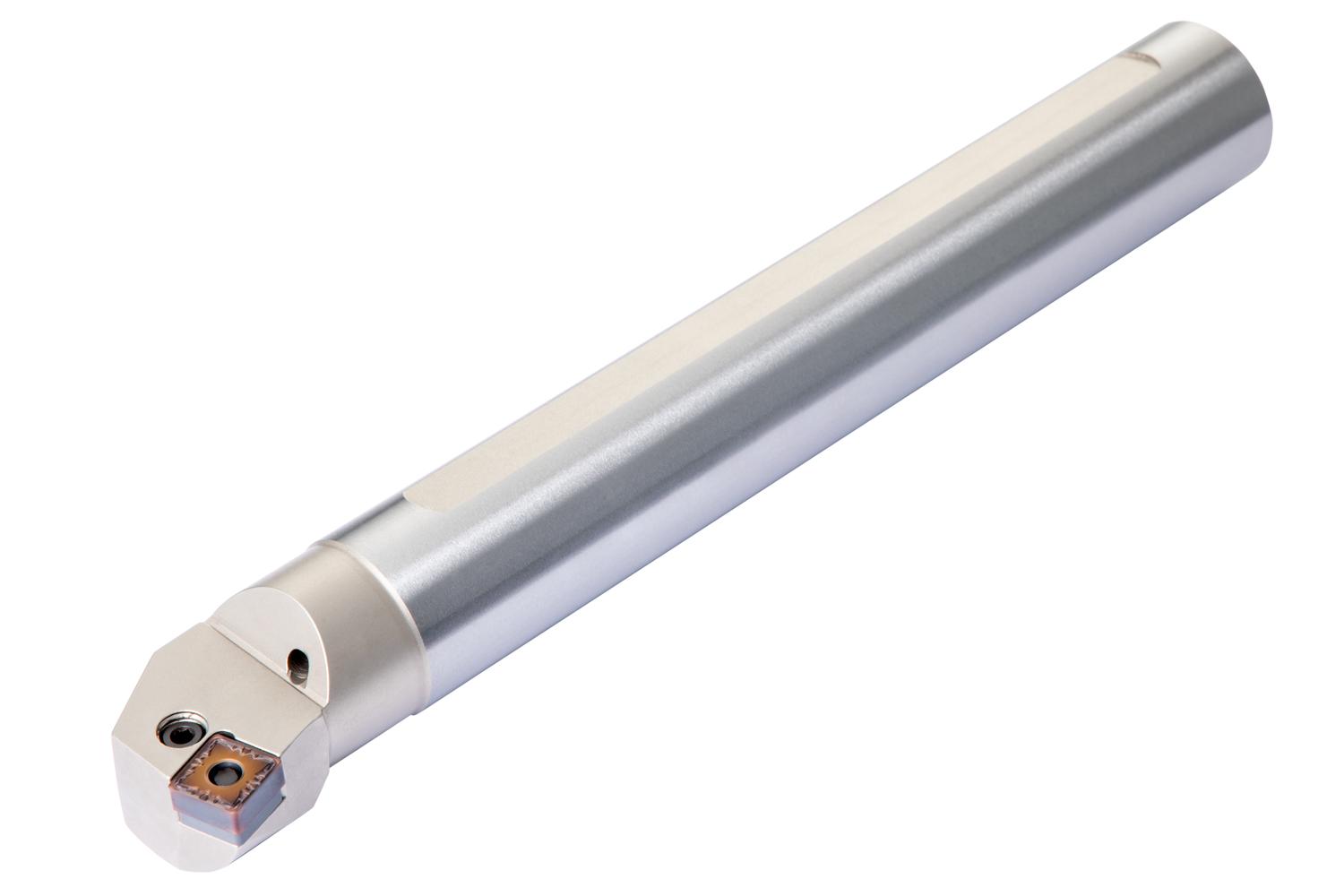

PRAMET A50U-PSKNR 19 Internal Boring Bar

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Lever lock boring bar for holding a square negative insert with an inscribed circle diameter of 19.05mm, 6.35mm thick (ISO designation SN.. 1906.. ), right hand 75° end cutting with off-set shank, steel with coolant hole, 50mm diameter x 350mm long for taper boring and longitudinal boring without shoulder

Additional information

Weight 0.6149 kg
barcode
Additional Information

Description: Value
EAN number: 3603602925671
Product number (SAP): 84001882
Ordering code ANSI: A50U-PSKNR 19
Gross weight – grams: 5200
Connection diameter – millimeter (DCON MS): 50 mm
Minimum bore diameter – millimeter (DMIN): 63 mm
Functional width – millimeter (WF): 35 mm
Shank height – millimeter (H): 47 mm
Functional length – millimeter (LF): 350 mm
Inclination angle (LAMS): -12
Orthogonal rake angle (GAMO): -6
Net weight – grams: 5200
Insert size: 19
ISO: A50U-PSKNR19
Shank width – millimeter (B): 48.5 mm

Brand

PRAMET
