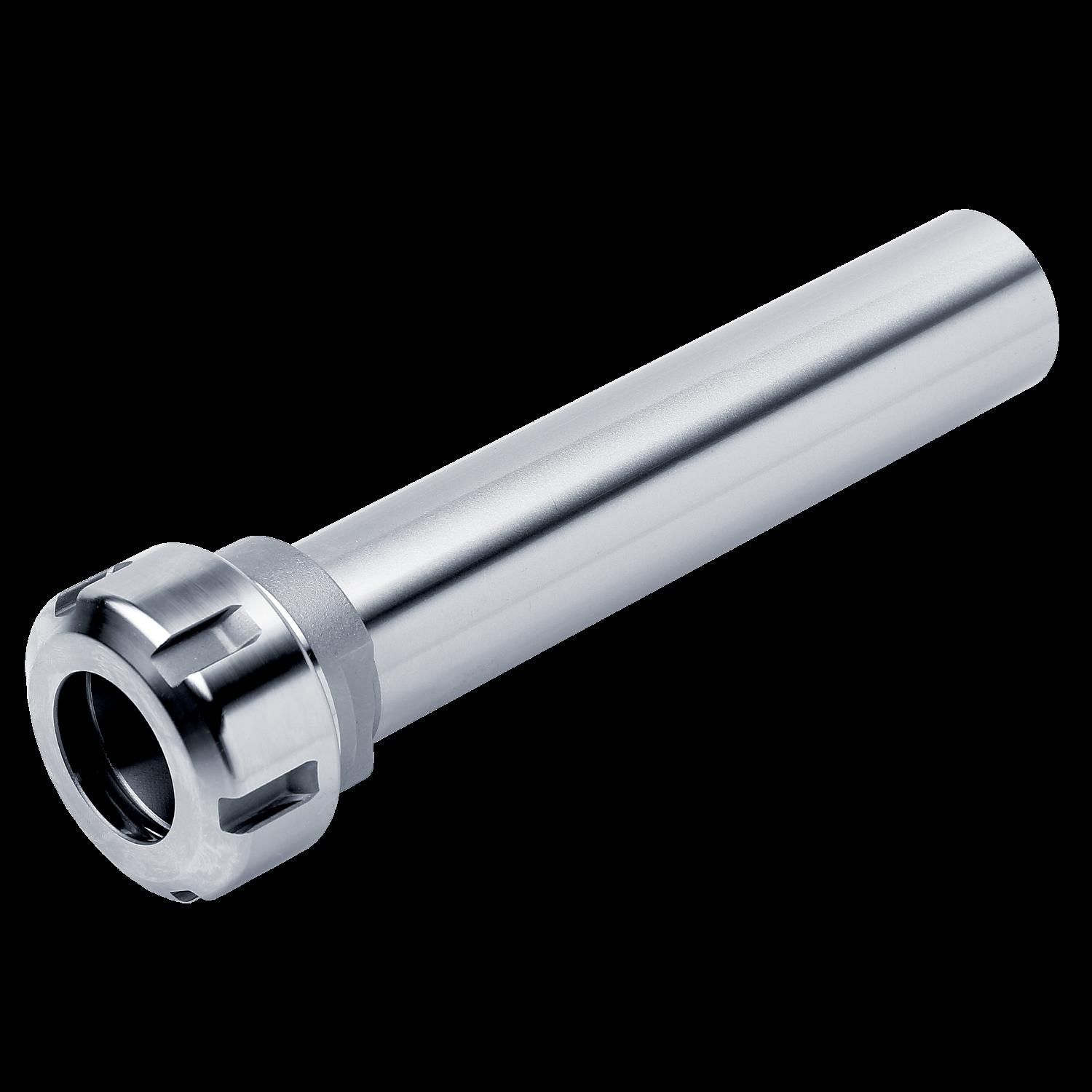

PRAMET AC.16-CC.ER16.150 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603603207011
Product number (SAP): 86029461
ISO: AC.16-CC.ER16.150
Ordering code ANSI: AC.16-CC.ER16.150
Net weight – grams: 277
Gross weight – grams: 337.8
Body diameter – millimeters (BD1): 32 mm
Connection diameter – millimeter (DCON MS): 16 mm
Connection diameter minimum workpiece side – millimeters (DCONN WS): 1 mm
Connection diameter maximum workpiece side – millimeters (DCONX WS): 10 mm
Connection size Value (CSIZE): ER16
Minimum overhang – millimeters (OHN): 30 mm
Shank length – millimeter (LS): 150 mm
