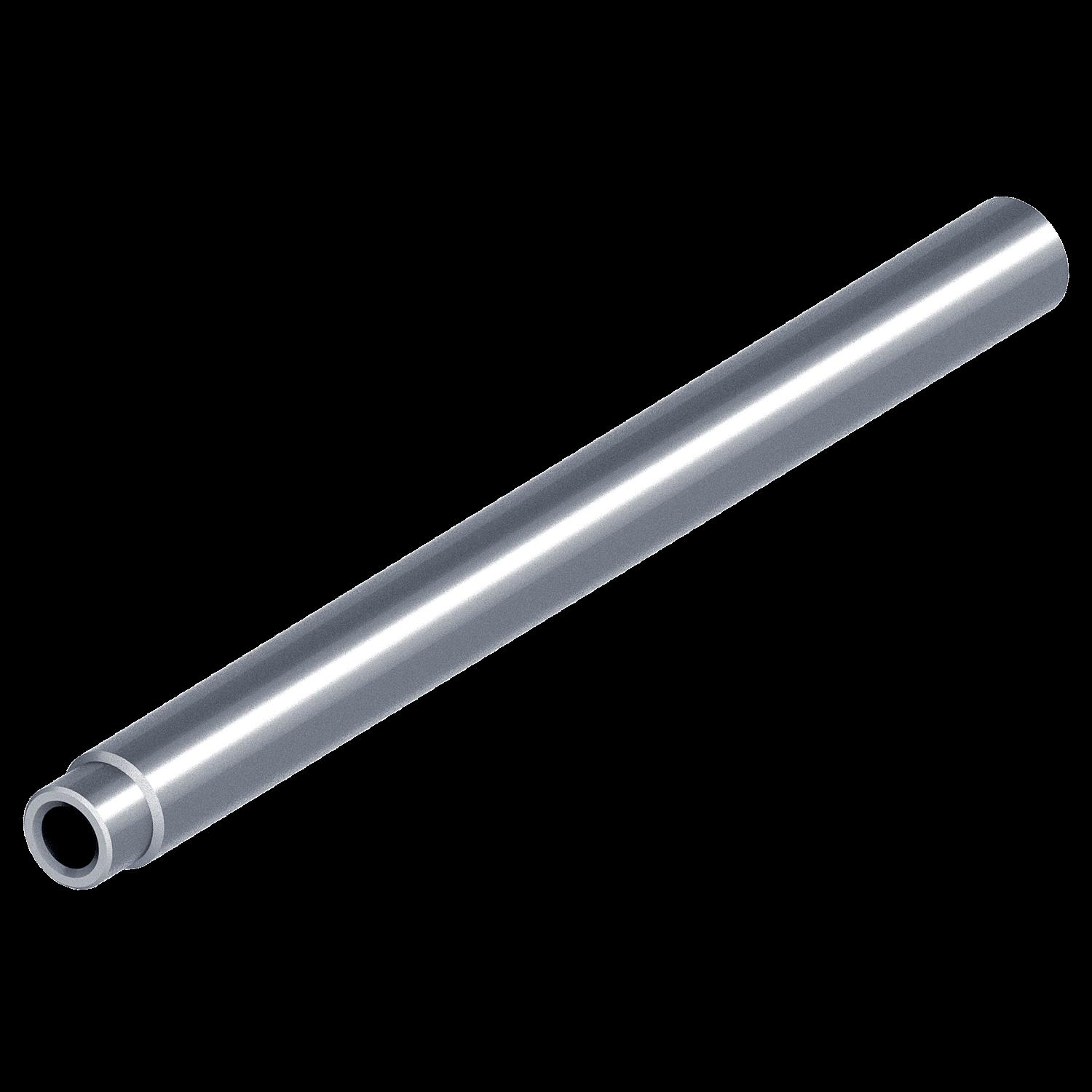

PRAMET AC.16-IHA.M8.200 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603604019729
Product number (SAP): 86041642
ISO: AC.16-IHA.M8.200
Ordering code ANSI: AC.16-IHA.M8.200
Net weight – grams: 282
Gross weight – grams: 296.9
Body diameter – millimeter (BD): 14 mm
Clamping length maximum – millimeters (LSCX): 10 mm
Connection diameter – millimeter (DCON MS): 16 mm
Connection diameter tolerance machine side (TCDCONMS): h6
Connection text machine side (CTMS): AC16
Connection text workpiece side (CTWS): M8
Overall length – millimeter (OAL): 200 mm
