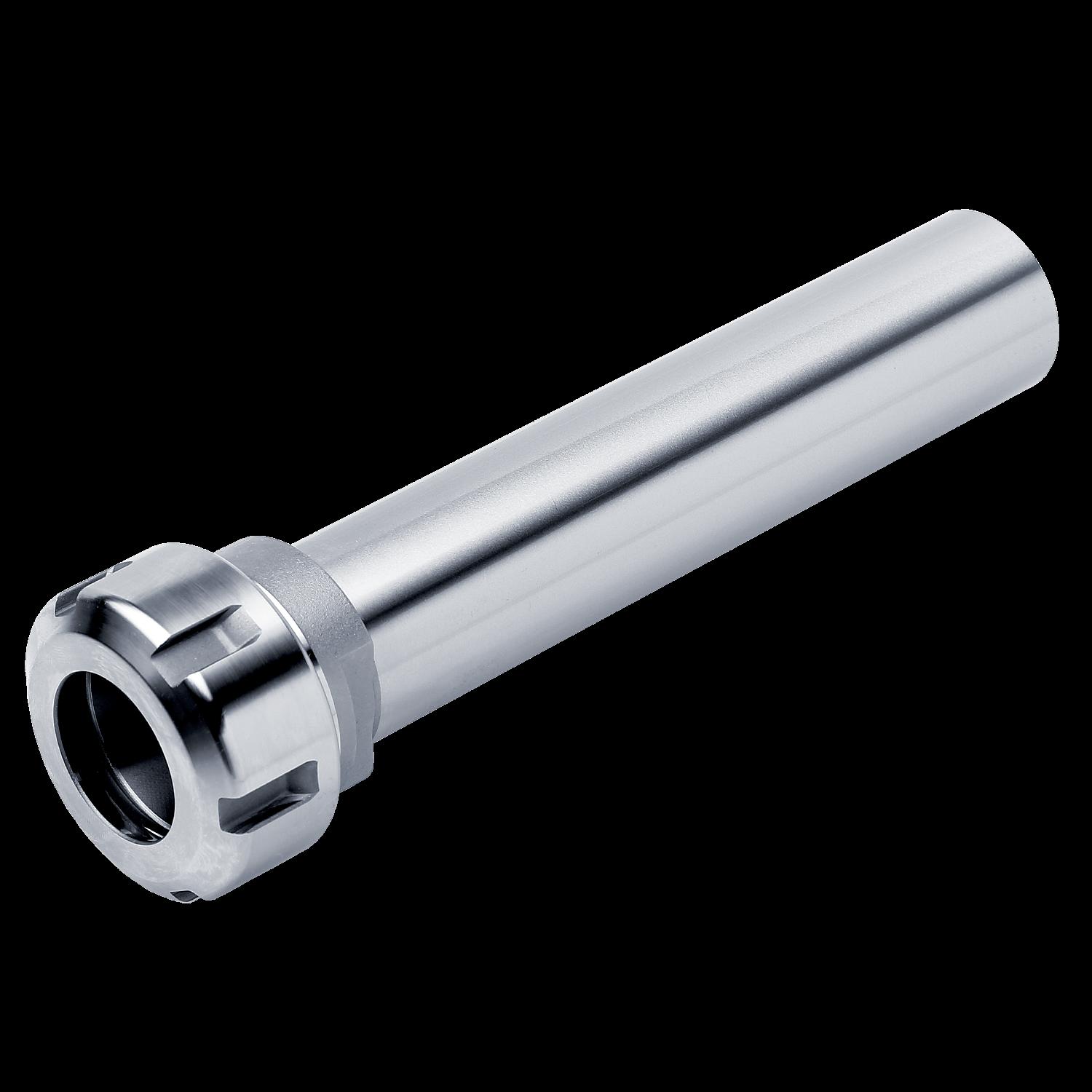

PRAMET AC.20-CC.ER25.150 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603603207028
Product number (SAP): 86029462
ISO: AC.20-CC.ER25.150
Ordering code ANSI: AC.20-CC.ER25.150
Net weight – grams: 506
Gross weight – grams: 551.8
Body diameter – millimeters (BD1): 42 mm
Connection diameter – millimeter (DCON MS): 20 mm
Connection diameter minimum workpiece side – millimeters (DCONN WS): 1 mm
Connection diameter maximum workpiece side – millimeters (DCONX WS): 16 mm
Connection size Value (CSIZE): ER25
Minimum overhang – millimeters (OHN): 40 mm
Shank length – millimeter (LS): 150 mm
