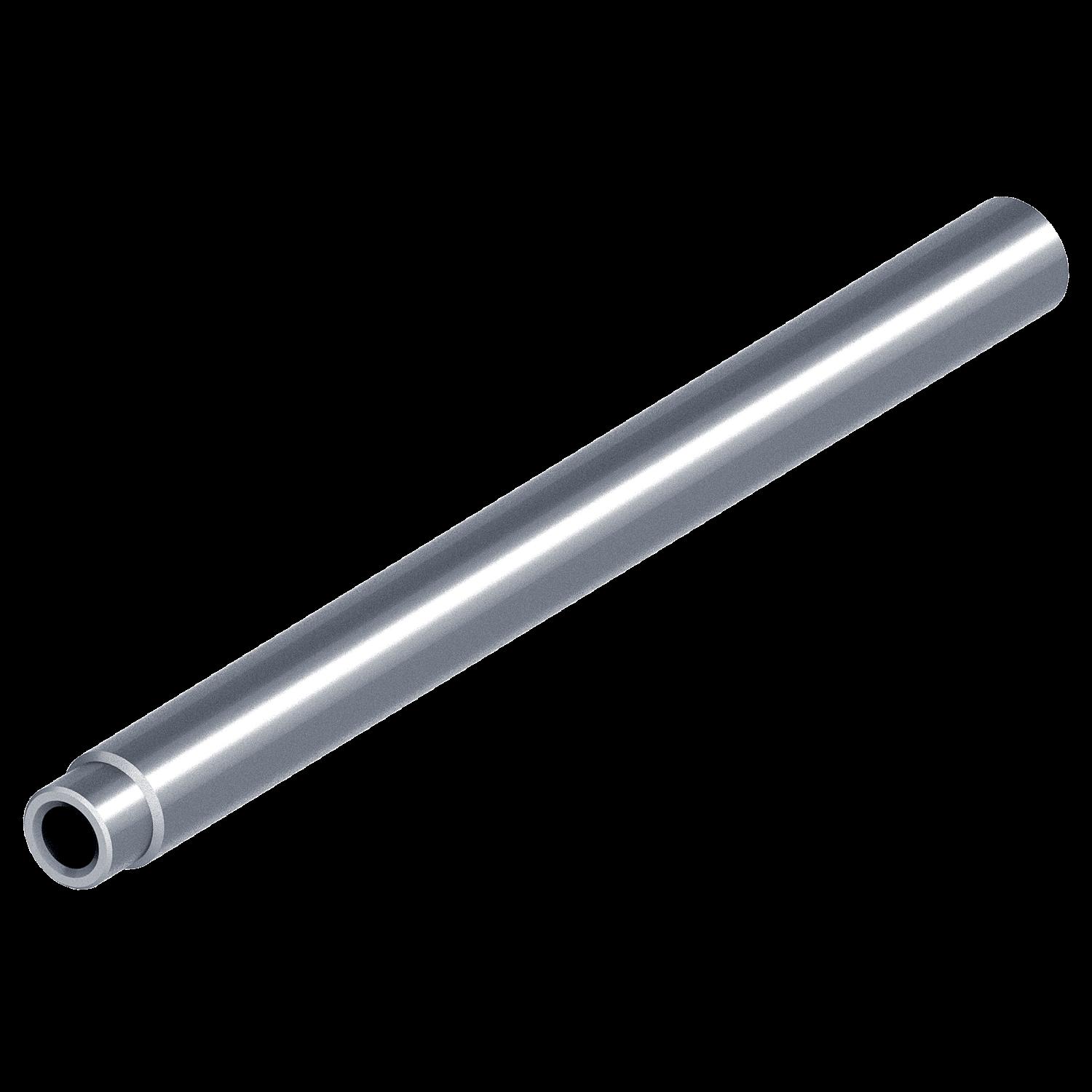

PRAMET AC.20-IHA.M10.160 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603604019736
Product number (SAP): 86041643
ISO: AC.20-IHA.M10.160
Ordering code ANSI: AC.20-IHA.M10.160
Net weight – grams: 304
Gross weight – grams: 304.2
Body diameter – millimeter (BD): 18 mm
Clamping length maximum – millimeters (LSCX): 50 mm
Connection diameter – millimeter (DCON MS): 20 mm
Connection diameter tolerance machine side (TCDCONMS): h6
Connection text machine side (CTMS): AC20
Connection text workpiece side (CTWS): M10
Overall length – millimeter (OAL): 160 mm
