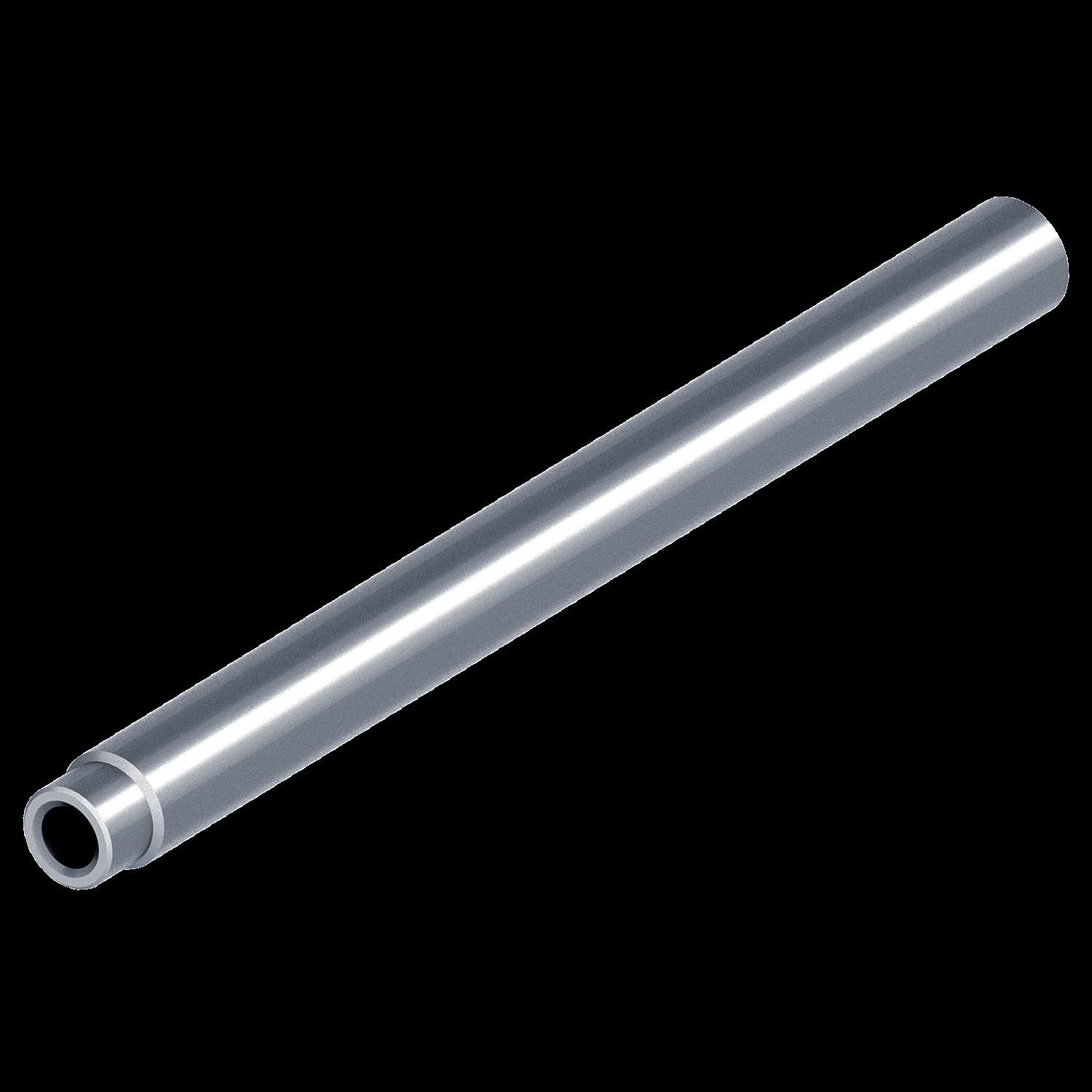

PRAMET AC.25-IHA.M12.250 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603604019767
Product number (SAP): 86041646
ISO: AC.25-IHA.M12.250
Ordering code ANSI: AC.25-IHA.M12.250
Net weight – grams: 860
Gross weight – grams: 896.3
Body diameter – millimeter (BD): 23 mm
Clamping length maximum – millimeters (LSCX): 15 mm
Connection diameter – millimeter (DCON MS): 25 mm
Connection diameter tolerance machine side (TCDCONMS): h6
Connection text machine side (CTMS): AC25
Connection text workpiece side (CTWS): M12
Overall length – millimeter (OAL): 250 mm
