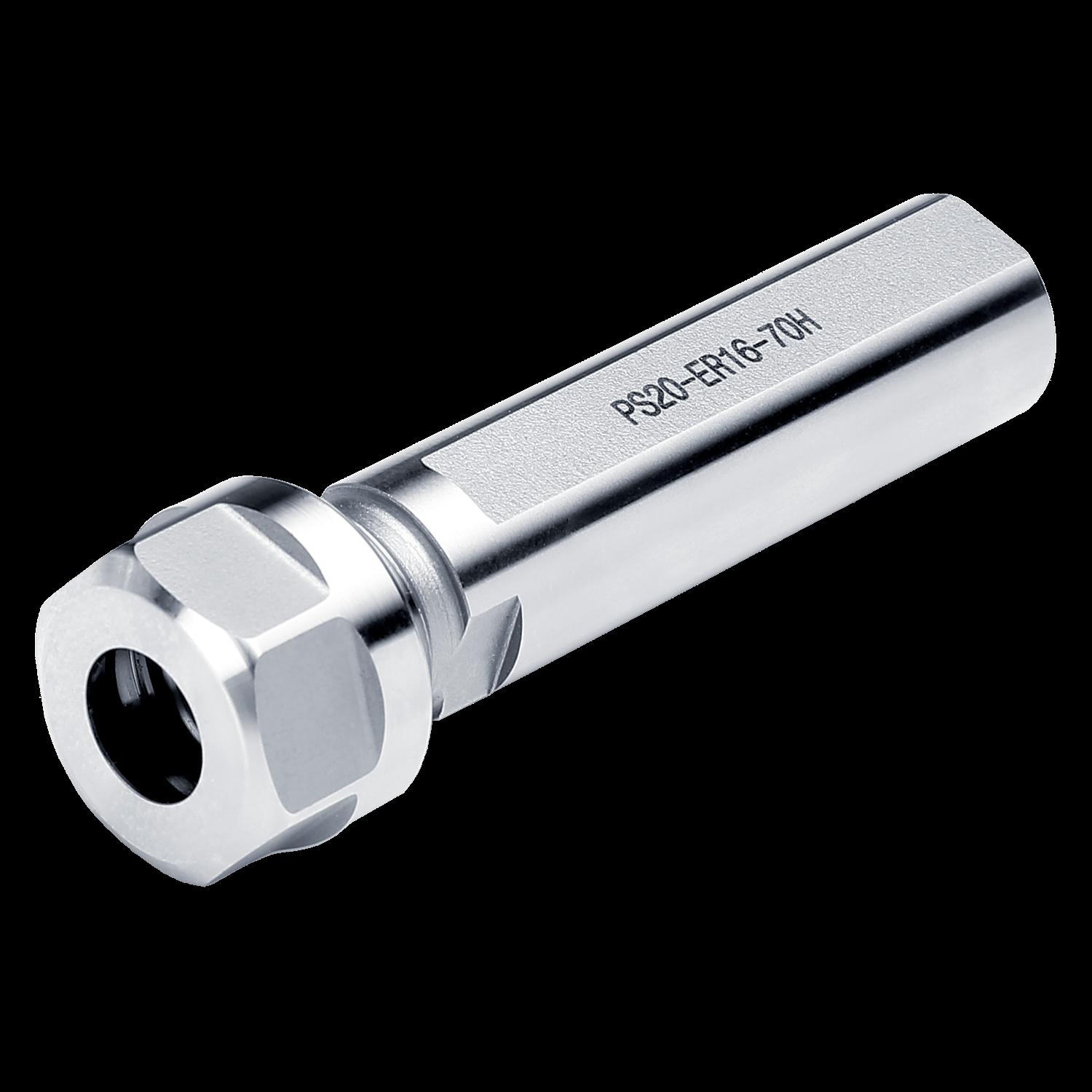

PRAMET ACF.20-CC.ER16.70.HX Tooling system

Product Code: ACF.20-CC.ER16.70.HX

$246.99$224.54 Ex. GST

Product Code: ACF.20-CC.ER16.70.HX SKU ACF.20-CC.ER16.70.HX Categories CUTTING TOOLS (HSS & Carbide), Holding, N1 - Tooling system

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Cylindrical Shank with Flat – Hexagonal Nut Collet Chuck – ER

Weight	0.2398 kg
barcode
Additional Information	Description: Value Brand Name: Dormer Pramet EAN number: 3603603207097 Product number (SAP): 86029469 ISO: ACF.20-CC.ER16.70.HX Ordering code ANSI: ACF.20-CC.ER16.70.HX Net weight – grams: 241 Gross weight – grams: 241 Body diameter – millimeters (BD1): 28 mm Connection diameter – millimeter (DCON MS): 20 mm Connection size Value (CSIZE): ER16 Overall length – millimeter (OAL): 96 mm Shank length – millimeter (LS): 70 mm
