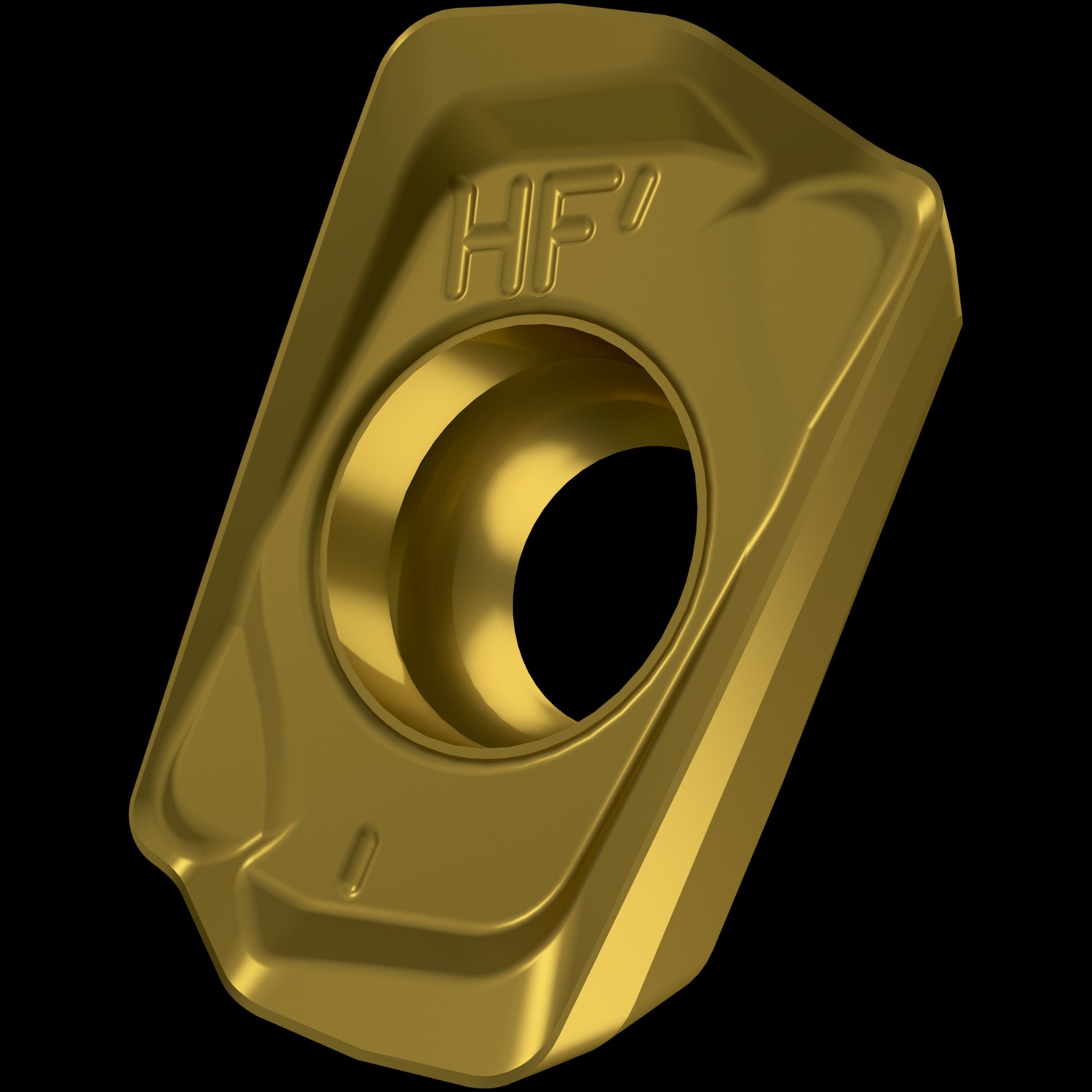

PRAMET ADEX 070206SR-HF:M6330 Milling - other and drilling inserts clamped by screw

Description

Single-sided milling insert ADEX 0702, 85° parallelogram and high-feed design for a maximum depth of cut of 0.3mm, with 0.6mm corner radius, an indexing accuracy according to ISO-tolerance class-E and HF geometry with rounded cutting edges and facet, M6330 PVD coated WC-Co carbide within ISO-grade range P20 -P35 for machining of steel with shoulder mills SAD07D

Additional information

Weight	0.0263 kg
barcode
Additional Information	Description: Value EAN number: 3603603517196 Product number (SAP): 80031168 Ordering code ANSI: ADEX 070206SR-HF:M6330 Gross weight – grams: 0.562 Insert width – millimeter (W1): 4.439 mm Fixing hole diameter – millimeter (D1): 2.2 mm Cutting edge length – millimeter (L): 6.45 mm Insert thickness – millimeter (S): 2.48 mm Grade: M6330 Corner radius – millimeter (RE): 0.6 mm Insert Clearance Code and Angle: D 15° Insert size: 07 Insert Type: X Chipbreaker manufacturer's designation (CBMD): HF Insert shape code (SC): A – parallelogram 85° included angle ISO: ADEX070206SR-HF:M6330

PRAMET ADEX 070206SR-HF:M6330 Milling – other and drilling inserts clamped by screw

Need Technical Advice?

Description

Additional information

Brand

PRAMET
