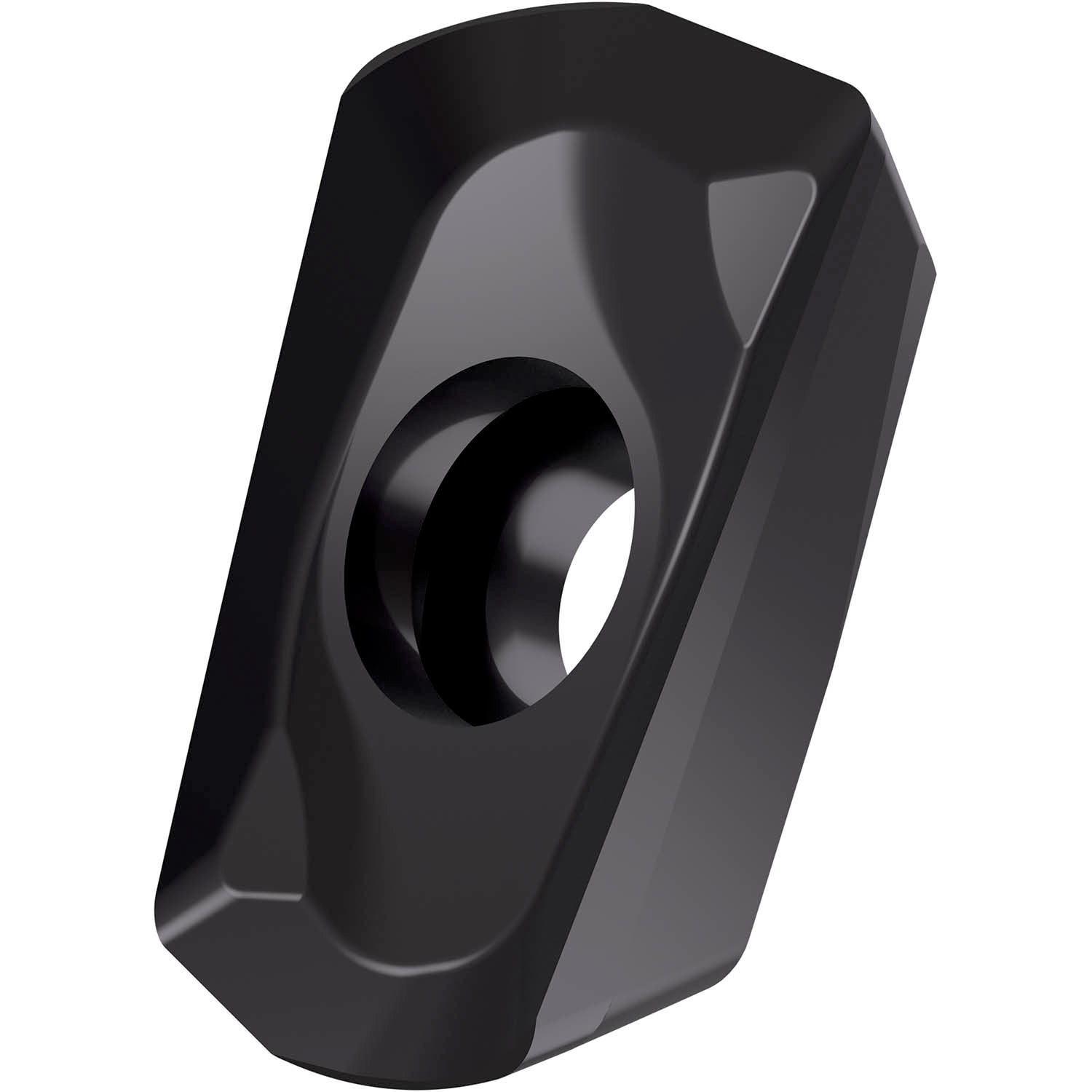

PRAMET ADEX 11T308SR-HF:8215 Milling – other and drilling inserts clamped by screw

Product Code: ADEX 11T308SR-HF:8215

$31.04$28.22 Ex. GST

Product Code: ADEX 11T308SR-HF:8215 SKU ADEX 11T308SR-HF:8215 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert ADEX 11T3, 85° parallelogram and high-feed design for a maximum depth of cut of 0.6mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-E and HF geometry with rounded cutting edges and facet, 8215 PVD coated fine grained WC-Co carbide within ISO-grade range P10 -P20 for machining of steel with shoulder mills SAD11E

Additional information

Weight 0.0301 kg
barcode
Additional Information

Description: Value
EAN number: 3603602993205
Product number (SAP): 80024793
Ordering code ANSI: ADEX 11T308SR-HF:8215
Gross weight – grams: 1.978
Insert width – millimeter (W1): 6.45 mm
Fixing hole diameter – millimeter (D1): 2.9 mm
Cutting edge length – millimeter (L): 10.67 mm
Insert thickness – millimeter (S): 3.82 mm
Grade: 8215
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: D 15°
Insert size: 11
Insert Type: X
Chipbreaker manufacturer's designation (CBMD): HF
Insert shape code (SC): A – parallelogram 85° included angle
ISO: ADEX11T308SR-HF:8215

Brand

PRAMET
